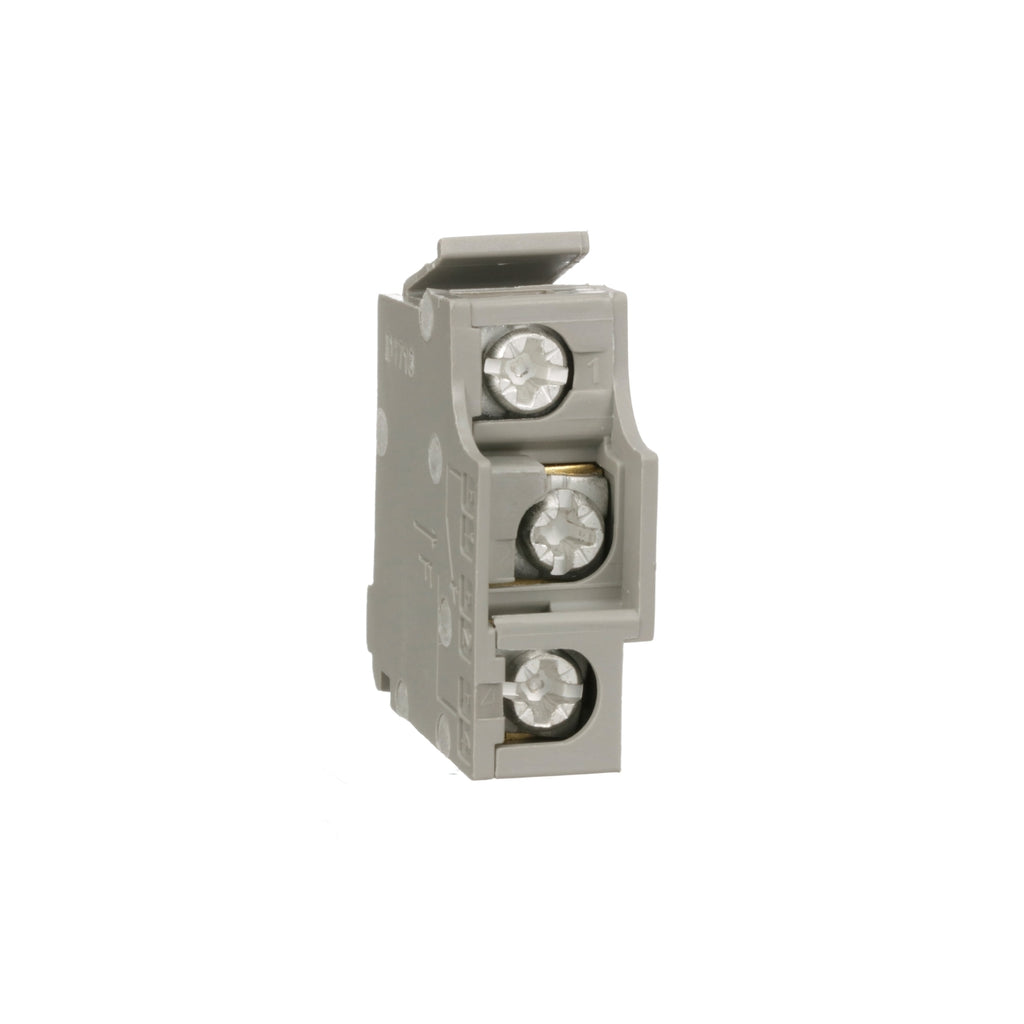

S29450 - Schneider Electric - Square D Auxiliary Switch
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This part provides auxiliary contacts used in PowerPacT H, J, L, M, P, and R circuit breakers. It has a standard minimum load of 100mA at 24V. This auxiliary switch complies with UL, CSA, and IEC standards.
GENERAL SPECIFICATIONS
| Main | |
| Range of Product | PowerPact H |
| PowerPact J | |
| PowerPact L | |
| PowerPact M | |
| PowerPact P | |
| PowerPact R | |
| Product or Component Type | Auxiliary switch |
| Accessory / separate part category | Electrical accessory |
| Circuit breaker name | PowerPact M or P |
| Circuit breaker type | Standard |
| Complementary | |
| Width | 0.496 in (12.598 mm) |
| Depth | 1.19 in (30.23 mm) |
| Height | 1.34 in (34.04 mm) |
| Environment | |
| Product Certifications | UL |
| IEC | |
| CSA | |
| NEMA | |
| Ordering and shipping details | |
| Category | US10DE201250 |
| Discount Schedule | 0DE2 |
| GTIN | 7.85902E+11 |
| Returnability | Yes |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.700 in (1.778 cm) |
| Package 1 Width | 2.800 in (7.112 cm) |
| Package 1 Length | 4.400 in (11.176 cm) |
| Package weight(Lbs) | 1.440 oz (40.823 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 8.500 in (21.590 cm) |
| Package 2 Width | 12.250 in (31.115 cm) |
| Package 2 Length | 20.000 in (50.800 cm) |
| Package 2 Weight | 9.090 lb(US) (4.123 kg) |
