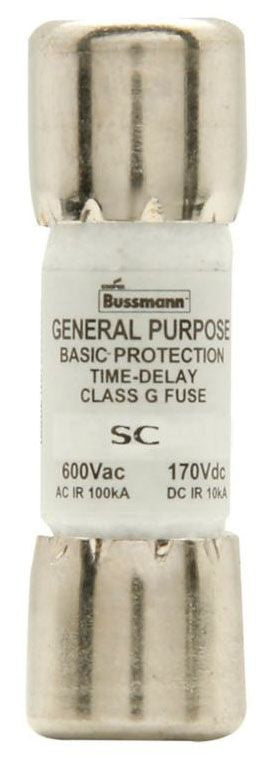

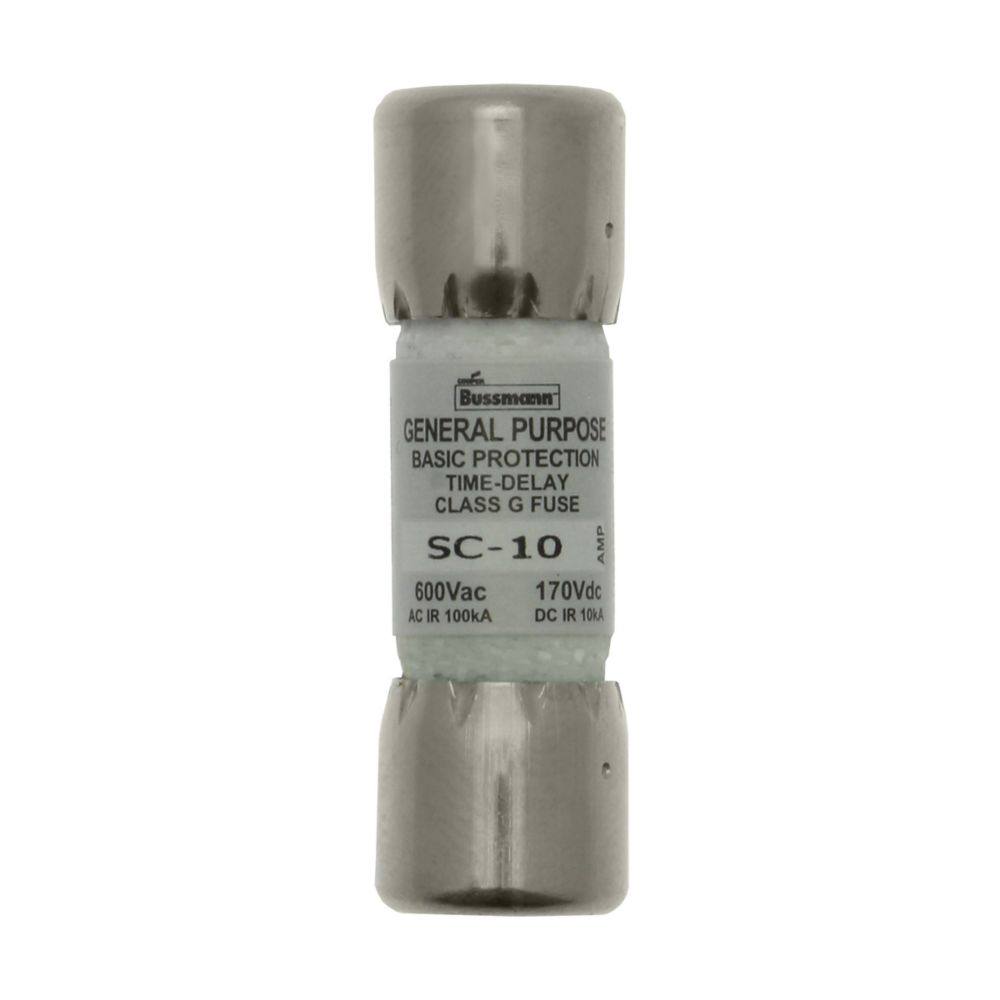

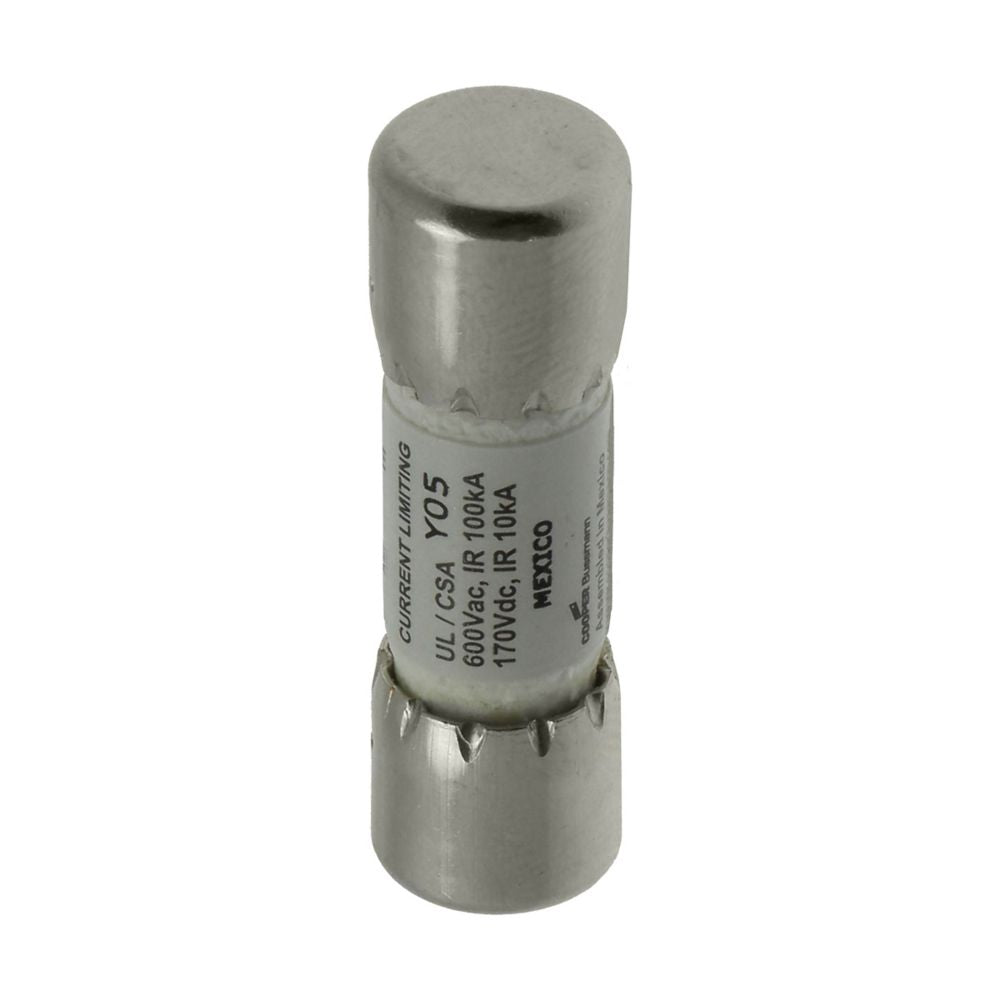

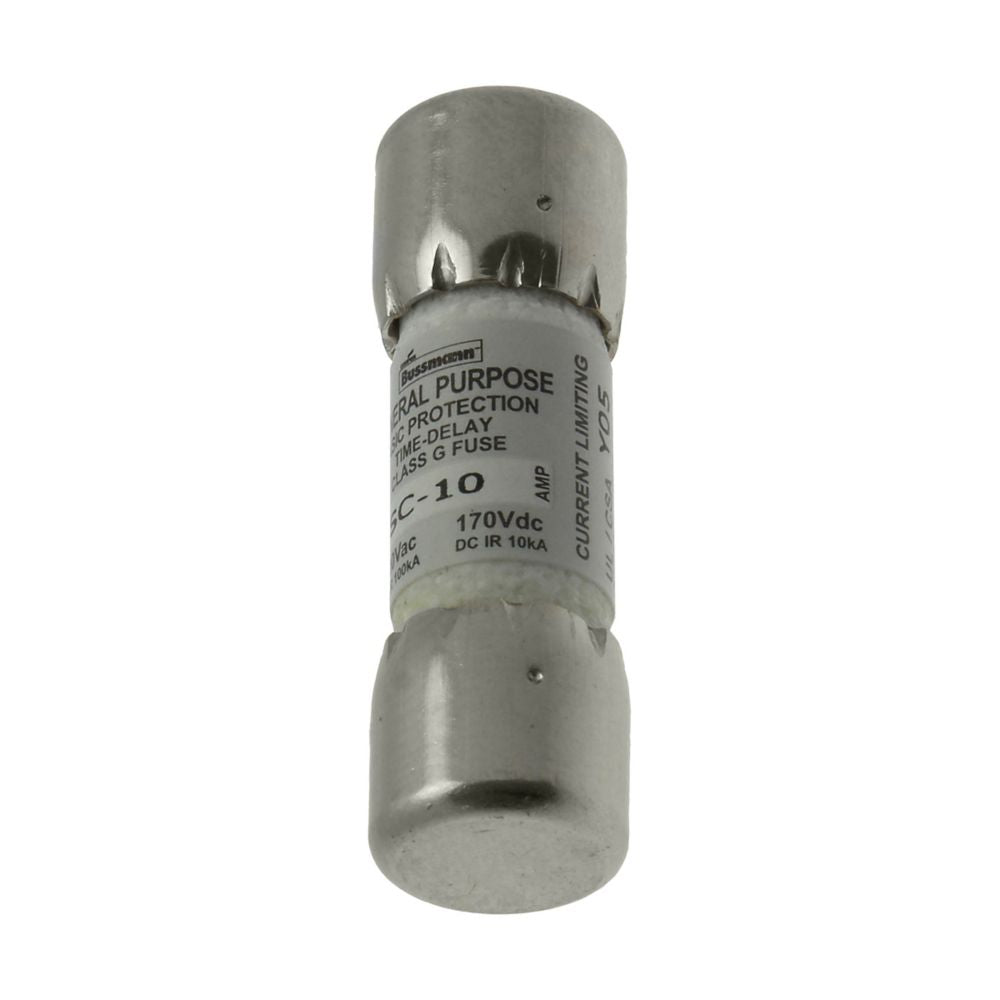

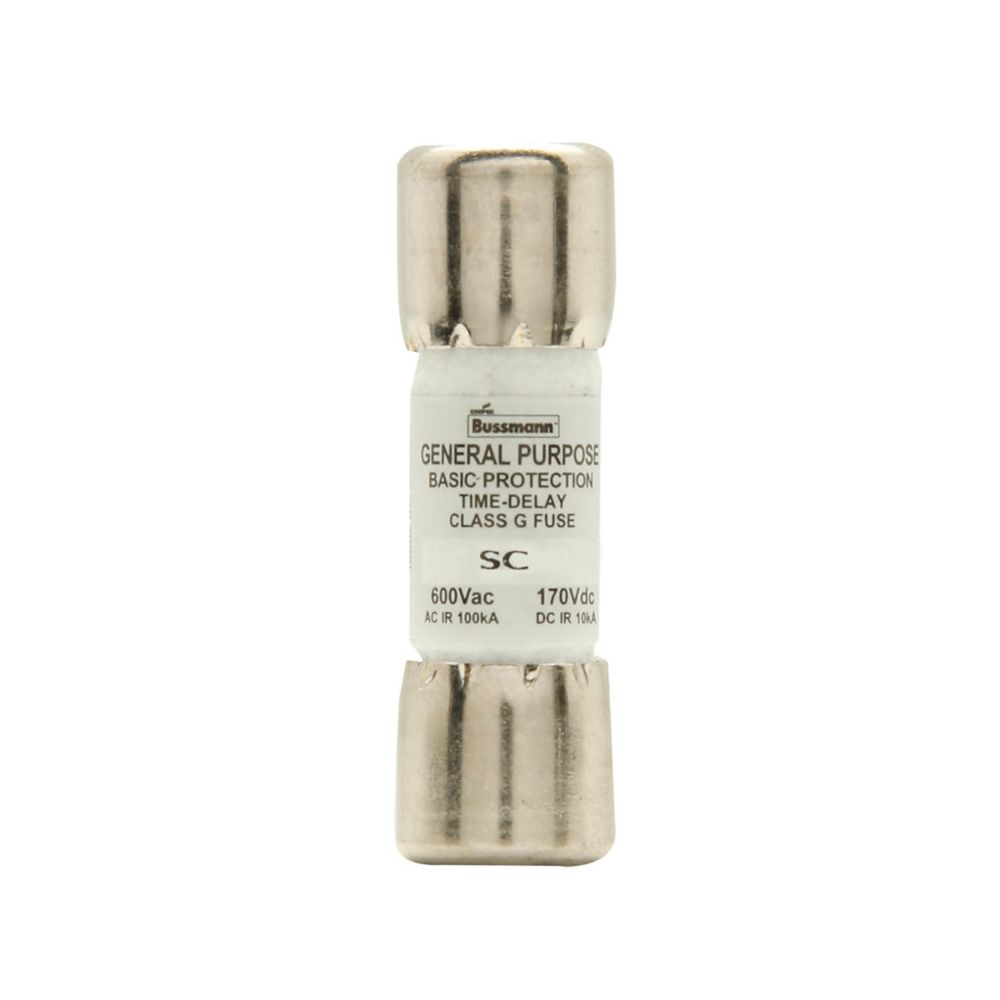

SC-10 - Eaton Bussmann Series - Eaton Bussmann series SC fuse
| SKU | SC-10 |
| descriptionLabel | Eaton Bussmann Series Class G fuse, SC, fast-acting, current limiting fuse, 10 A, rejection style fuse, interrupting rating of 100 kA at 600 Vac and 10 kA at 170 Vdc |
| Product Name | Eaton Bussmann series SC fuse |
| Catalog Number | SC-10 |
| UPC | 051712250108 |
| Product Length/Depth | 1.31 in |
| Product Height | 0.41 in |
| Product Width | 0.41 in |
| Product Weight | 0.1 lb |
| Warranty | Not Applicable |
| Compliances | RoHS Compliant |
| Product Type | Fuse |
| Amperage Rating | 10 A |
| Interrupt rating | 100 kAIC at 600 Vac 10 kAIC at 170 Vdc |
| Response time | 12 sec at 200% |
| Voltage rating | 600 Vac, 170 Vdc |

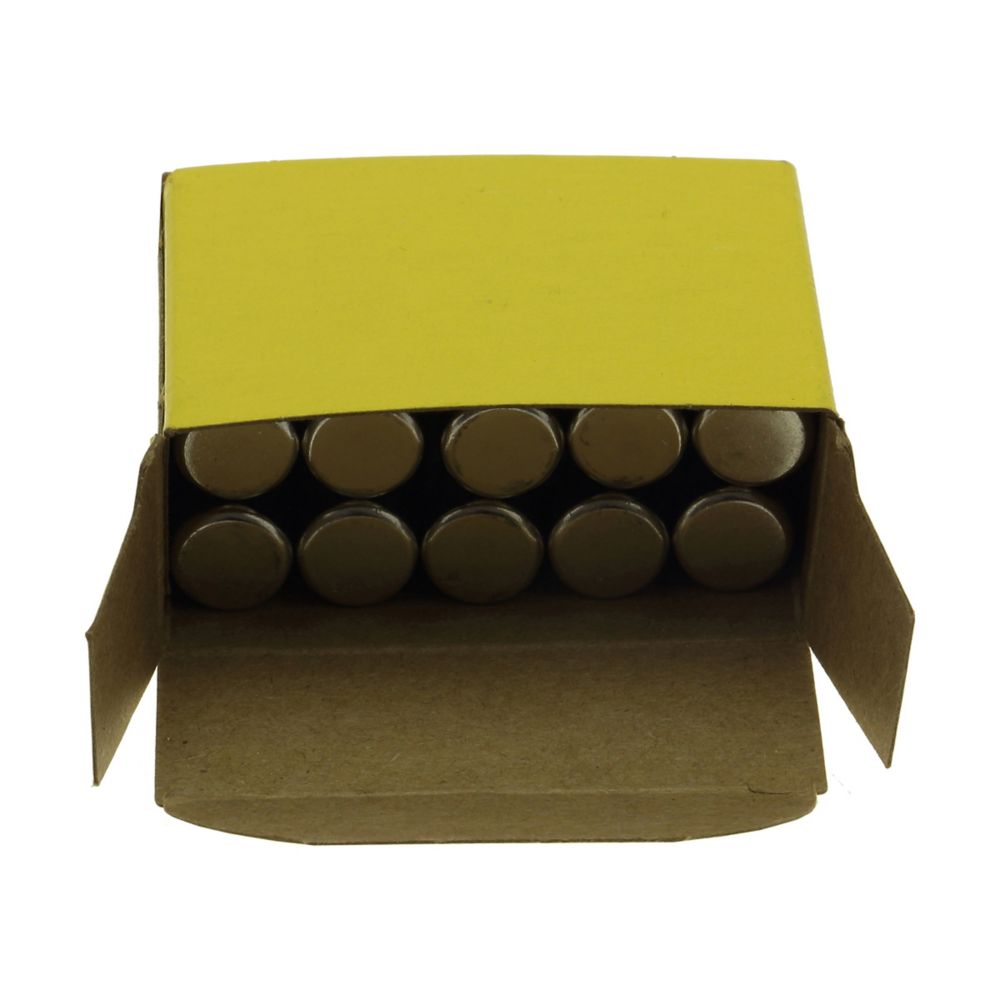

| Packaging type | Standard |
| Class | Class G |
| Connection | Ferrule end x ferrule end |
| Fuse indicator | Non-indicating |
| Special features | Rejection style |
