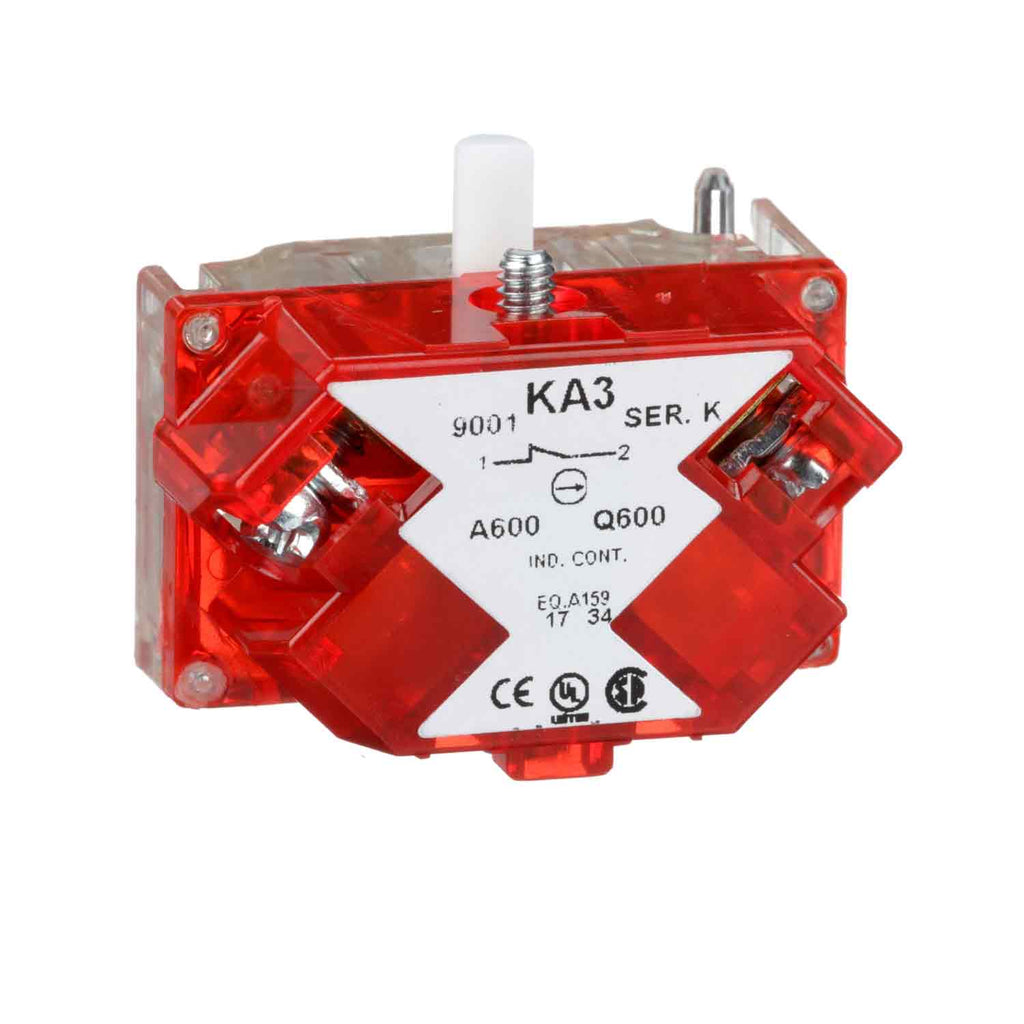

9001KA3 - Schneider Electric - Square D Contact Block with Push Button
This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NC contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features standard contact operation. It weighs 23g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
GENERAL SPECIFICATIONS
| Main | |
| Range of Product | Harmony 9001K |
| Harmony 9001SK | |
| Product or Component Type | Contact block |
| Device short name | 9001K |
| Contacts type and composition | 1 NC |
| Complementary | |
| Terminals description ISO n°1 | (3-4)NO |
| Net Weight | 0.051 lb(US) (0.023 kg) |
| Contact operation | Positive opening |
| Positive opening | With IEC 60947-5-2 |
| Connections - terminals | Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Shape of screw head | Cross slotted |
| Contacts material | Silver alloy contacts |
| Short-circuit protection | 10 A cartridge fuse IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10:00 AM |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600-Q600 NEMA |
| 0.55 A 125 V, DC-13, A600-Q600 NEMA | |
| [Icm] rated short-circuit making capacity | 12 kA 600 V AC-15, 7200 VA |
| 15 kA 480 V AC-15, 7200 VA | |
| 30 kA 240 V AC-15, 7200 VA | |
| 60 kA 120 V AC-15, 7200 VA | |
| 0.55 kA 125 V DC-13 | |
| 0.1 kA 600 V DC-13 | |
| 0.27 kA 250 V DC-13 | |
| Rated breaking capacity | 3 kA 240 V AC-15, 720 VA |
| 6 kA 120 V AC-15, 720 VA | |
| 1.2 kA 600 V AC-15, 720 VA | |
| 1.5 kA 480 V AC-15, 720 VA | |
| 0.1 kA 600 V DC-13 | |
| 0.27 kA 250 V DC-13 | |
| 0.55 kA 125 V DC-13 | |
| [Us] rated supply voltage | 0...600 V |
| Connections - Terminals | Screw-clamp terminals |
| Environment | |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Standards | UL 508 |
| JIS C 4520 | |
| JIS C 852 | |
| IEC 60947-5-4 | |
| CSA C22.2 No 14 | |
| IEC 60947-1 | |
| IEC 60947-5-1 | |
| UL 60947-5-1 | |
| Product Certifications | NEMA |
| UL 508 | |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Ordering and shipping details | |
| Category | US10CS121434 |
| Discount Schedule | 0CS1 |
| GTIN | 785901880028 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.378 in (3.500 cm) |
| Package 1 Width | 1.654 in (4.200 cm) |
| Package 1 Length | 2.008 in (5.100 cm) |
| Package weight(Lbs) | 0.811 oz (23.000 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 5.906 in (15.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 5.196 lb(US) (2.357 kg) |
PRODUCT DATASHEET
Schneider Electric_Harmony-30-mm-9001-K-Metal-Push-Buttons_9001KA3
