Description

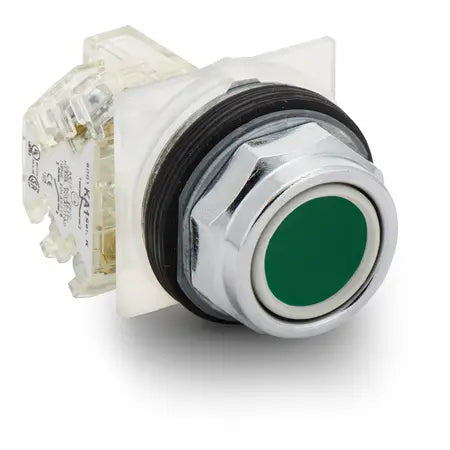

9001KR1GH13 - Schneider Electric - Square D 30mm Push Button
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features spring return flush push. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
GENERAL SPECIFICATIONS
| Main | |
| Range of Product | Harmony 9001K |
| Product or Component Type | Push-button |
| Device short name | 9001K |
| Type of operator | spring return |
| Operator profile | Green flush, unmarked |
| Operator additional information | Metal guard |
| Complementary | |
| Bezel material | Metal |
| Mounting diameter | 1.2 in (30 mm) |
| Shape of signaling unit head | Octagonal |
| Contacts type and composition | 1 C/O |
| Connections - terminals | Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| shape of screw head | Cross slotted |
| Mechanical durability | 5000000 cycles |
| Operating position | Any position |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600-Q600 NEMA |
| 0.55 A 125 V, DC-13, A600-Q600 NEMA | |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| Contacts material | Silver alloy contacts |
| Contact operation | Standard |
| Positive opening | Without |
| Short-circuit protection | 10 A cartridge fuse IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10:00 AM |
| [Icm] rated short-circuit making capacity | 12 kA 600 V AC-15, 7200 VA |
| 15 kA 480 V AC-15, 7200 VA | |
| 30 kA 240 V AC-15, 7200 VA | |
| 60 kA 120 V AC-15, 7200 VA | |
| 0.1 kA 600 V DC-13 | |
| 0.27 kA 250 V DC-13 | |
| 0.55 kA 125 V DC-13 | |
| Rated breaking capacity | 3 kA 240 V AC-15, 720 VA |
| 6 kA 120 V AC-15, 720 VA | |
| 1.2 kA 600 V AC-15, 720 VA | |
| 1.5 kA 480 V AC-15, 720 VA | |
| 0.1 kA 600 V DC-13 | |
| 0.27 kA 250 V DC-13 | |
| 0.55 kA 125 V DC-13 | |
| Terminals description ISO n°1 | (13-14-11-12)OF |
| CAD overall width | 1.9 in (48 mm) |
| CAD overall height | 1.8 in (45 mm) |
| CAD overall depth | 2.2 in (56 mm) |
| Net Weight | 0.267 lb(US) (0.121 kg) |
| Device presentation | Complete product |
| Cap/operator or lens colour | Green |
| Operator profile | Flush |
| Type of operator | Spring return |
| Size | 30 mm |
| Environment | |
| Standards | IEC 60947-1 |
| JIS C 4520 | |
| IEC 60947-5-1 | |
| CSA C22.2 No 14 | |
| JIS C 852 | |
| IEC 60947-5-4 | |
| Product Certifications | UL 508 |
| NEMA | |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP Degree of Protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1 |
| NEMA 12 | |
| NEMA 13 | |
| NEMA 2 | |
| NEMA 3 | |
| NEMA 3R | |
| NEMA 4 | |
| Ordering and shipping details | |
| Category | US10CS121426 |
| Discount Schedule | 0CS1 |
| GTIN | 785901033332 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.969 in (5.000 cm) |
| Package 1 Width | 2.283 in (5.800 cm) |
| Package 1 Length | 3.740 in (9.500 cm) |
| Package weight(Lbs) | 4.444 oz (126.000 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 5.906 in (15.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 7.064 lb(US) (3.204 kg) |
PRODUCT DATASHEET
Schneider Electric_Harmony-30-mm-9001-K-Metal-Push-Buttons_9001KR1GH13
