9001KR1UH13 - Schneider Electric - Square D Push Button
Roll over image to zoom in Click on image to zoom
9001KR1UH13 - Schneider Electric - Square D Push Button

9001KR1UH13 - Schneider Electric - Square D Push Button

Square DSKU: SQD9001KR1UH13
Price:
$58.87
Stock:
Sold out

Description

9001KR1UH13 - Schneider Electric - Square D Push Button

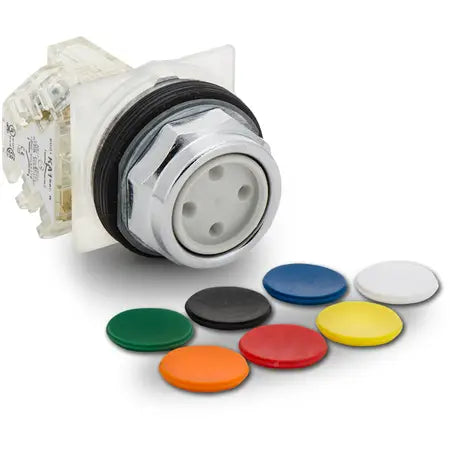

This Schneider Electric Harmony 9001K modular flush push-button with full guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has 1 x NO + 1 x NC contact and fits in a 30mm hole. It is supplied with contact block and uses screw-clamp terminals. It has a chromium-plated metal bezel. This flush push-button with full guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13).

GENERAL SPECIFICATIONS

Main
Range of Product Harmony 9001K
Product or Component Type Push-button
Device short name 9001K
Type of operator Spring return
Operator profile 7 colours choice flush, unmarked
operator additional information Metal guard
Complementary
Bezel material Metal
Mounting diameter 1.2 in (30 mm)
Shape of signaling unit head Octagonal
Contacts type and composition 1 C/O
Connections - terminals Screw clamp terminals 1 x 0.22...2 x 1.5 mm IEC 60947-1
Tightening torque 7.08 lbf.in (0.8 N.m) IEC 60947-1
Shape of screw head Cross slotted
Mechanical durability 5000000 cycles
Operating position Any position
[Ie] rated operational current 3 A 240 V, AC-15, A600-Q600 NEMA
0.55 A 125 V, DC-13, A600-Q600 NEMA
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV IEC 60947-1
Contacts material Silver alloy contacts
Contact operation Standard
Positive opening Without
Short-circuit protection 10 A cartridge fuse IEC 60947-5-1
[Ith] conventional free air thermal current 10 A
[Icm] rated short-circuit making capacity 12 kA 600 V AC-15, 7200 VA
15 kA 480 V AC-15, 7200 VA
30 kA 240 V AC-15, 7200 VA
60 kA 120 V AC-15, 7200 VA
0.1 kA 600 V DC-13
0.27 kA 250 V DC-13
0.55 kA 125 V DC-13
Rated breaking capacity 3 kA 240 V AC-15, 720 VA
6 kA 120 V AC-15, 720 VA
1.2 kA 600 V AC-15, 720 VA
1.5 kA 480 V AC-15, 720 VA
0.1 kA 600 V DC-13
0.27 kA 250 V DC-13
0.55 kA 125 V DC-13
Terminals description ISO n deg1 (13-14-11-12)OF
CAD overall width 1.9 in (48 mm)
CAD overall height 1.8 in (45 mm)
CAD overall depth 2.2 in (56 mm)
Net Weight 0.267 lb(US) (0.121 kg)
Device presentation Complete product
Cap/operator or lens colour 7 colours choice
Operator profile Flush
Type of operator Spring return
Size 30 mm
Environment
Standards IEC 60947-1
JIS C 4520
IEC 60947-5-1
CSA C22.2 No 14
JIS C 852
IEC 60947-5-4
Product Certifications NEMA
UL 508
Protective treatment TC
Ambient Air Temperature for Storage -40...158 degF (-40...70 degC)
Ambient Air Temperature for Operation -13...158 degF (-25...70 degC)
Vibration resistance 7 gn 2...500 Hz)IEC 60068-2-6
Shock resistance 50 gn IEC 60068-2-27
Electrical shock protection class Class II IEC 61140
IP degree of protection IP66 IEC 60529
NEMA degree of protection NEMA 1
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
Ordering and shipping details
Category US10CS121426
Discount Schedule 0CS1
GTIN 785901848851
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 2.0 in (5 cm)
Package 1 Width 2.4 in (6 cm)
Package 1 Length 4.5 in (11.5 cm)
Package weight(Lbs) 4.5 oz (128 g)
Unit Type of Package 2 S01
Number of Units in Package 2 24
Package 2 Height 5.9 in (15 cm)
Package 2 Width 5.9 in (15 cm)
Package 2 Length 15.7 in (40 cm)
Package 2 Weight 7.17 lb(US) (3.25 kg)
