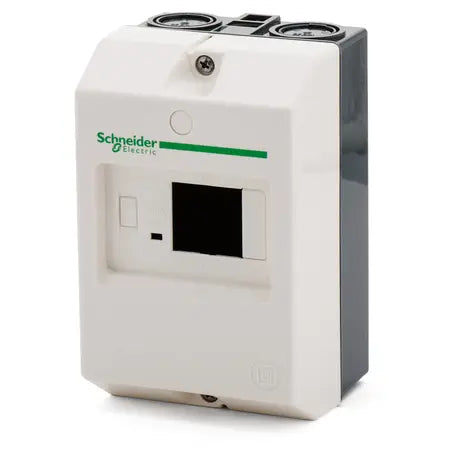

GV2MC01 - Schneider Electric - Square D surface mount enclosure
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP41 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.
GENERAL SPECIFICATIONS
| Main | |
| Range | TeSys |
| Product or Component Type | Enclosure |
| Device short name | GV2MC |
| Accessory / separate part category | Mounting accessory |
| Product Compatibility | GV2ME |
| enclosure type | Surface mounting |
| Complementary | |
| Auxiliary mounting location | Left |
| Right | |
| Height | 5.8 in (147 mm) |
| Width | 3.7 in (93 mm) |
| Depth | 3.3 in (84 mm) |
| Environment | |
| IP degree of protection | IP41 |
| Environmental characteristic | Standard environment |
| Ordering and shipping details | |
| Category | US10I1122367 |
| Discount Schedule | 0I11 |
| GTIN | 3389110213645 |
| Returnability | Yes |
| Country of origin | CZ |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.937 in (10.000 cm) |
| Package 1 Width | 3.937 in (10.000 cm) |
| Package 1 Length | 5.984 in (15.200 cm) |
| Package weight(Lbs) | 9.771 oz (277.000 g) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 15.748 in (40.000 cm) |
| Package 2 Length | 23.622 in (60.000 cm) |
| Package 2 Weight | 18.204 lb(US) (8.257 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 108 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 94.861 lb(US) (43.028 kg) |
PRODUCT DATASHEET
