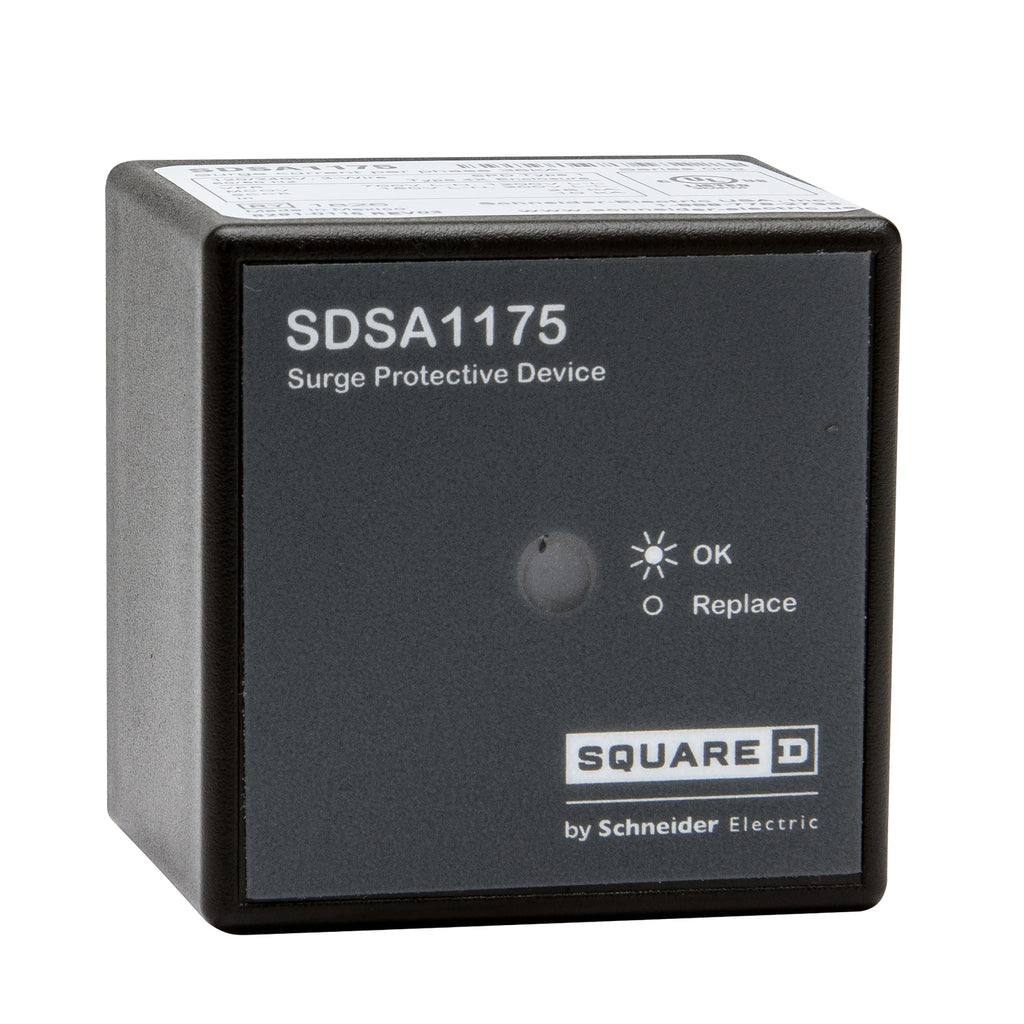

SDSA1175 - Schneider Electric - 36kA 120/240 VAC Square D Surge Protection Device
Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. This device can be used indoors or outdoors to provide surge suppression for 1 PH, 3 wire, 120/240 VAC or 2 wire, 120 VAC systems. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Securing up to 36kA surge current per phase. This surge protection device is UL Listed.
GENERAL SPECIFICATIONS
Main
| Product |
Surge protection device |
| Range |
Surgelogic |
Complementary
| Voltage Rating |
120/240 V AC |
| MCOV |
150 V |
| SCCR |
25 kA |
| Surge Current |
36 kA per phase |
| Nominal Discharge Current |
10 kA |
| Number of Phases |
1 phase |
| Wiring Configuration |
3-wire |
| Local Signalling |
Status LED green normal operation |
| Cable length |
24 in (609.6 mm) |
| Height |
2.25 in (57.15 mm) |
| Width |
2.25 in (57.15 mm) |
| Depth |
2.7 in (68.6 mm) |
Environment
| Ambient Operating |
149 °F (65 °C) |
| Enclosure Rating |
NEMA 4X |
| Enclosure Material |
Black Plastic |
| Standards |
UL 1449:ed. 4: type I
NEC 285
CSA C22.2 No 8 |
Ordering and shipping details
| Category |
US1DE1B08462 |
| Discount Schedule |
DE1B |
| GTIN |
785901210870 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.60 in (6.604 cm) |
| Package 1 Width |
2.70 in (6.858 cm) |
| Package 1 Length |
6.80 in (17.272 cm) |
| Package 1 Weight |
11.680 oz (331.122 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
20 |
| Package 2 Height |
7.20 in (18.288 cm) |
| Package 2 Width |
11.50 in (29.210 cm) |
| Package 2 Length |
13.40 in (34.036 cm) |
| Package 2 Weight |
15.351 lb(US) (6.963 kg) |
| Unit Type of Package 3 |
PAL |
| Number of Units in Package 3 |
240 |
| Package 3 Height |
40.00 in (101.600 cm) |
| Package 3 Width |
40.00 in (101.600 cm) |
| Package 3 Length |
48.00 in (121.920 cm) |
| Package 3 Weight |
160.999 lb(US) (73.028 kg) |
PRODUCT DATASHEET
Schneider Electric_Type-SDSA1175_SDSA1175
