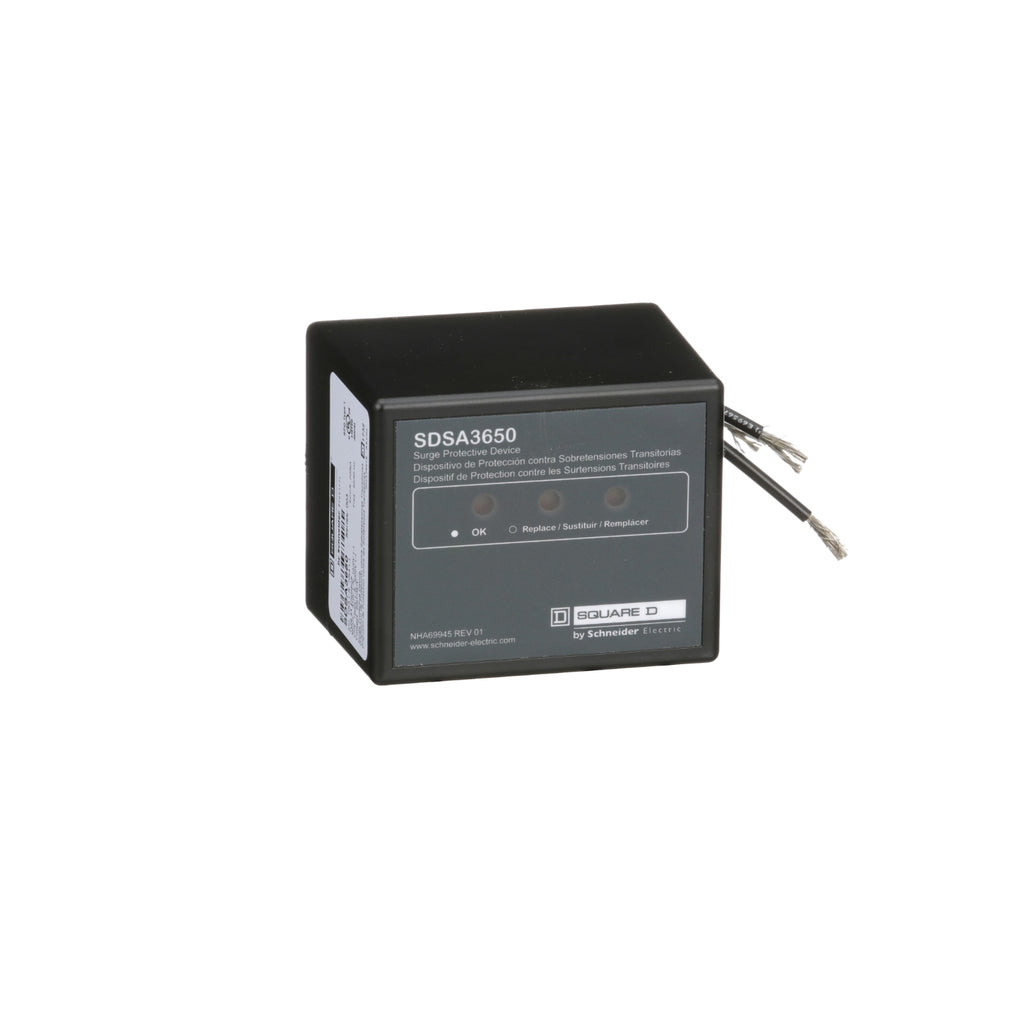

SDSA3650 - Schneider Electric - Square D Surge Protection Device Surgelogic 40kA 600Y/347VAC 3-Phase 4-Wire NEMA 4X
Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. Equipped with LED status signal light for convenient use. SPD are three phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 4 wire 600Y/377VAC three phase systems. Securing up to 50kA surge current per phase. This surge protection device is UL Listed.
GENERAL SPECIFICATIONS
Main
| Product |
Surge protection device |
| Range |
Surgelogic |
Complementary
| Voltage Rating |
600Y/347 V AC |
| MCOV |
510 V |
| SCCR |
200 kA |
| Surge Current |
40 kA per phase |
| Nominal Discharge Current |
10 kA |
| Number of Phases |
3 phase |
| Wiring Configuration |
4-wire |
| Local Signalling |
Status LED green normal operation |
| Cable length |
24 in (609.6 mm) |
| Height |
3 in (76.2 mm) |
| Width |
3.6 in (91.4 mm) |
| Depth |
3.4 in (86.4 mm) |
Environment
| Ambient Operating |
149 °F (65 °C) |
| Enclosure Rating |
NEMA 4X |
| Enclosure Material |
Black Plastic |
| Standards |
UL 1449:ed. 4: type I
NEC 285: type I
CSA C22.2 No 8 |
Ordering and shipping details
| Category |
US1DE1B08462 |
| Discount Schedule |
DE1B |
| GTIN |
785901210887 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
3.300 in (8.382 cm) |
| Package 1 Width |
4.000 in (10.160 cm) |
| Package 1 Length |
5.700 in (14.478 cm) |
| Package weight(Lbs) |
16.400 oz (464.932 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
20 |
| Package 2 Height |
6.400 in (16.256 cm) |
| Package 2 Width |
13.800 in (35.052 cm) |
| Package 2 Length |
20.600 in (52.324 cm) |
| Package 2 Weight |
21.491 lb(US) (9.748 kg) |
PRODUCT DATASHEET
SDSA3650_Product Datasheet
