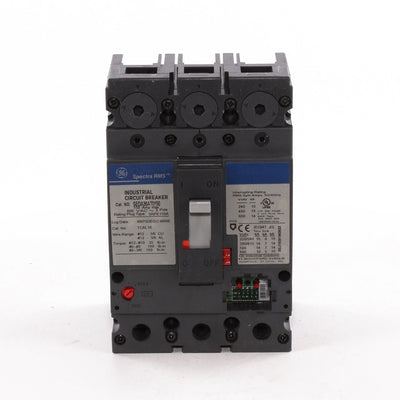

SEDA36AT0150 - General Electric - 150 Amp 3 Pole 600 V Circuit Breaker
The General Electric SEDA36AT0150 is a Molded Case Circuit Breaker. This type SEDA circuit breaker is a member of The Spectra Series family. The SEDA36AT0150 is a 3 pole, 600 Volt, 150 amp rated circuit breaker, with an AIC rating of 18kA@480V. The SEDA36AT0150 is manufactured by General Electric. The SEDA36AT0150 uses a Bolt-On connection. Includes Solid State protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
TECHNICAL SPECIFICATIONS
Descriptors
|
Category |
Spectra RMS™ Electronic Trip |
|
Product Line |
Spectra RMS - Standard |
|
GO Schedule |
ES |
Specifications
|
Trip Style |
Interchangeable |
|
Poles |
3 |
|
Amperage |
110 A |
|
System Voltage |
120 Vac |
|
Frame Type |
SE150 |
|
120 Vac Interrupting Rating |
18 KAIC |
|
120/240 Vac Interrupting Rating |
18 KAIC |
|
240 Vac Interrupting Rating |
18 KAIC |
|
277 Vac Interrupting Rating |
18 KAIC |
|
480 Vac Interrupting Rating |
18 KAIC |
|
600 Vac Interrupting Rating |
14 KAIC |
|
Trip Function |
LSI |
|
Continuous Current Rated |
Standard |
|
Suitable for Reverse Feed |
Yes |
|
Lugs |
TCAL18 |
|
Long Time |
Fixed |
|
Short Time |
Adjustable |
|
Instantaneous |
Adjustable |
|
Current Metering |
No |
|
Protective Relays |
No |
|
Special Markings |
HACR |
|
GSA Compliance |
No |
Classifications
|
UL File # |
E11592 |
|
CSA File# |
LR40350 |
