Description

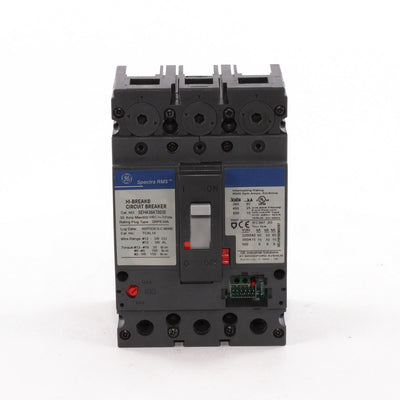

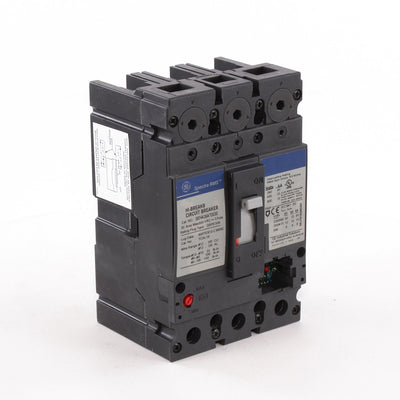

SEHA36AT0030 - General Electric - 30 Amp 3 Pole 600 V Circuit Breaker
The General Electric SEHA36AT0030 is a Molded Case Circuit Breaker. This type SEHA circuit breaker is a member of The Spectra Series family. The SEHA36AT0030 is a 3 pole, 600 Volt, 30 amp rated circuit breaker, with an AIC rating of 25kA@480V. The SEHA36AT0030 is manufactured by General Electric. The SEHA36AT0030 uses a Bolt-On connection. Includes Solid State protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
TECHNICAL SPECIFICATIONS
| Part Number | SEHA36AT0030 |
| Manufacturer | General Electric |
| Category | Circuit Breaker |
| Item Subcategory | Molded Case |
| Family | Spectra Series |
| Type | SEHA |
| Voltage | 600 |
| Amperage | 30 |
| Phase | 3 |
| Poles | 3 |
| AIC rating | 25kA@480V |
| Connection | Bolt-On |
| Functions | LSI - Long-Time, Short-Time and Instantaneous |
| Protection | Solid State |
