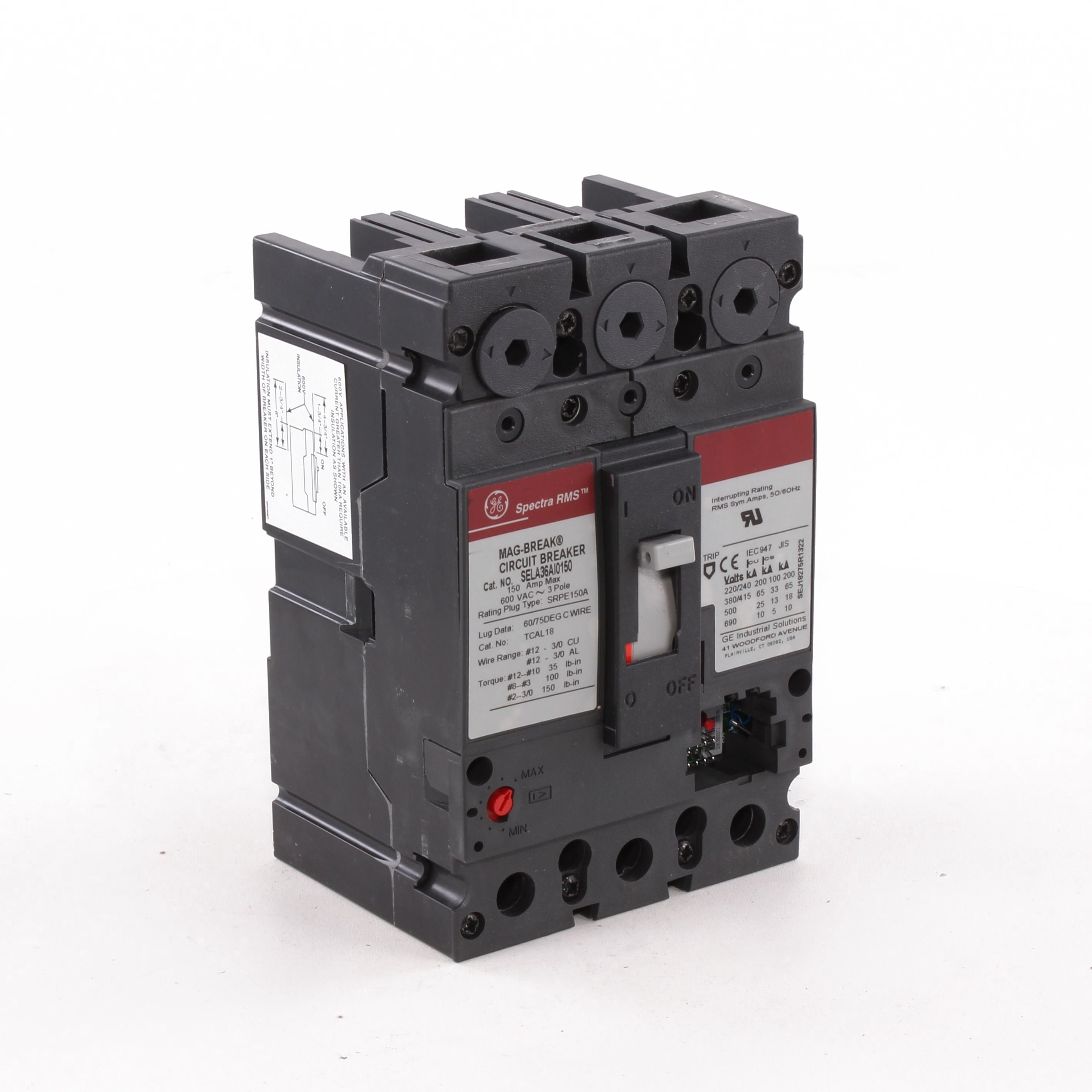

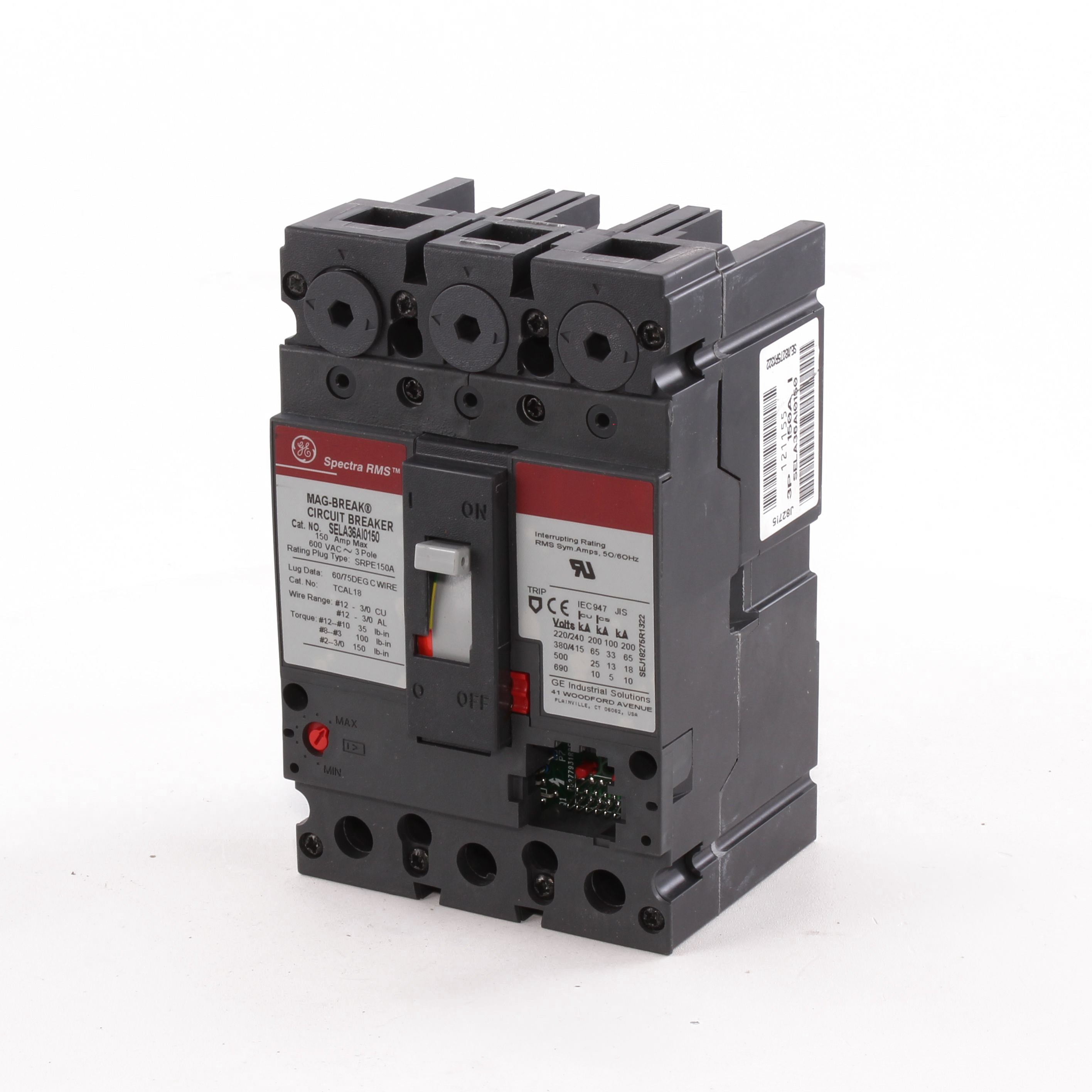

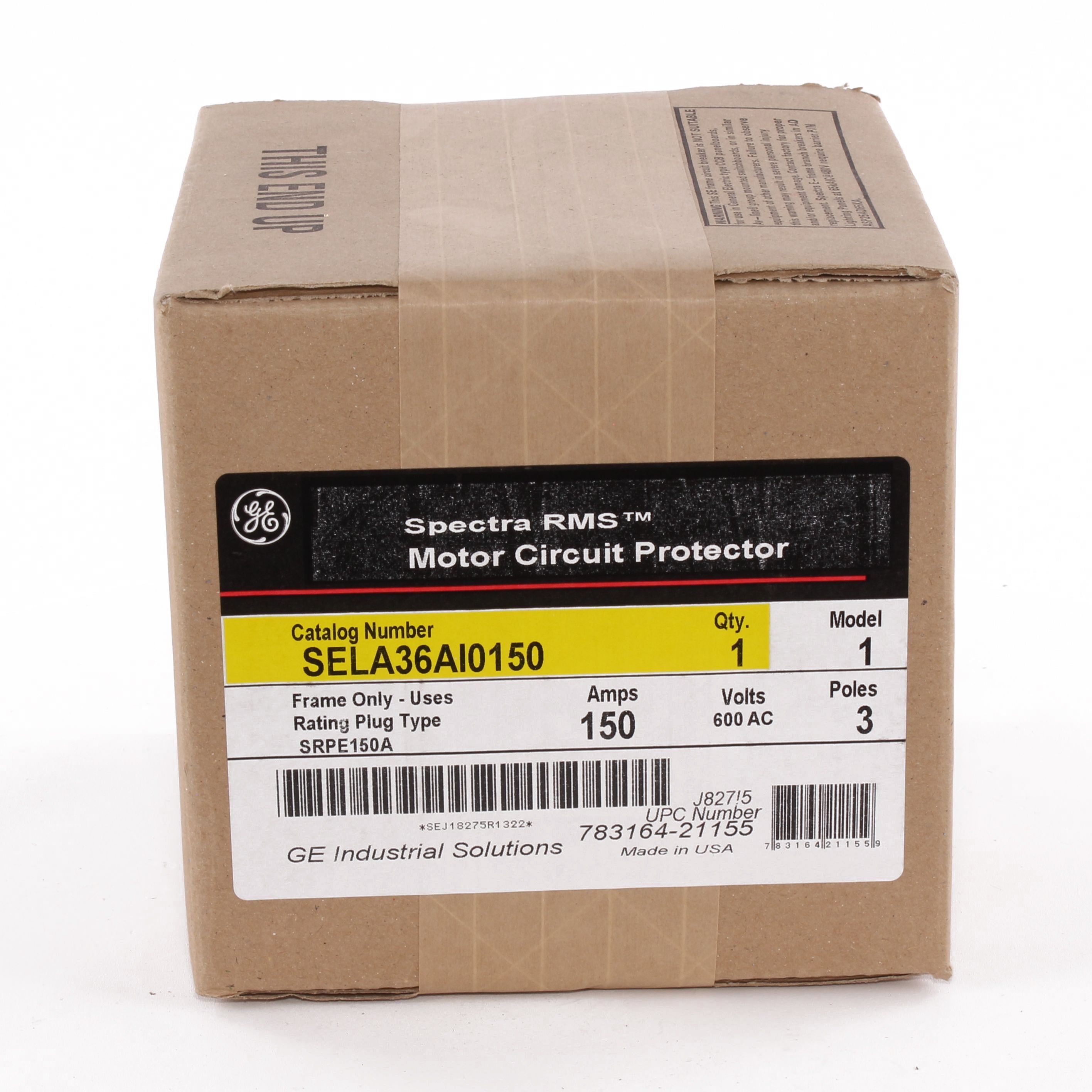

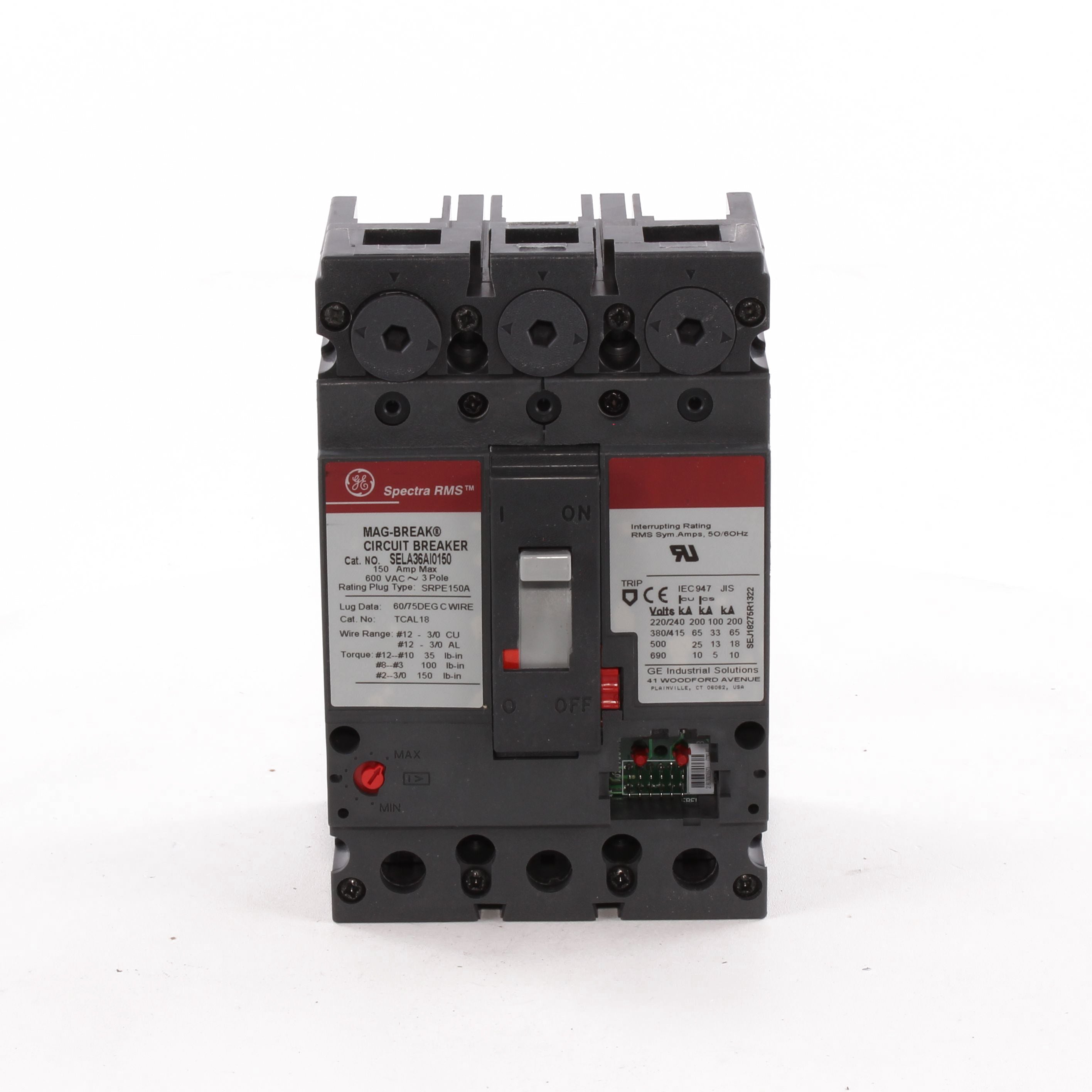

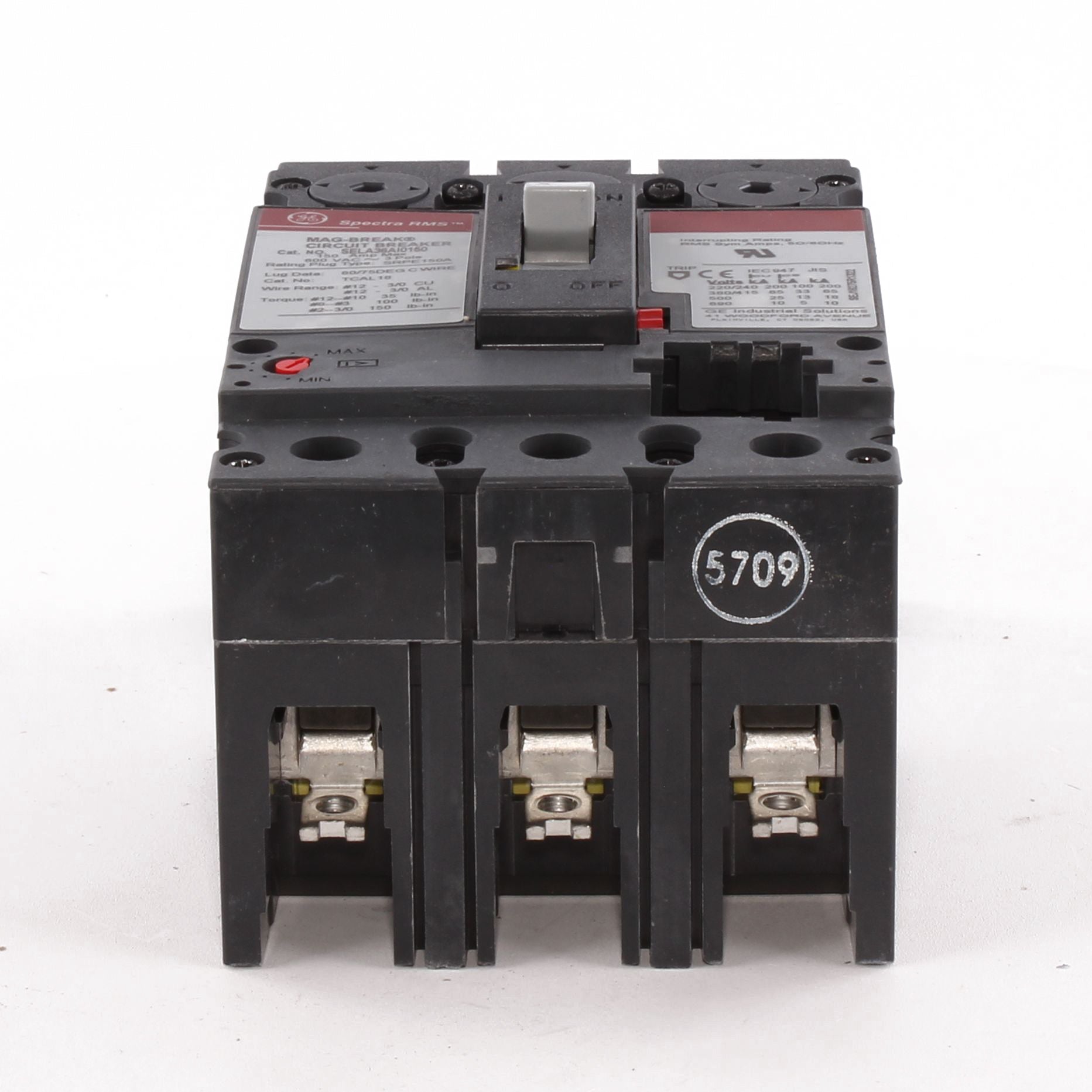

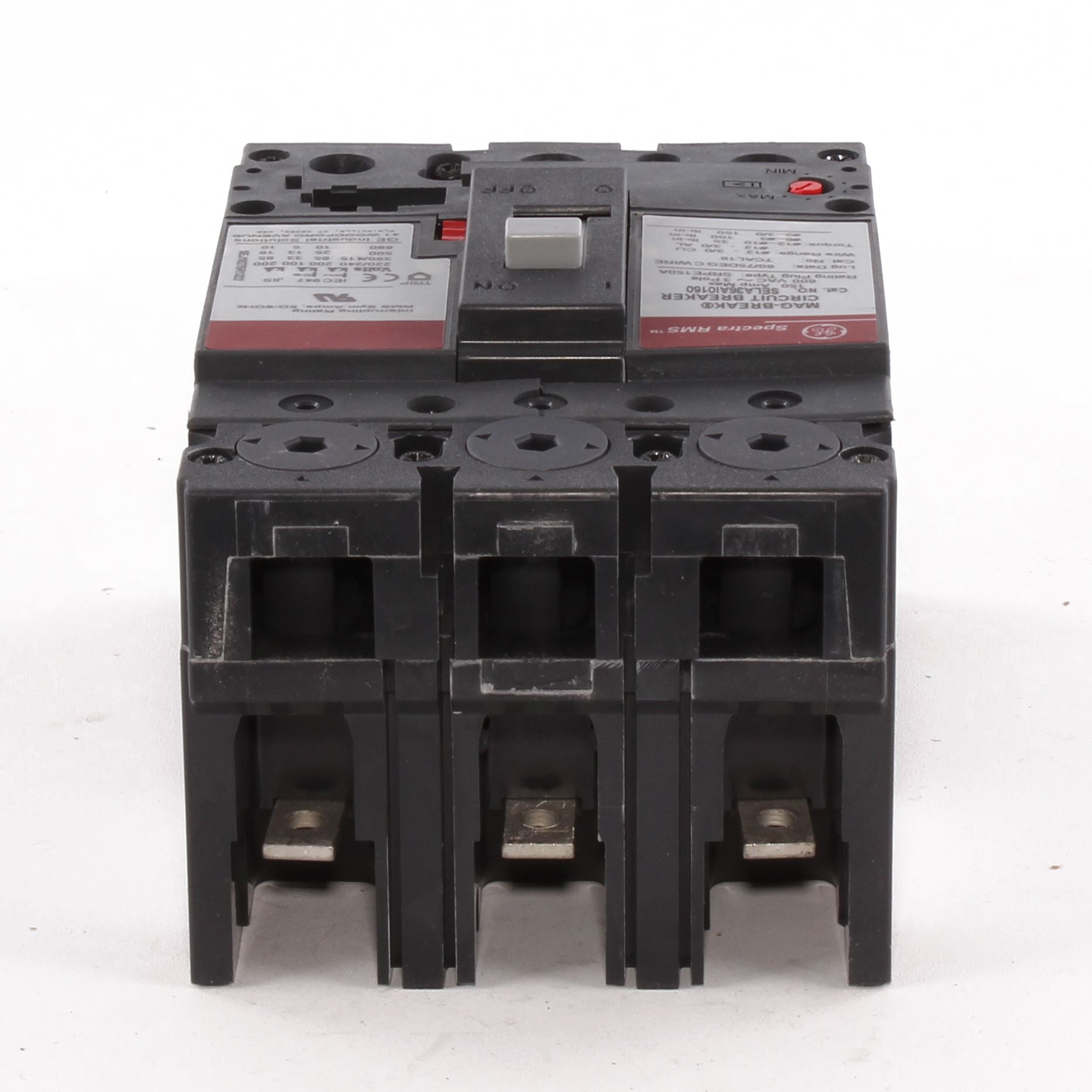

SELA36AI0150 - General Electric - 150 Amp 3 Pole 600 V Circuit Breaker
Description:E-FRAME 3P 600V 150A MAG-BREAK
UPC:783164211559
Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600, and SK1200) have a digital, solid-state, RMS sensing trip system with field-installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents. E-FRAME 3P 600V 150A MAG-BREAKTECHNICAL SPECIFICATIONS
Descriptors
Category |
Spectra RMS(TM) Electronic Trip |
Product Line |
Spectra RMS - Standard |
GO Schedule |
141S |
Specifications
Trip Style |
Interchangeable |
Poles |
3 |
Amperage |
110 A |
System Voltage |
120 Vac |
Frame Type |
SE150 |
120 Vac Interrupting Rating |
100 KAIC |
120/240 Vac Interrupting Rating |
100 KAIC |
240 Vac Interrupting Rating |
100 KAIC |
277 Vac Interrupting Rating |
65 KAIC |
480 Vac Interrupting Rating |
65 KAIC |
600 Vac Interrupting Rating |
25 KAIC |
Trip Function |
Mag Only |
Continuous Current Rated |
Standard |
Suitable for Reverse Feed |
Yes |
Lugs |
TCAL18 |
Long Time |
No |
Instantaneous |
Adjustable |
Current Metering |
No |
Protective Relays |
No |
GSA Compliance |
No |
Classifications
UL File # |
E11592 |
CSA File# |
LR40350 |
