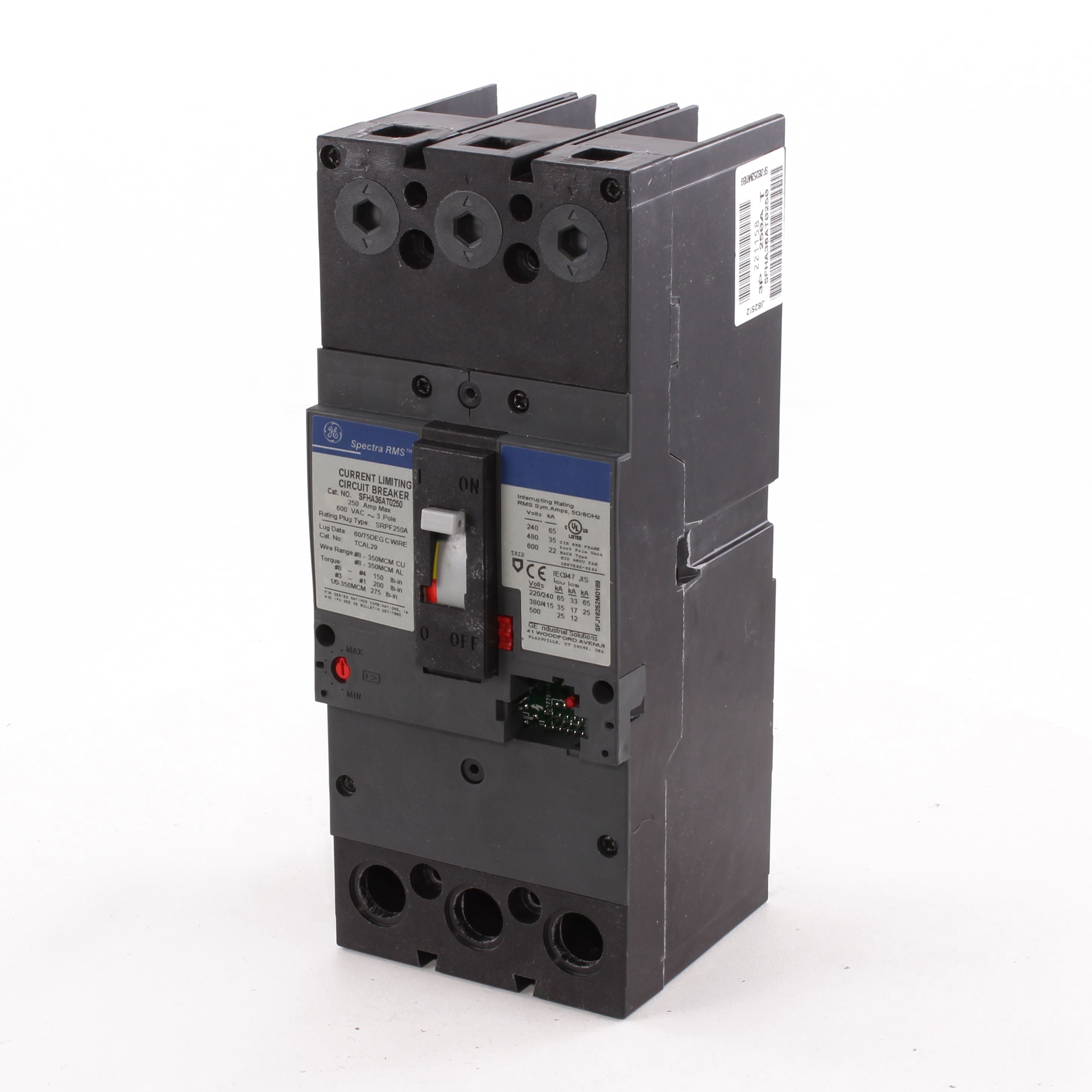

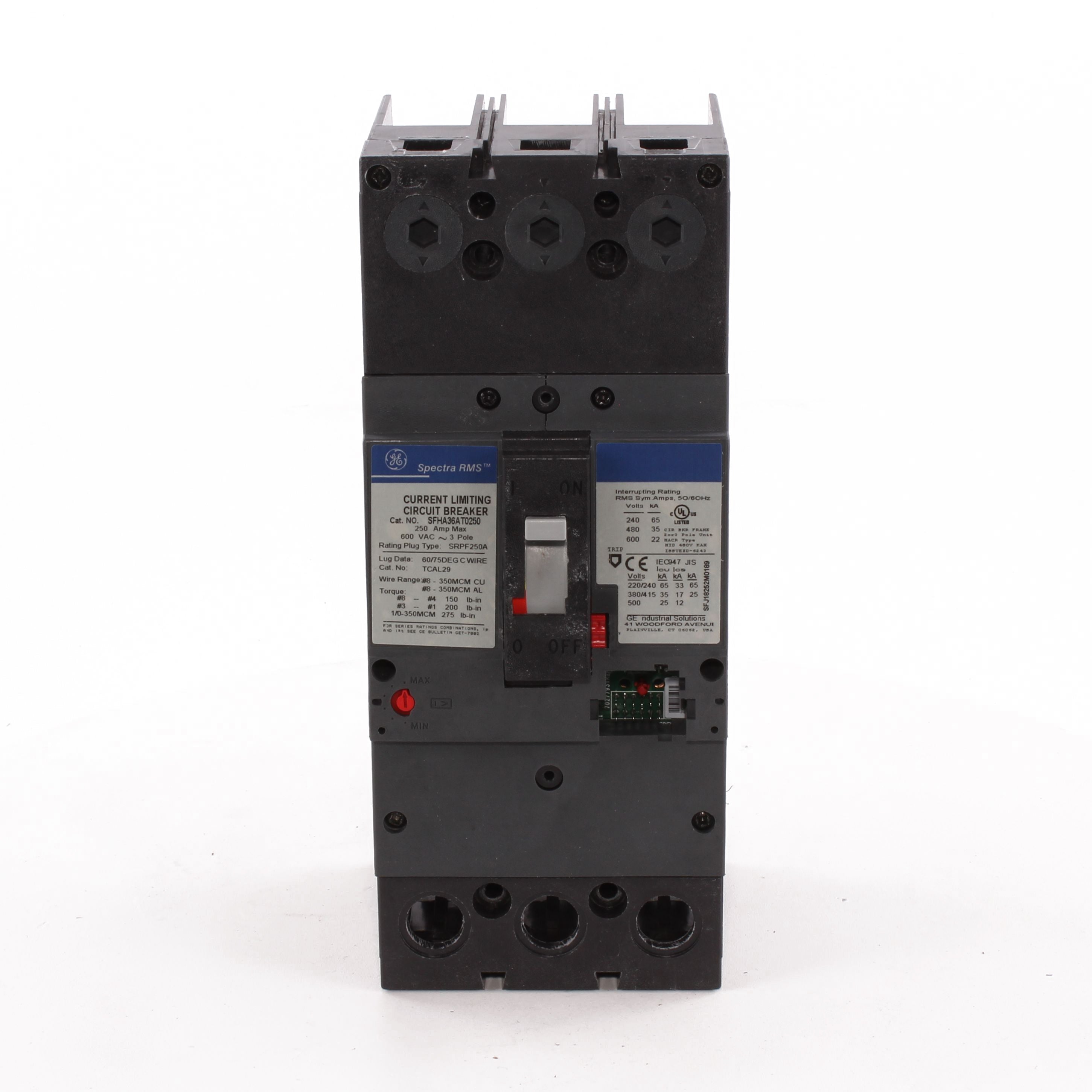

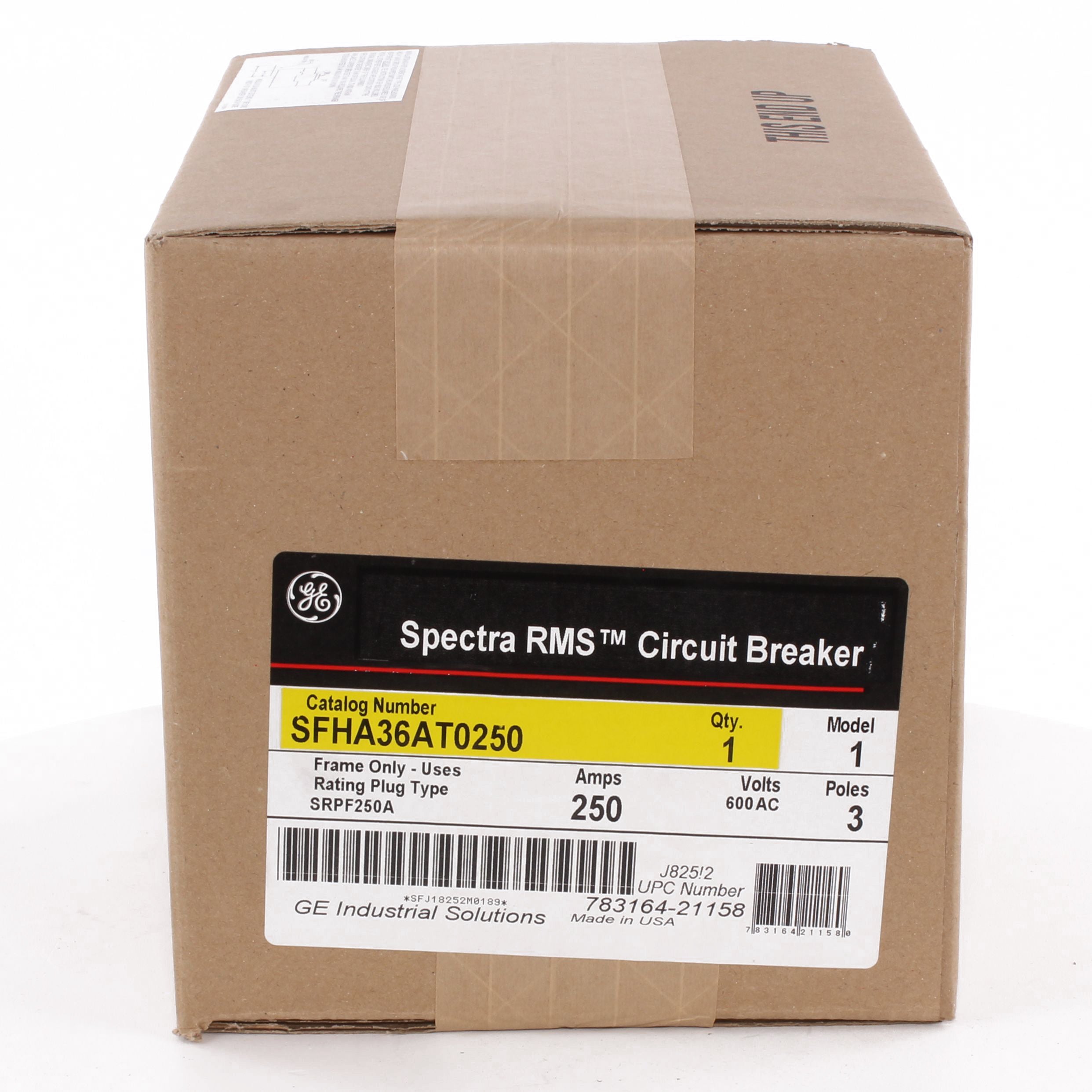

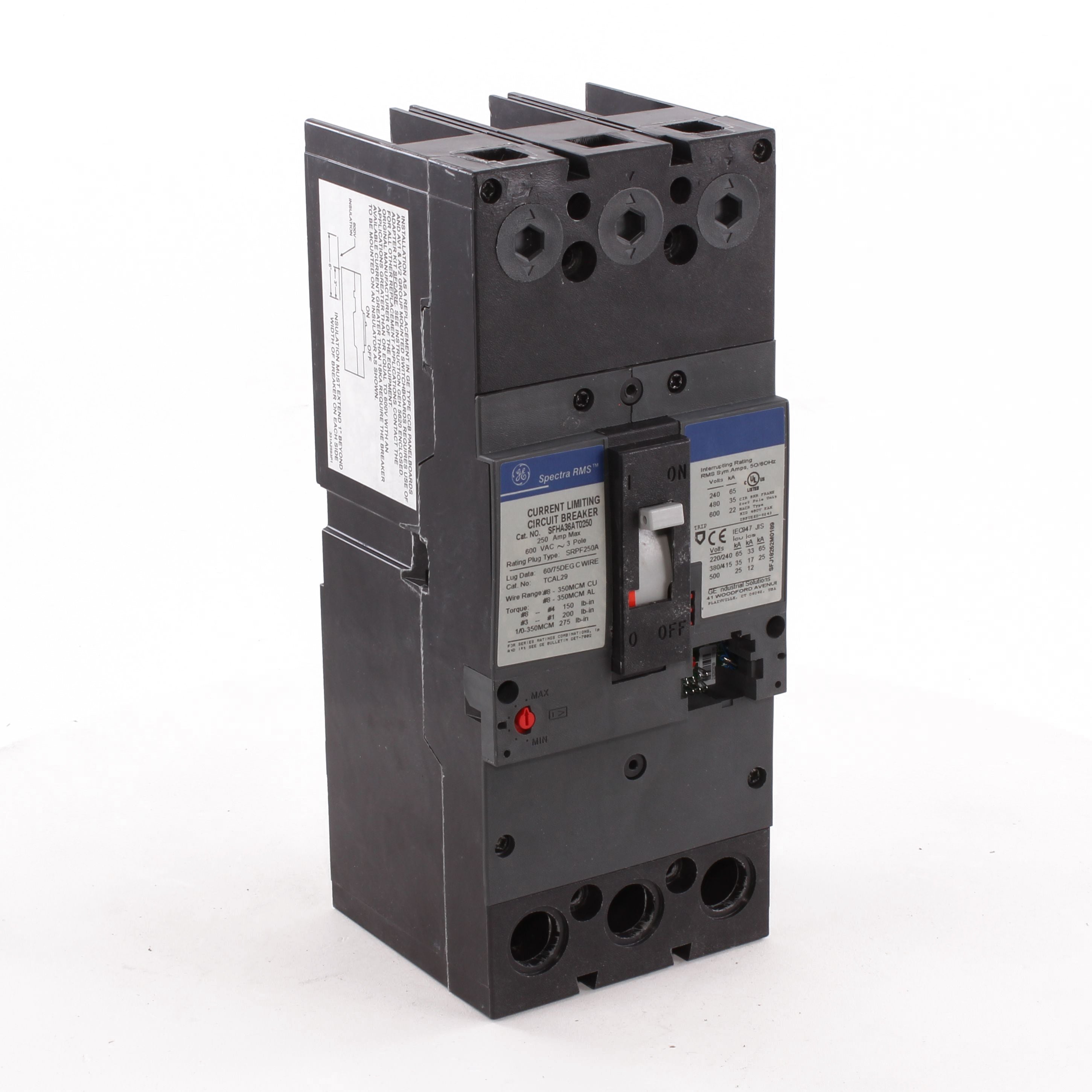

SFHA36AT0250 - General Electric - 250 Amp 3 Pole 600 V Circuit Breaker
SFHA36AT0250 - General Electric - 250 Amp 3 Pole 600 V Circuit Breaker
SFHA36AT0250 - General Electric - 250 Amp 3 Pole 600 V Circuit Breaker
SFHA36AT0250 - General Electric - 250 Amp 3 Pole 600 V Circuit Breaker
Roll over image to zoom in Click on image to zoom
SFHA36AT0250 - General Electric - 250 Amp 3 Pole 600 V Circuit BreakerSFHA36AT0250 - General Electric - 250 Amp 3 Pole 600 V Circuit BreakerSFHA36AT0250 - General Electric - 250 Amp 3 Pole 600 V Circuit BreakerSFHA36AT0250 - General Electric - 250 Amp 3 Pole 600 V Circuit Breaker

SFHA36AT0250 - General Electric - 250 Amp 3 Pole 600 V Circuit Breaker

General ElectricSKU: GESFHA36AT0250
Price:
$683.55
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

SFHA36AT0250 - General Electric - 250 Amp 3 Pole 600 V Circuit Breaker

Description:F FRAME 3 POLE 25KA

UPC:783164211580

Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600, and SK1200) have a digital, solid-state, RMS sensing trip system with field-installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents. F FRAME 3 POLE 25KA

TECHNICAL SPECIFICATIONS

Descriptors

Category

Spectra RMS(TM) Electronic Trip

Product Line

Spectra RMS - Standard

GO Schedule

ES

Specifications

Trip Style

Interchangeable

Poles

3

Amperage

100 A
110 A
125 A
150 A
175 A
200 A
225 A
250 A
70 A
90 A
80 A

System Voltage

120 Vac
120/240 Vac
240 Vac
277 Vac
480 Vac
600 Vac

Frame Type

SF250

120 Vac Interrupting Rating

65 KAIC

120/240 Vac Interrupting Rating

65 KAIC

240 Vac Interrupting Rating

65 KAIC

277 Vac Interrupting Rating

35 KAIC

480 Vac Interrupting Rating

35 KAIC

600 Vac Interrupting Rating

22 KAIC

Trip Function

LSI

Continuous Current Rated

Standard

Suitable for Reverse Feed

Yes

Lugs

TCAL29

Long Time

Fixed

Short Time

Adjustable

Instantaneous

Adjustable

Current Metering

No

Protective Relays

No

Special Markings

HACR

GSA Compliance

No

Classifications

UL File #

E11592

CSA File#

LR40350

PRODUCT DATASHEET

SFHA36AT0250
