Description

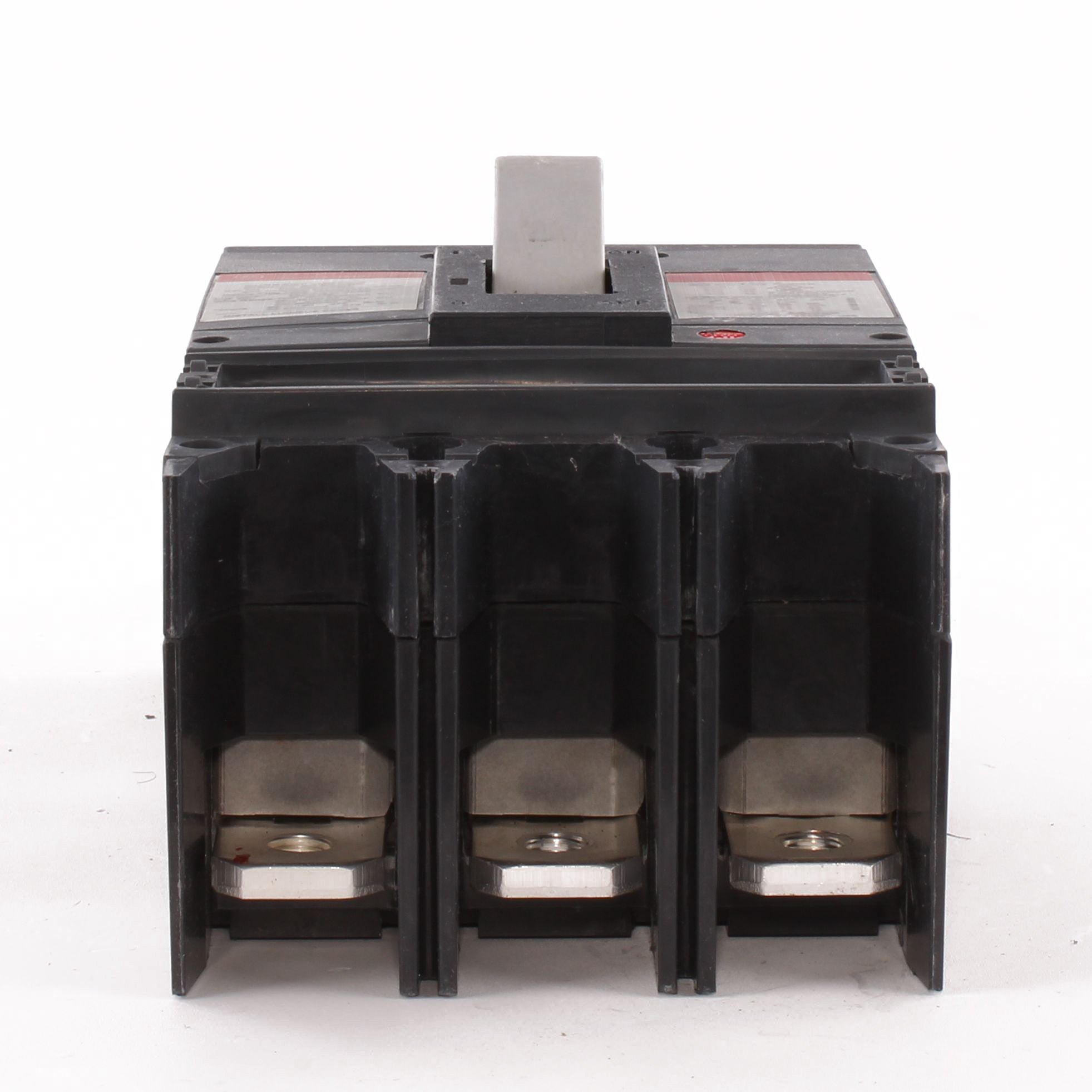

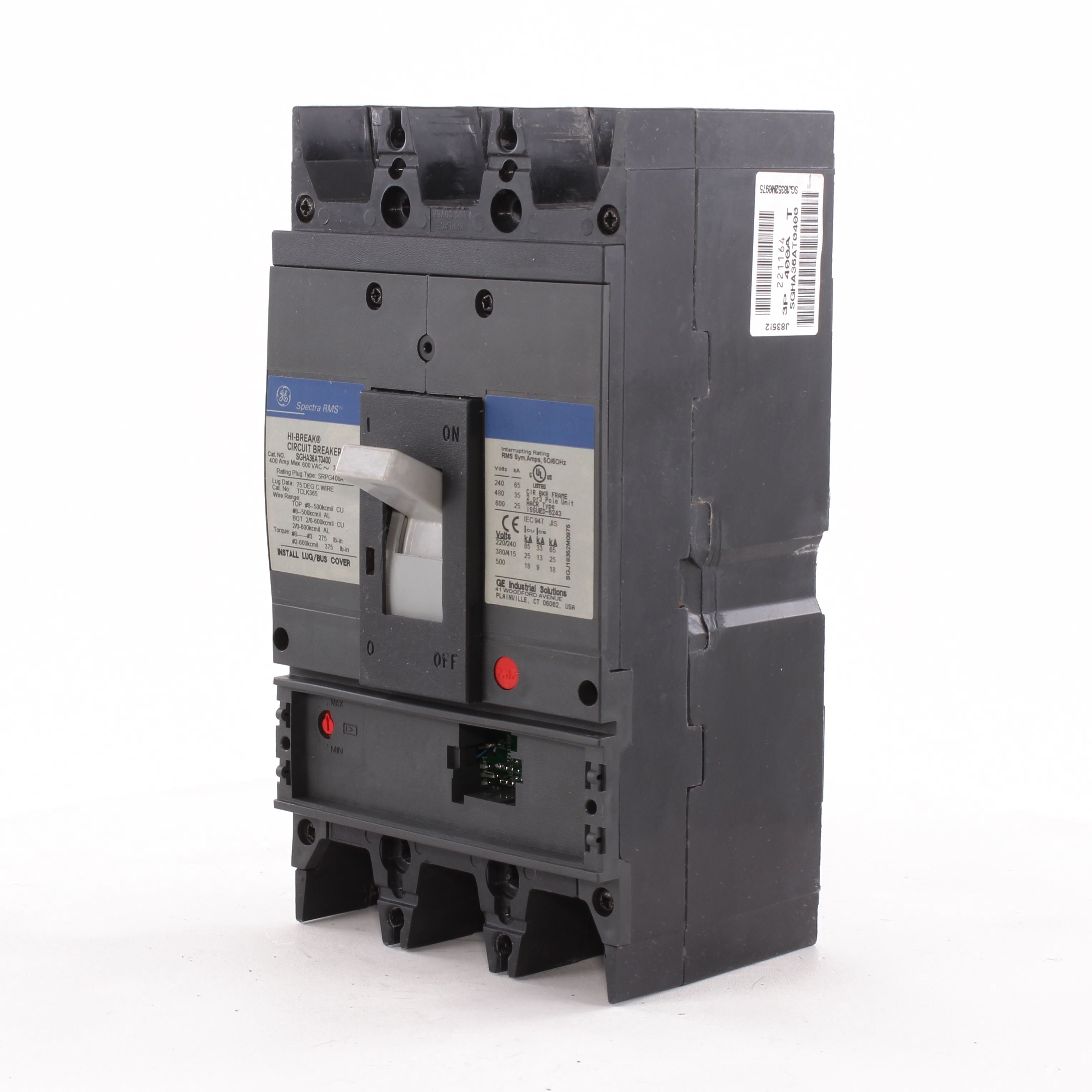

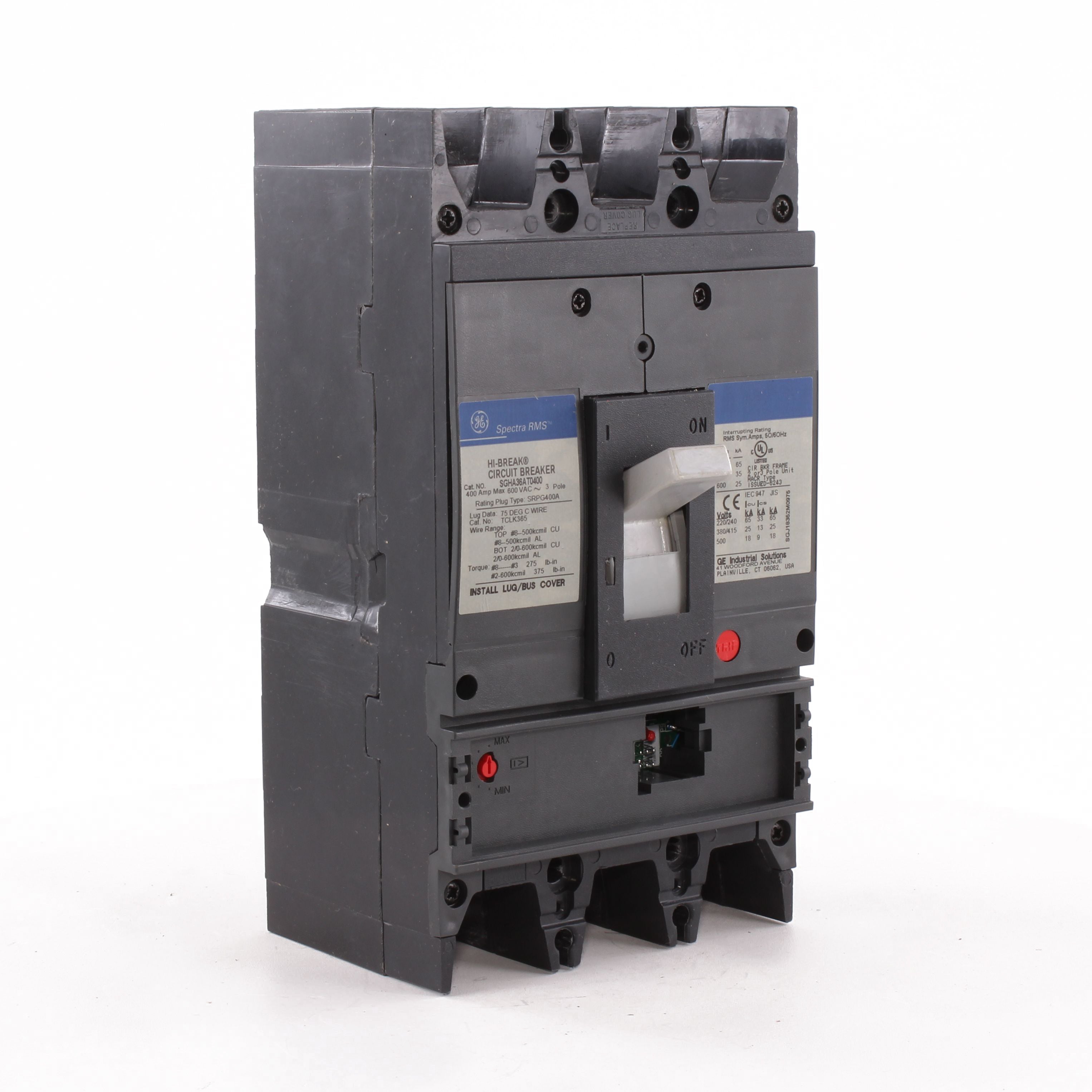

SGHA36AT0400 - General Electric - 400 Amp 3 Pole 600 V Circuit Breaker
The SGHA36AT0400 is a General Electric (GE) molded case circuit breaker. It is a 3-pole, 400 amp, 600V breaker with a solid-state, RMS-sensing trip system. It is designed for industrial and commercial power distribution and features adjustable Long-Time, Short-Time, and Instantaneous (LSI) protection.
TECHNICAL SPECIFICATIONS
| Field | Value |
|---|---|
| Part Number | SGHA36AT0400 |
| Manufacturer | General Electric |
| Family | Spectra Series |
| Pole | 3 |
| Amp | 400 |
| Volt | 600 |
| Phase | 3 |
| Category | Molded Case / 3-Pole |
| Connection | Bolt-On |
| Type | SGHA |
| Functions | LSI - Long-Time, Short-Time and Instantaneous |
| Protection | Solid State |
| AIC Ratings | 35kA@480V |
| Weight | 14.21 lbs |
