Description

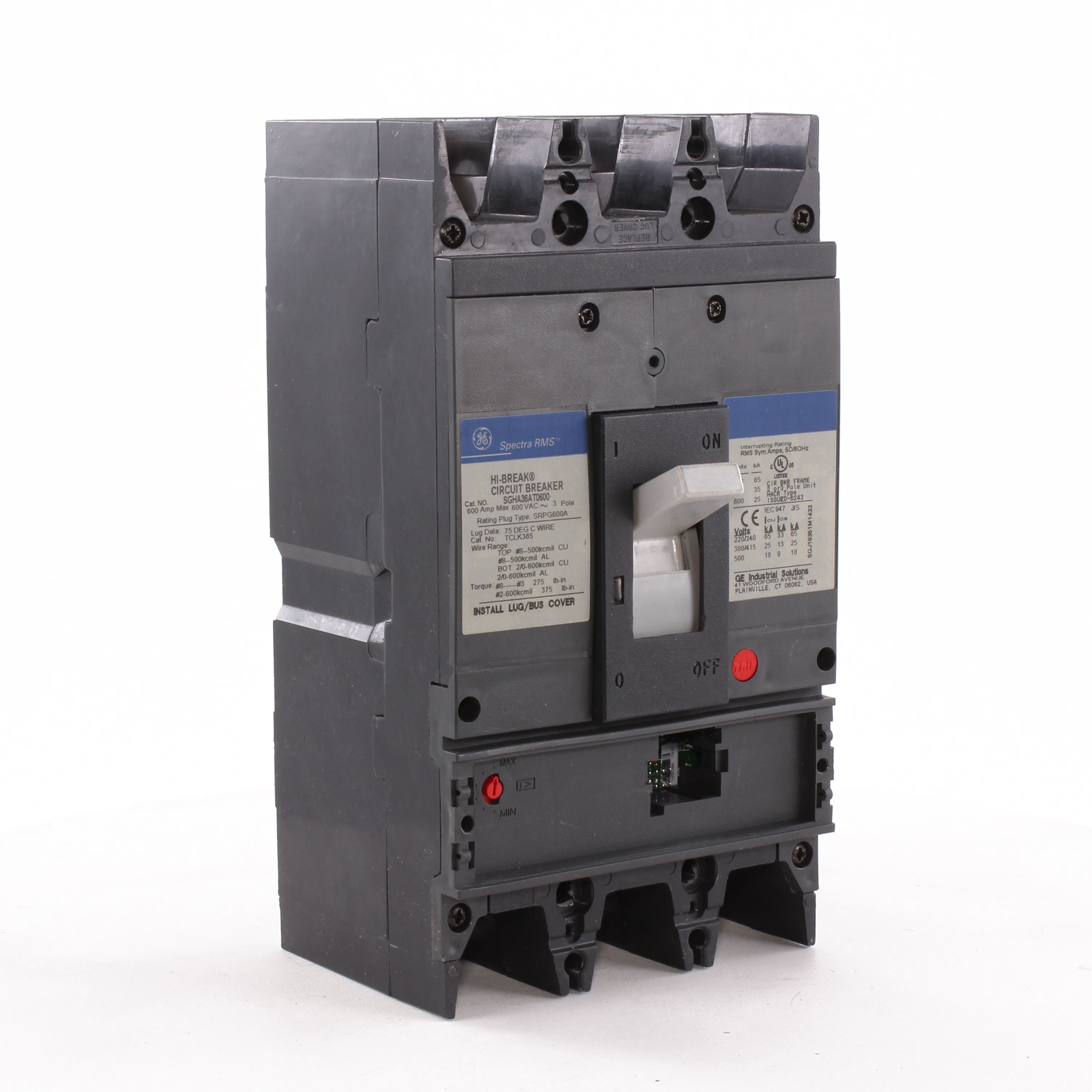

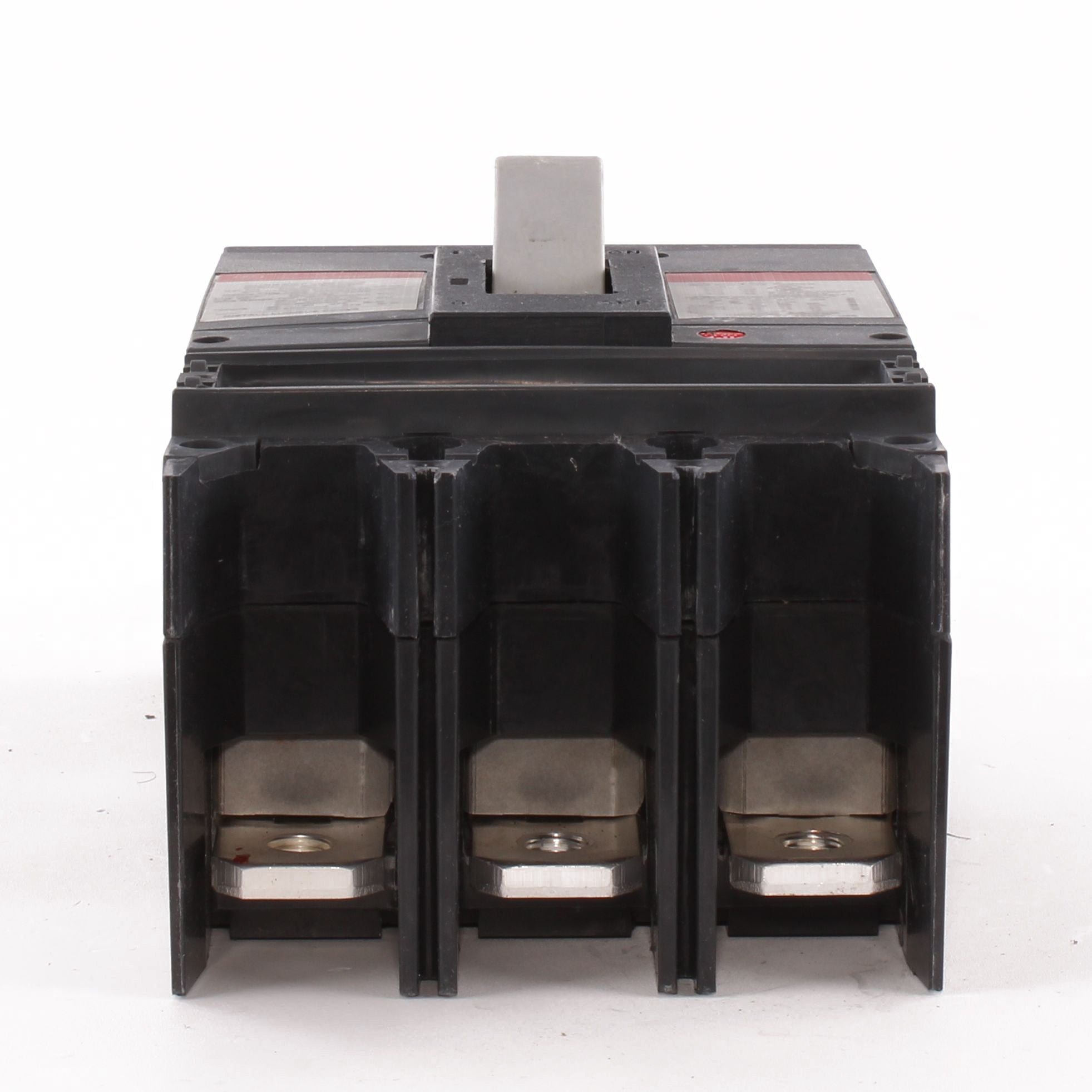

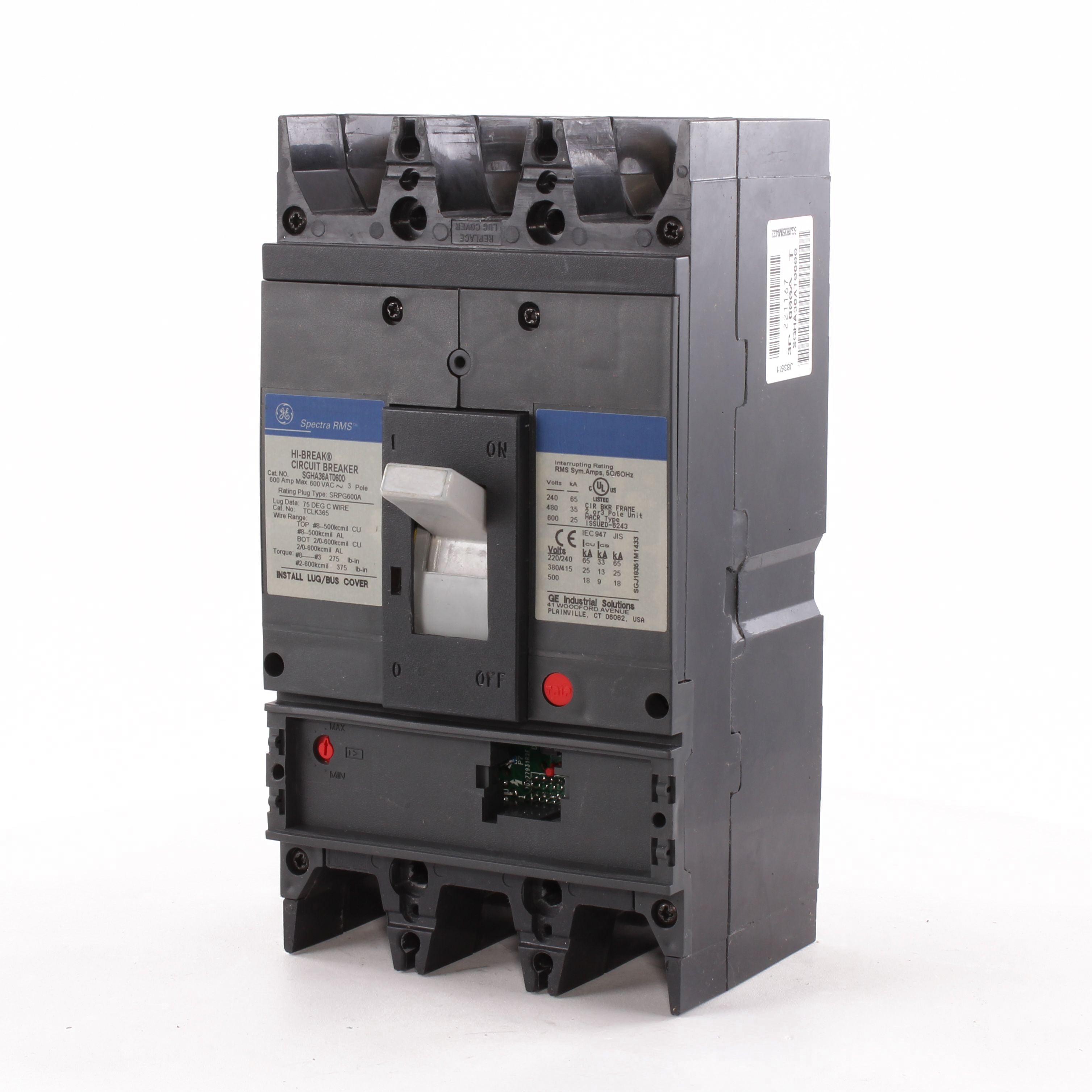

SGHA36AT0600 - General Electric - 600 Amp 3 Pole 600 V Circuit Breaker
Spectra RMS™ molded case circuit breakers (SE150, SF250, SG600 and SK1200) have a digital, solid state, rms sensing trip system with field installable, front mounted rating plugs to establish or change the breaker ampere rating. adjustable instantaneous with tracking short time is standard on all frames. the trip unit uses digital sampling to determine the rms value of sinusoidal and non-sinusoidal currents.
TECHNICAL SPECIFICATIONS
| Brand | GE |
| Actuator Type | Pivot/Toggle Handle |
| Amperage Rating | 600 A |
| Dimensions | 5.5 in W x 3.81 in D x 10.09 in H |
| Enclosure Type | NEMA 1/3R/4/4X/12 |
| Frame | SG600 |
| Frequency Rating | 50 to 60 Hz |
| Interrupt Rating | 25/35/65 kA |
| Manufacturer Name | ABB, ABB Electrification |
| Material | Plastic |
| Mounting Type | Panel |
| Number of Poles | 3 |
| Phase | 3, 3 ph |
| Temperature Rating | 104 deg F |
| Trip Type | Electronic, Electronic LSI/Interchangeable |
| Type | Type SGH Standard Continuous Load Current Limiting |
| Voltage Rating | 600 VAC |
| Wire Size | 2/0 AWG to 500 kcmil, 8 AWG to 600 kcmil, 6 AWG to 600 kcmil |
