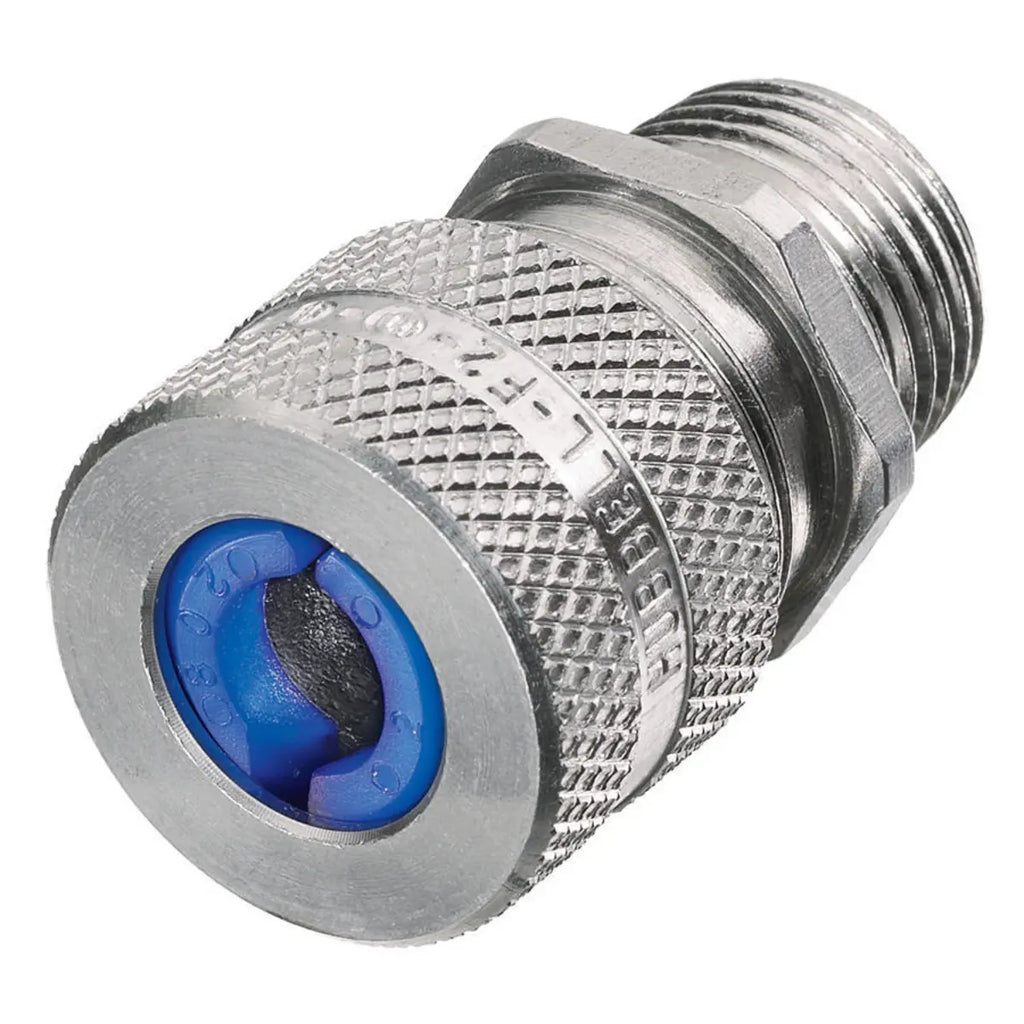

Kellems Wire Management, Cord Connectors, Straight Male, .38-.50", 1/2", Aluminum
Cord Connectors - Hubbell has the broadest line and the widest choice of materials in the industry. NPT hub sizes from ¼" to 3" in straight male end, 90°, 45°, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. The zinc-plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc-plating. These heavy-duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials. Their machined steel nut and body allows for tightening the compression nut and NPT hub without worrying about stripping the threads. For larger size cord, NPT hub sizes 1" to 2", Hubbell utilizes malleable iron connectors which provide excellent holding and Liquidtight performance. Hubbell’s nylon cord connectors resist most common industrial corrosives and provide highly effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue. They’re available in NPT hub sizes from ¼" to 1". Stainless steel cord connectors provide superior strength and corrosion resistance for industrial and military applications. They are machined from 300 series stainless steel and come in ¼" to 1", NPT hub sizes.
- Aluminum cord connector provides durable performance
- Knurled finish makes them easy to handle and maintain UL listing by hand tightening
- Lightweight design
GENERAL SPECIFICATIONS
| Application |
Straight Male - Form 2 |
| Catalog Number |
SHC1023 |
| Color Code |
Blue |
| Environmental Conditions |
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| EU RoHS Indicator |
Yes |
| Item Type |
Cord Connectors |
| Material |
Aluminum |
| Material - Mounting Hardware |
Locknut or Tapped Opening |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Performance |
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC
- Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
|
| Series |
Standard Duty |
| Specifications |
- Cord Diameter Range Inches (mm) - .38"-.50" (9.7-12.7)
- Form Size - F2
- Material - Aluminum
- NPT Hub Size - 1/2 Inch
|
| Temperature Rating |
Minimum -30°F to 225°F (-34°C to 107°C) |
| Type |
Straight Male |
| UPC |
783585200231 |
Dimensions
|
Display Size
|
1/2 " NPT |
| Hub Size |
1/2 " |
Conductor Related
| Conductor Range |
0.38- 0.5 in (9.7-12.7 mm) |
| Number of Conductors |
Single |
Operational
| Performance |
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC
- Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
|
| Temperature Rating |
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
Logistics
|
Carton Quantity
|
50 |
| Pallet Quantity |
14000 |
