Description

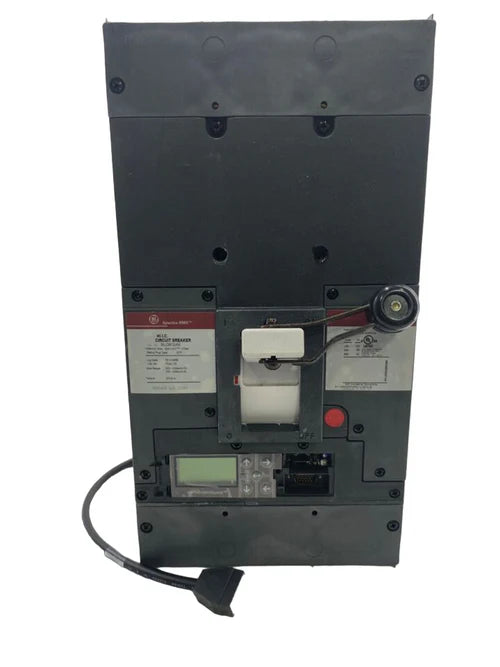

SKLC3612L4XX - General Electric - 1200A 600V 3 Pole Bolt-On Molded Case Circuit Breaker
SKLC3612L4XX is a General Electric 3 pole, 1200 amp, 600 volt bolt-on molded case circuit breaker with a 65kA interrupting rating at 480V.This SK frame breaker features an electronic MicroEntelliGuard trip unit with adjustable LIT trip settings, suitable for 240/480/600 VAC systems. It offers a high interrupting capacity of 100kA at 240 VAC and 65kA at 480 VAC, with UL and CE certifications. Designed for industrial and commercial applications, it includes field-installable accessories and rating plugs.
TECHNICAL SPECIFICATIONS
| Amperage | 1200A |
| Voltage Rating | 600V AC |
| Poles | 3 |
| Mounting Type | Bolt-On |
| Interrupting Rating | 65kA @ 480V, 42kA @ 600V |
| Frame | SK |
| Trip Unit | Electronic MicroEntelliGuard with adjustable LIT trip |
| Certifications | UL, CE |
| Dimensions | 8.25" W x 5.5" D x 15.5" H |
| Suitable for Reverse Feed | Yes |
| Trip Functions | LSIG (Long-time, Short-time, Instantaneous, Ground Fault) |
| Part Number | SKLC3612L4XX |
| Manufacturer | General Electric |
| Category | Circuit Breaker |
| Item Subcategory | Molded Case |
| Family | Spectra Series |
| Type | SK |
| Voltage | 600 |
| Amperage | 1200 |
| Phase | 3 |
| Poles | 3 |
| AIC rating | 65kA@480V |
| Connection | Bolt-On |
| Functions | LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault |
| Protection | Solid State |
| UPC | 783164383812 |
| GTIN | 00783164383812 |
| Dimensions | 8.25" X 5.5" X 15.5" |
| Weight | 57 lb |
| Certification | Ul Listed |
