SN0610 - Schneider Electric - Square D Solid Neutral Assembly Safety Switch Series F5/F6 60A/100A

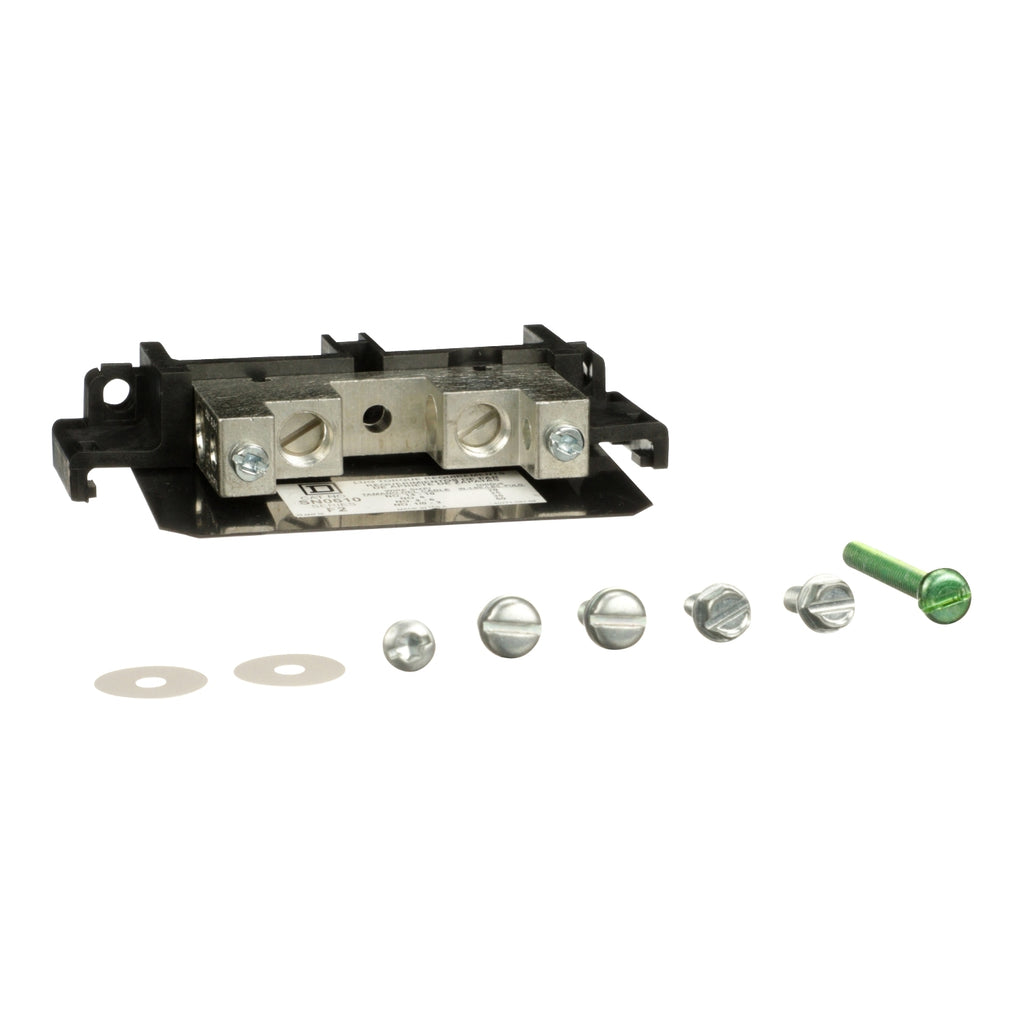

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. The design life of a F-Series switch is a minimum of three times the NEMA requirement. This solid neutral assembly is insulated and groundable. It has one terminal in and one terminal out, with two additional grounding terminals. Each main terminal accepts 14 AWG to 1/0 AWG, and the ground terminal accepts 14 AWG to 6 AWG. This accessory complies with UL and CSA standards.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Safety switch solid neutral assembly |
| Product destination |
Safety switch |
Complementary
| Product Certifications |
UL Listed |
Ordering and shipping details
| Category |
US10DE100058 |
| Discount Schedule |
0DE1 |
| GTIN |
785901751366 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.70 in (9.398 cm) |
| Package 1 Width |
4.50 in (11.430 cm) |
| Package 1 Length |
5.30 in (13.462 cm) |
| Package 1 Weight |
6.720 oz (190.509 g) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
456 |
| Package 2 Height |
40.00 in (101.600 cm) |
| Package 2 Width |
40.00 in (101.600 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
201.00002 lb(US) (91.172 kg) |
