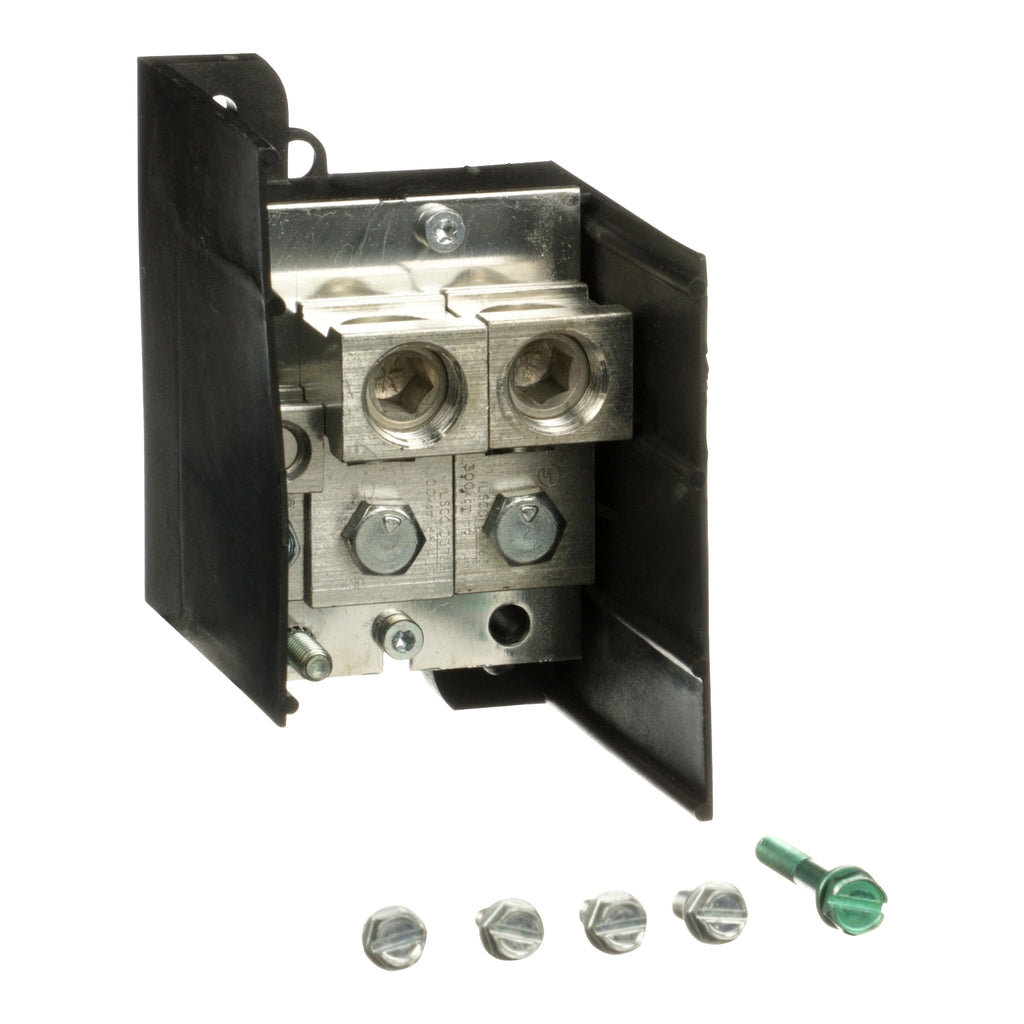

SN20A - Schneider Electric - Square D Solid Neutral Assembly Safety Switch 200A Series F5/F6
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. The design life of a F-Series switch is a minimum of three times the NEMA requirement. This solid neutral assembly is insulated and groundable. It has one terminal in and one terminal out, with an additional grounding terminal. Each main terminal accepts 6 AWG to 250kcmil, and the ground terminal accepts 14 AWG to 10 AWG. This accessory complies with UL and CSA standards.
GENERAL SPECIFICATIONS
| Product or Component Type | Safety switch solid neutral assembly |
|---|---|
| Product destination | Safety switch |
| AWG gauge | AWG 1/0 1 aluminium/copper 250 kcmil 2 aluminium/copper |
|---|---|
| Product Certifications | UL Listed |
| Tightening torque | 275 lbf.in (31.07 N.m) (AWG 6...250 kcmil) 50 lbf.in (5.6 N.m) (AWG 14...AWG 10) 50 lbf.in (5.6 N.m) (AWG 12...AWG10) |
| Category | US10DE100058 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901331605 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.80 in (9.652 cm) |
| Package 1 Width | 6.40 in (16.256 cm) |
| Package 1 Length | 6.80 in (17.272 cm) |
| Package 1 Weight | 15.5 oz (440.0 g) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 40.00 in (101.6 cm) |
| Package 2 Width | 40.00 in (101.6 cm) |
| Package 2 Length | 48.00 in (121.92 cm) |
| Package 2 Weight | 192.0007 lb(US) (87.09 kg) |
