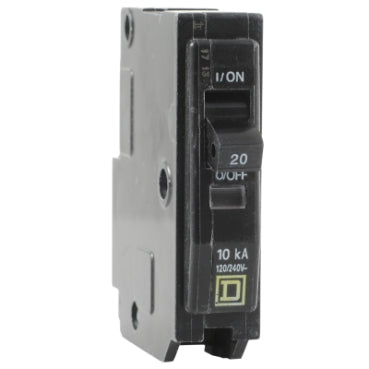

QO120 - Schneider Electric - Plug-In 20 Amp 1 Pole 120 Volt Square D Circuit Breaker
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
GENERAL SPECIFICATIONS
Main
| Product | Miniature circuit-breaker |
|---|---|
| Range | QO |
| Current Rating | 20 A |
| Voltage Rating | 120/240 V AC 120 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 1P |
| Circuit Breaker Type | Standard |
| Ratings | HACR and Switching Duty rated |
| Electrical Connection | Pressure plate |
| Interrupt Rating | 10 kA 120/240 V AC 10 kA 120 V AC |
|---|---|
| Number of Panel Spaces | 1 |
| Wire Size | AWG 14...AWG 8 copper or aluminium |
| Tightening Torque | 35.4 lbf.in (4 N.m) |
| Height | 3.0 in (76 mm) |
| Width | 0.7 in (19 mm) |
| Depth | 2.9 in (74 mm) |
| Net Weight | 0.249 lb(US) (0.113 kg) |
| Certifications | UL Listed CSA |
|---|---|
| Ambient Rating | 104 °F (40 °C) |
| Category | US1DE2A00004 |
|---|---|
| Discount Schedule | DE2A |
| GTIN | 785901400103 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.700 in (1.778 cm) |
| Package 1 Width | 3.00 in (7.62 cm) |
| Package 1 Length | 3.300 in (8.382 cm) |
| Package weight(Lbs) | 4.32 oz (122.47 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.200 in (8.128 cm) |
| Package 2 Width | 3.400 in (8.636 cm) |
| Package 2 Length | 7.700 in (19.558 cm) |
| Package 2 Weight | 2.820 lb(US) (1.279 kg) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 6.800 in (17.272 cm) |
| Package 3 Width | 8.100 in (20.574 cm) |
| Package 3 Length | 17.200 in (43.688 cm) |
| Package 3 Weight | 28.700 lb(US) (13.018 kg) |
