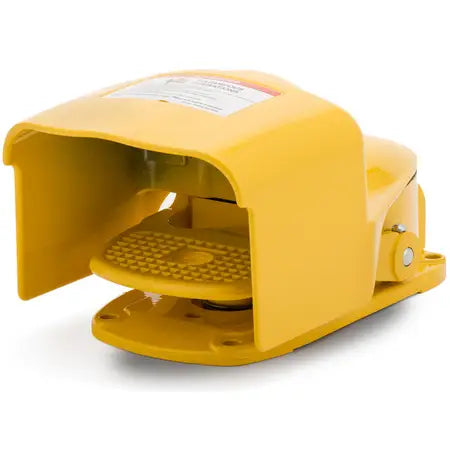

9002AW2 - Schneider Electric - Square D Foot Switch
9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Main | |
| Range | 9002AW |
| Product | Foot switch |
| Contact Operation | 1 step |
| Certifications | UL Listed |
| CSA | |
| Cable Entry | 0.75 inch NPT conduit entrance |
| Contact Arrangement | SPDT |
| Enclosure Rating | NEMA 4/13 |
| Voltage Rating | 600 V AC/DC |
| Protection | Pedal shield |
| Side shield | |
| Operator Action | Spring return |
| Rated Breaking Capacity | 15 A 120 V AC inductive control circuit UL 508 |
| 10 A 240 V AC inductive control circuit UL 508 | |
| 6 A 480 V AC inductive control circuit UL 508 | |
| 5 A 600 V AC inductive control circuit UL 508 | |
| 15 A 120 V AC resistive control circuit UL 508 | |
| 0.5 A 125 V DC resistive control circuit UL 508 | |
| Height | 4.8 in (123 mm) |
| Width | 5.4 in (137 mm) |
| Depth | 9.02 in (229 mm) |
| Ordering and shipping details | |
| Category | US10CS121441 |
| Discount Schedule | 0CS1 |
| GTIN | 785901815921 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 5.800 in (14.732 cm) |
| Package 1 Width | 5.600 in (14.224 cm) |
| Package 1 Length | 12.000 in (30.480 cm) |
| Package weight(Lbs) | 4.438 lb(US) (2.013 kg) |
