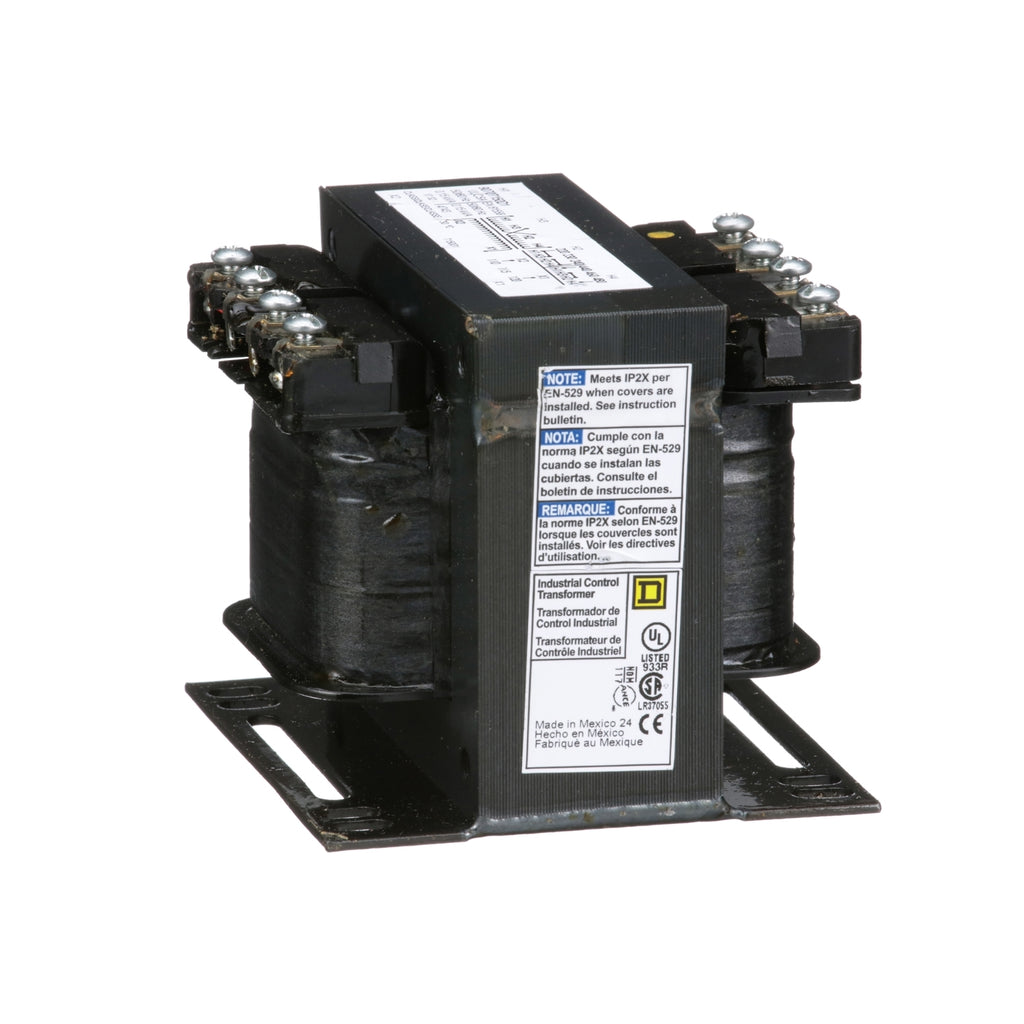

9070T150D1 - Schneider Electric - Square D Industrial Control Transformer
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 150VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
GENERAL SPECIFICATIONS
| Main | |
| Product Type | Industrial Control Transformer |
| Type | T |
| Complementary | |
| Number of Phases | 1 phase |
| Power Rating | 150 VA UL |
| 150 VA CSA | |
| 150 VA NOM | |
| 150 VA CE | |
| Primary to Secondary Voltage | 240 x 480 V 120 V |
| 230 x 460 V 115 V | |
| 220 x 440 V 110 V | |
| Temperature Rise | 55 °C |
| Electrical Connection | Screw clamp terminals |
| Height | 3.2 in (81.3 mm) |
| Width | 3.75 in (95.25 mm) |
| Depth | 3.59 in (91.19 mm) |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC1 |
| Environment | |
| Certifications | CSA file LR37055 guide 184-N-90 |
| UL listed file E61239 | |
| Enclosure Type | Not rated (open device) |
| Insulation Temperature | 221 °F (105 °C) |
| Ordering and shipping details | |
| Category | US10CP816200 |
| Discount Schedule | 0CP8 |
| GTIN | 785901904656 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 5.600 in (14.224 cm) |
| Package 1 Width | 6.400 in (16.256 cm) |
| Package 1 Length | 7.100 in (18.034 cm) |
| Package weight(Lbs) | 5.919 lb(US) (2.685 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 450 |
| Package 2 Height | 40.000 in (101.600 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 48.000 in (121.920 cm) |
| Package 2 Weight | 2506.949 lb(US) (1137.132 kg) |
