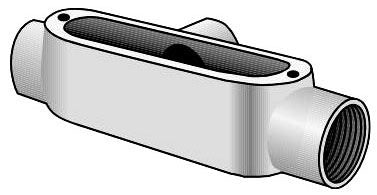

T150A - Appleton - 1-1/2 Inch T Conduit Body, Epoxy Coated Aluminum
Roll over image to zoom in Click on image to zoom
T150A - Appleton - 1-1/2 Inch T Conduit Body, Epoxy Coated Aluminum

T150A - Appleton - 1-1/2 Inch T Conduit Body, Epoxy Coated Aluminum

AppletonSKU: APPT150A
Price:
$71.92
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Specifications

Access Opening Side
Configuration T
Hub Location Tee
Number of Hubs 3
Hub Size 1-1/2 Inch
Size 8.56 Inch Length x 2.75 Inch Height
Installation Threaded
Material Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw)
Form Type Form 85
Approval UL 514A/B, CSA C22.2
Used On IMC/Rigid Conduit
Brand Name Form 85™
Additional Information Wire Size (3) 1 AWG; Capacity 35 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1
Product Datasheet
T150A
