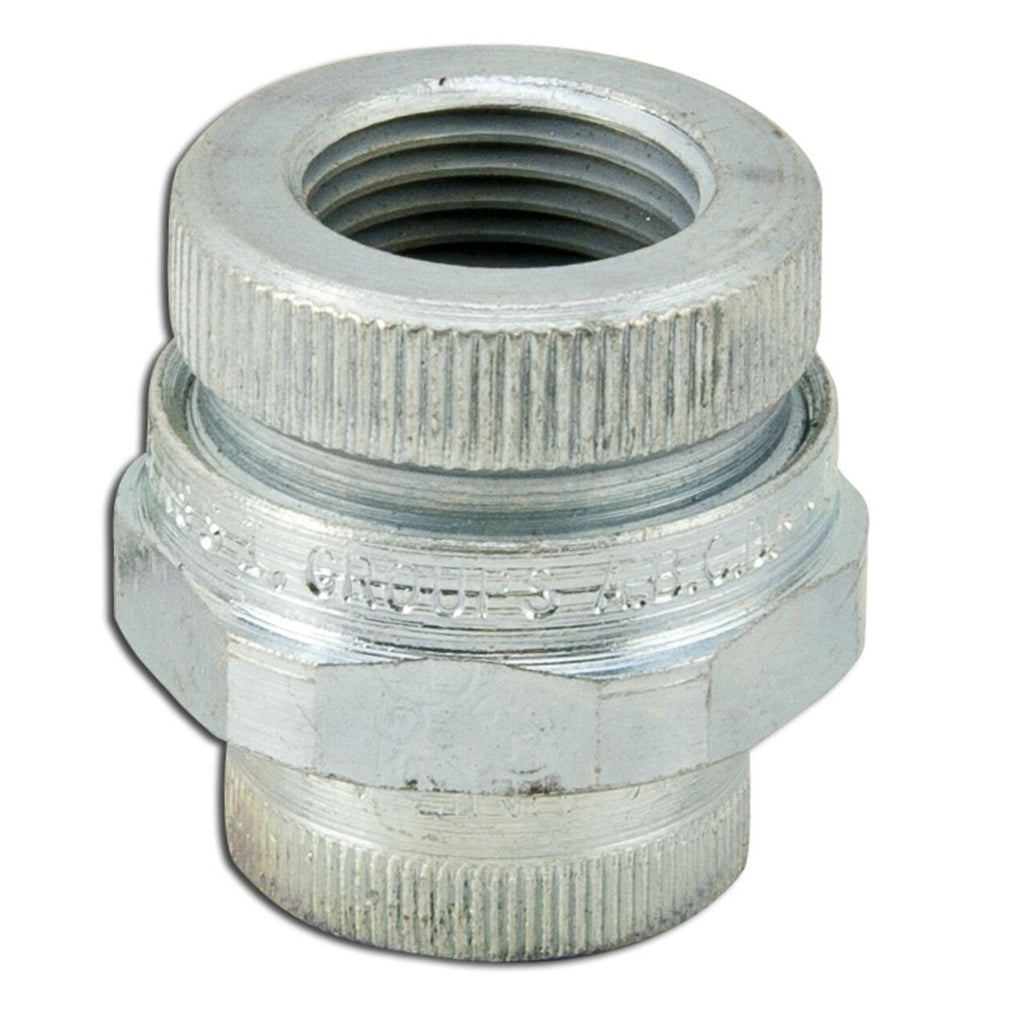

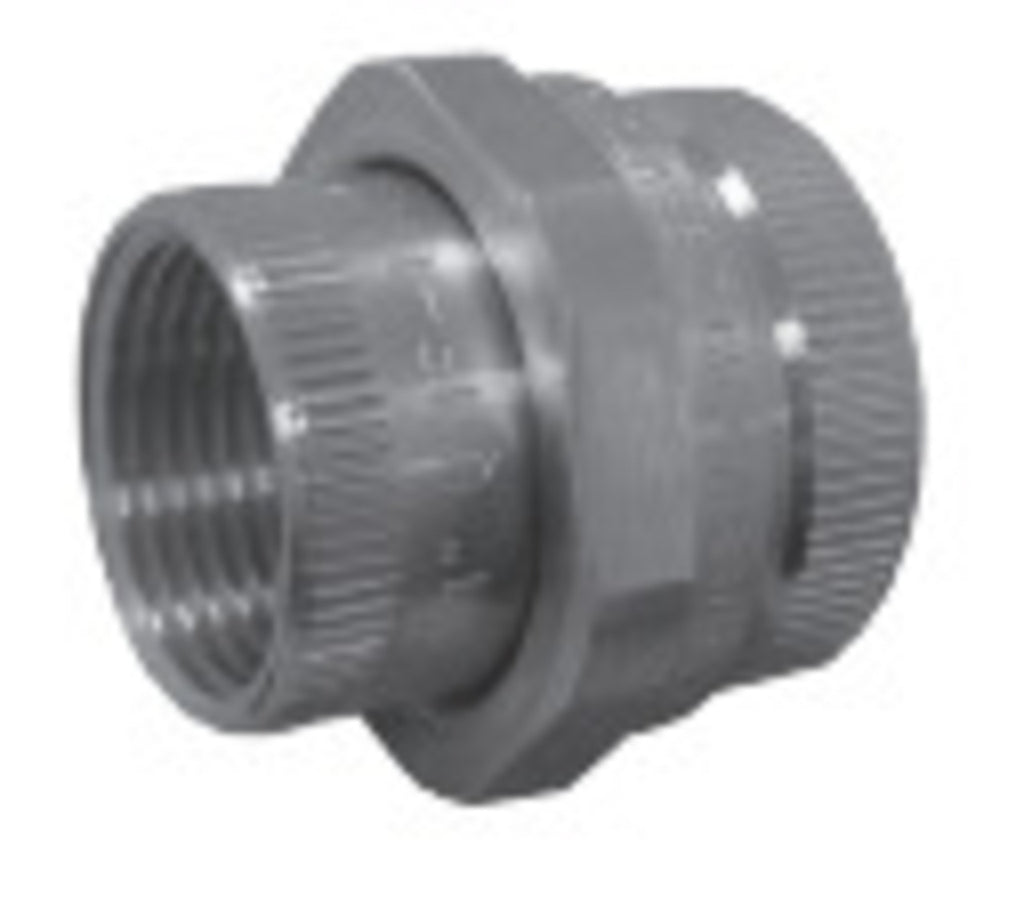

UNF100NR - Appleton - 1" Female/Female Explosion Proof Union
The UNF100NR union enables easy disconnection and maintenance in 1″ conduit systems. Made of durable iron, it offers reliable grounding and is suitable for use in hazardous locations.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standard Materials
- UNY and UNF (non-expansion) unions: 1/2 thru 1: steel or aluminum; 1-1/4 thru 6: malleable iron or copperfree (4/10 of 1% max.) aluminum. UNY and UNF expansion unions: steel. UNL unions: malleable iron and steel
- Standard Finishes
- Malleable iron products: triple-coat (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat. Steel products: zinc electroplate. Aluminum products: epoxy powder coat
- Options
- 1/2, 3/4, and 1 UNF/UNY available in stainless steel (add suffix -SS)
