Description

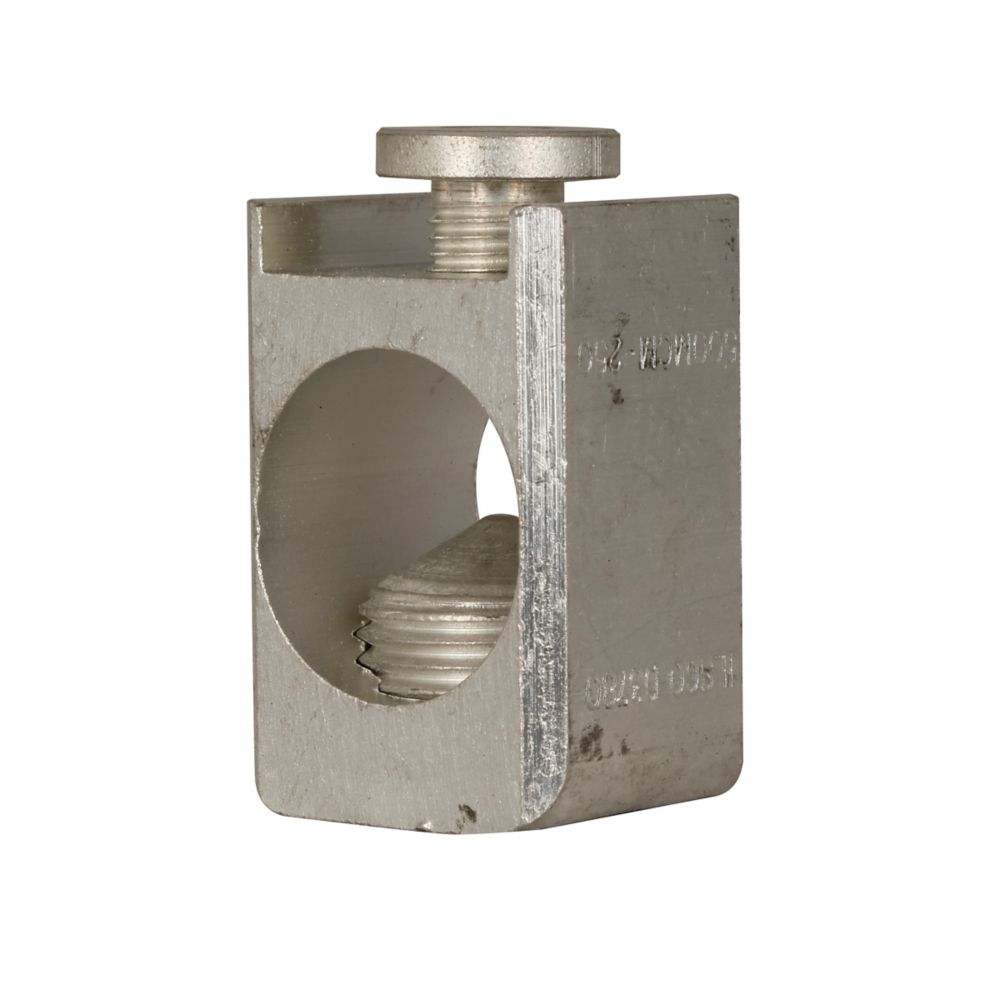

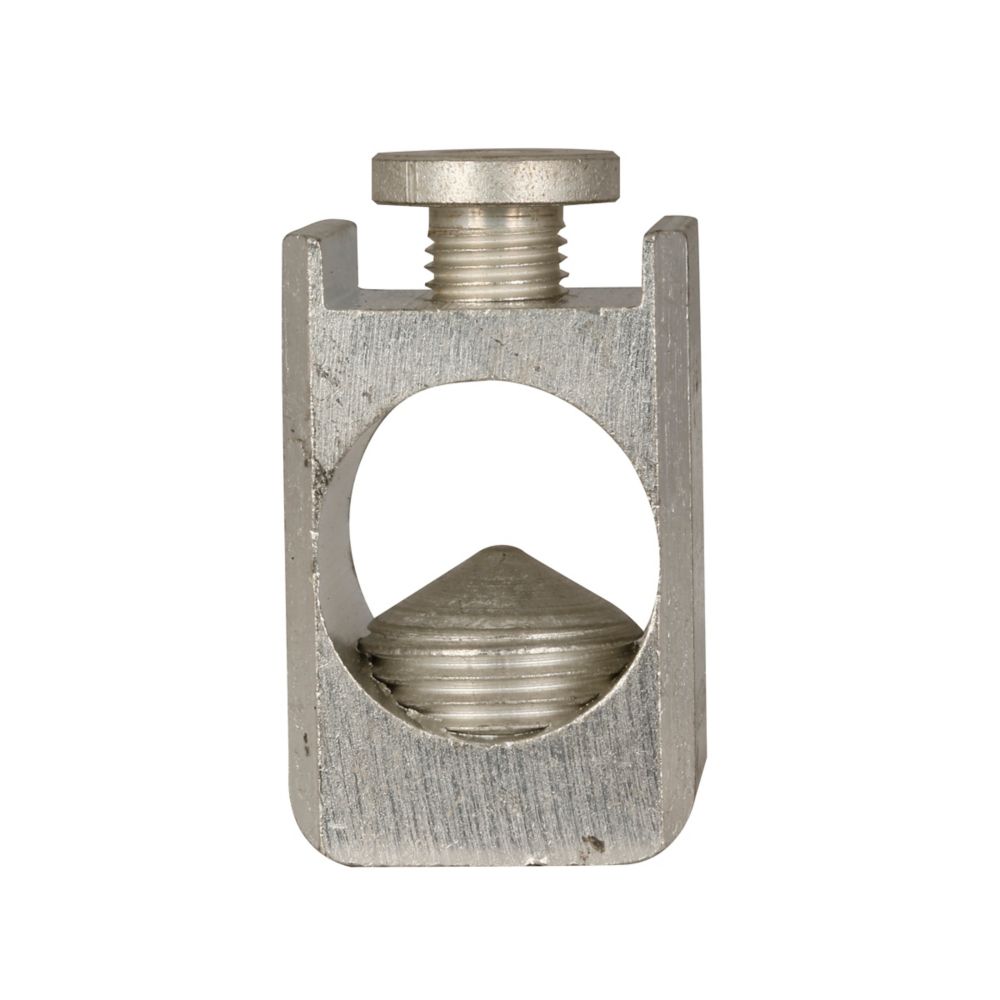

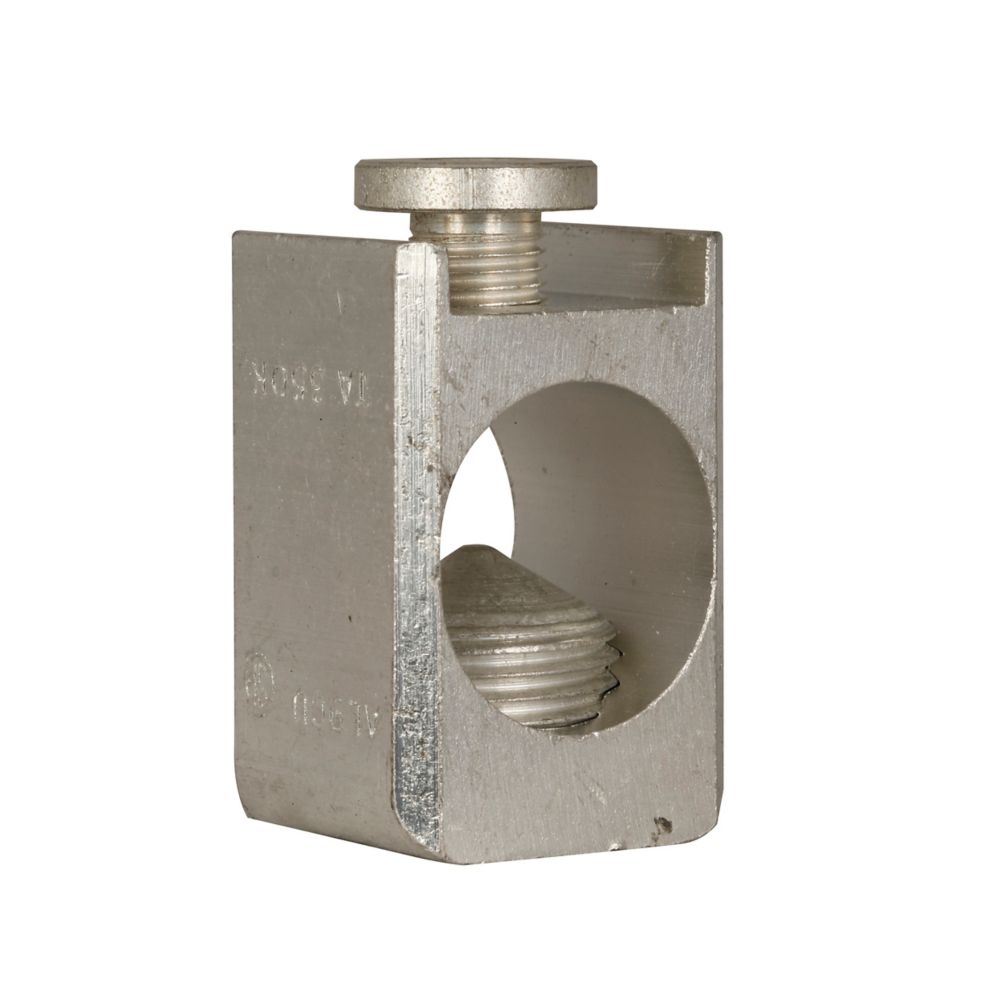

T350K - Eaton Cutler Hammer - 400A Molded Case Circuit Breaker Accessory Line And Load Terminal
The T350K is a line/load pressure-type terminal lug rated for up to 400 A, designed for Series C circuit breakers with wire ranges of 250–500 kcmil Cu. Its compact dimensions (2″ × 1.5″ × 1.3″) and lightweight profile (0.3 lb) make it a robust solution for heavy-duty cable terminations, complete with a full UL listing.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory line and load terminal
|
| Catalog Number |
T350K
|
| UPC |
786679511909
|
| Product Length/Depth |
2 in
|
| Product Height |
1.3 in
|
| Product Width |
1.5 in
|
| Product Weight |
0.3 lb
|
| Compliances |
Contact Manufacturer
|
| Certifications |
UL Listed
|
| Global Catalog |
T350K
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
400 A
|
| Frame size |
Frame J-K
|
| Series |
Series C
|
| Terminals |
Pressure type line and load
|
| Wire size |
250-500 kcmil Cu
|
| Type |
Terminal
|
PRODUCT DATASHEET
