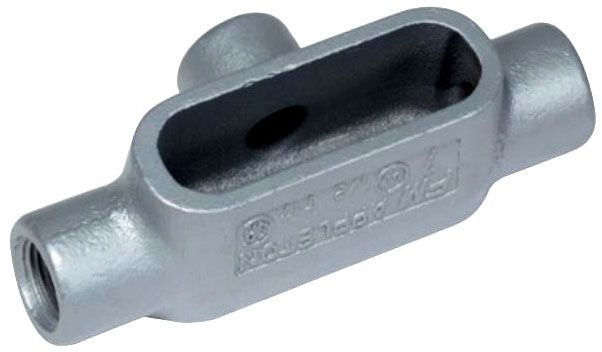

T58 - Appleton - 1-1/2 Inch T Conduit Body, Epoxy Coated Iron
Roll over image to zoom in Click on image to zoom
T58 - Appleton - 1-1/2 Inch T Conduit Body, Epoxy Coated Iron

T58 - Appleton - 1-1/2 Inch T Conduit Body, Epoxy Coated Iron

AppletonSKU: APPT58
Price:
$74.77
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Specifications

Access Opening Side
Configuration T
Hub Location Tee
Number of Hubs 3
Hub Size 1-1/2 Inch
Size 10.38 Inch Length x 4.03 Inch Width x 2.78 Inch Height
Installation Threaded
Material Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw)
Form Type Form 8
Approval UL 514A/B, CSA C22.2
Used On IMC/Rigid Conduit
Brand Name FM8™
Additional Information Wire Size (3) 1/0 AWG, (3) 1 AWG; Capacity 44 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard NEC/CEC, NEMA FB-1
Product Datasheet
T58
