Description

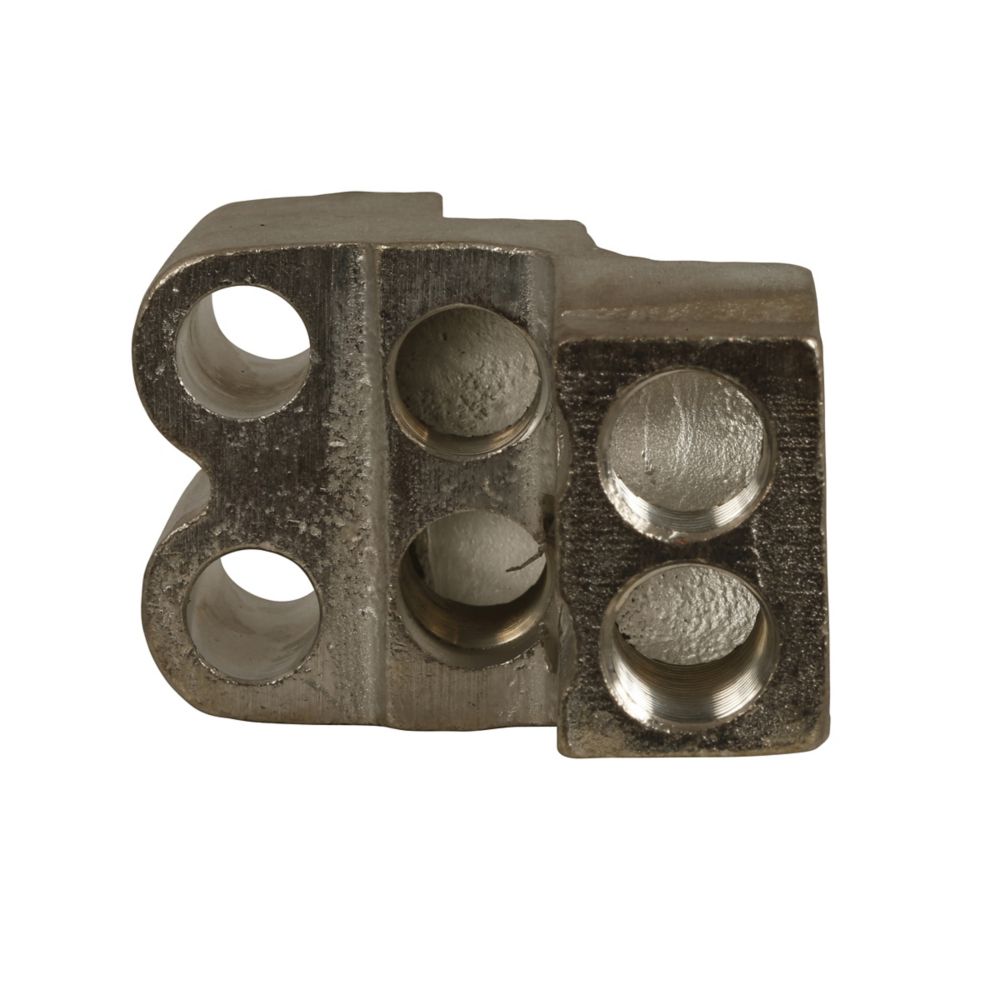

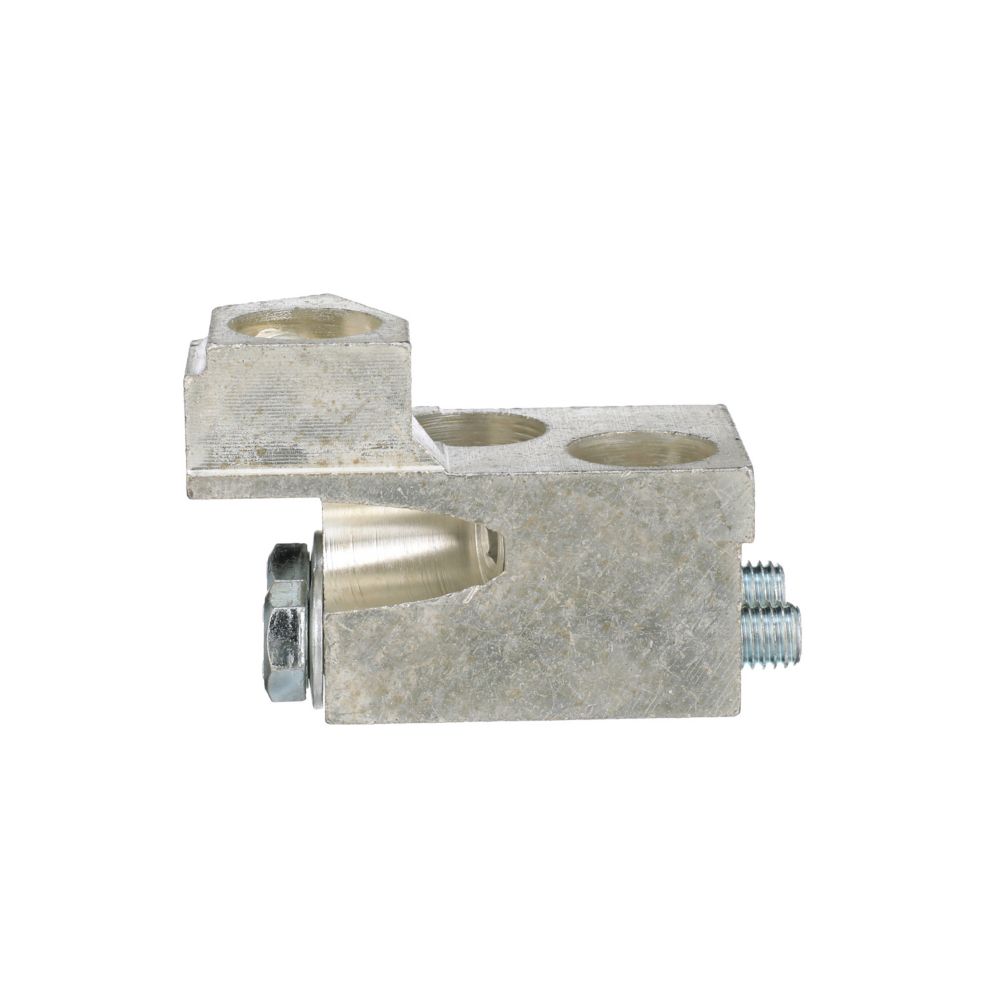

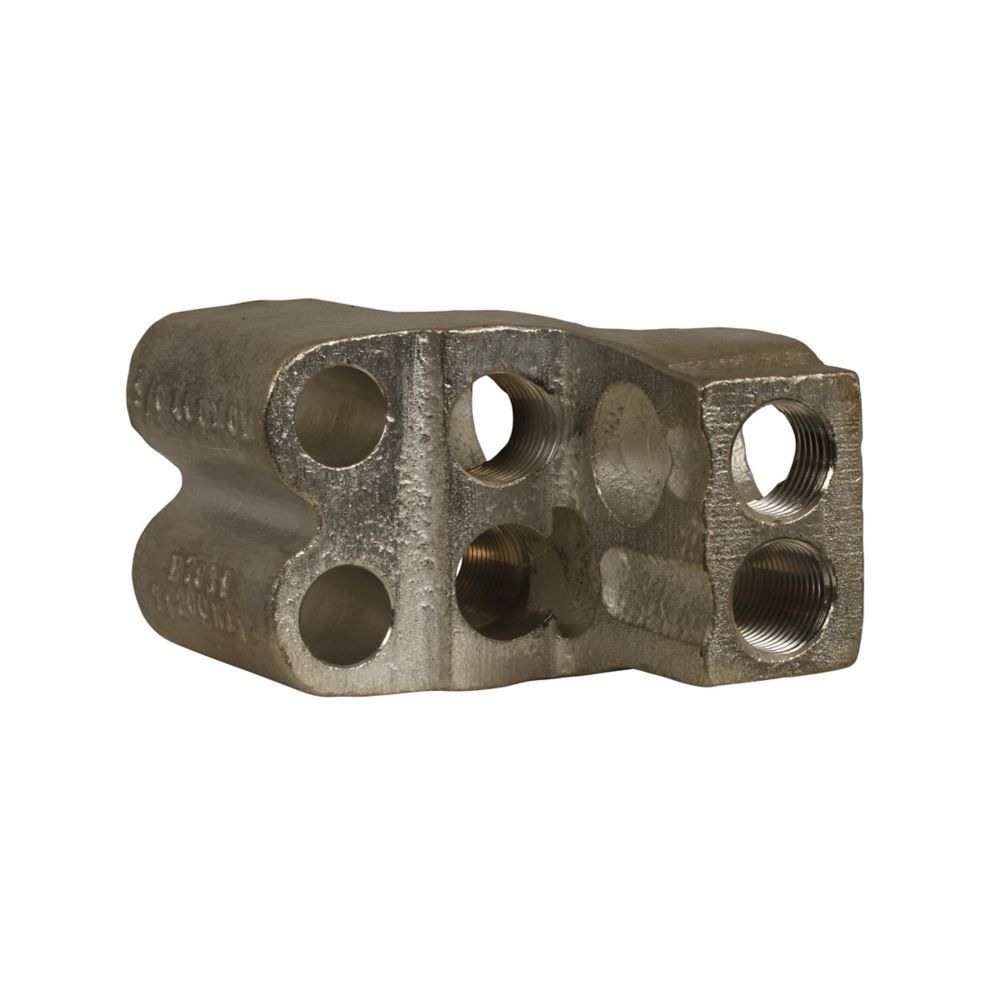

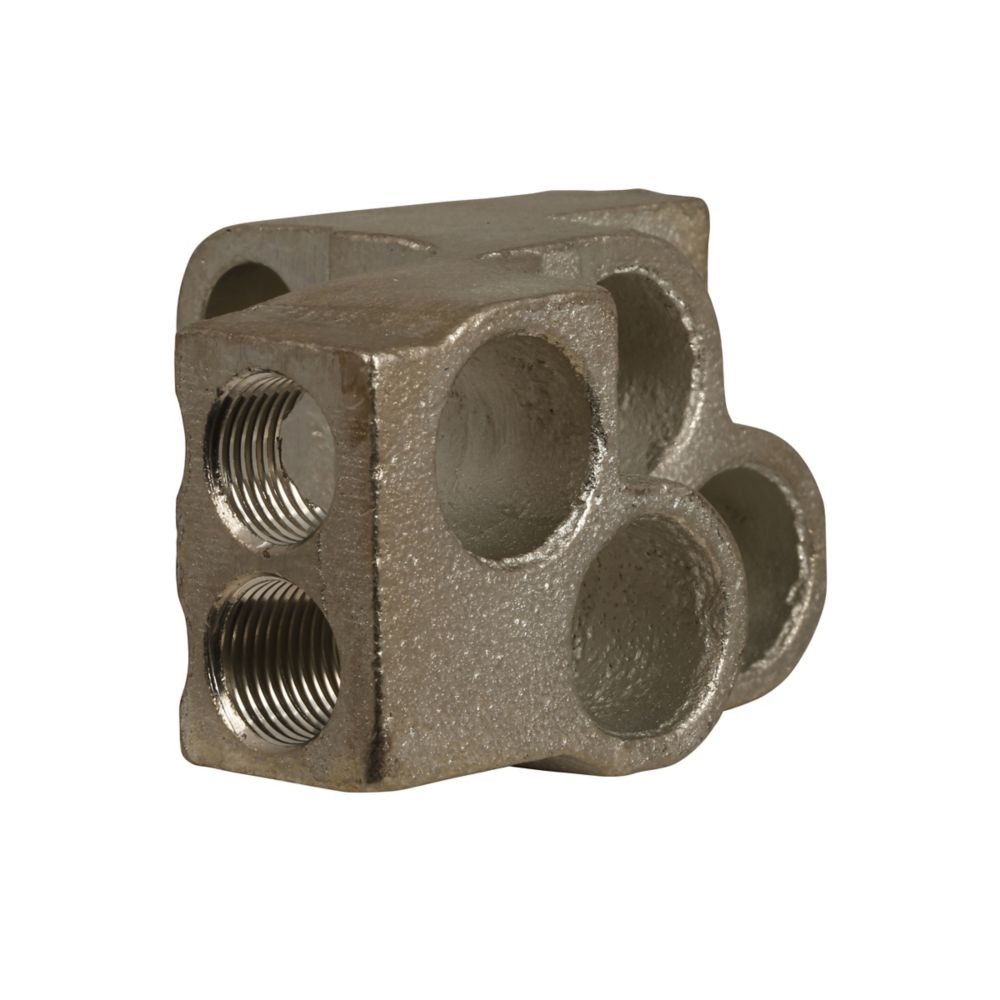

TA1200NB1 - Eaton Cutler Hammer - 1200A - Molded Case Circuit Breaker Accessory Terminal
The Eaton TA1200NB1 is a lug terminal kit designed for heavy-duty applications, supporting up to 1200 A on N-Frame molded-case circuit breakers (Series G, Frame J-K). It features standard copper/aluminum pressure terminals accommodating four conductors sized from #4/0 AWG to 500 kcmil, and is compact at 3.2″ (D) × 2.5″ (W) × 4.5″ (H), weighing 1.25 lb. UL-listed and suited for robust industrial power distribution setups.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory terminal
|
| Catalog Number |
TA1200NB1
|
| UPC |
786679612316
|
| Product Length/Depth |
3.2 in
|
| Product Height |
4.5 in
|
| Product Width |
2.5 in
|
| Product Weight |
1.25 lb
|
| Compliances |
Contact Manufacturer
|
| Global Catalog |
TA1200NB1
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Used with |
N-frame
|
| Amperage Rating |
1200 A
|
| Frame size |
Frame J-K
|
| Series |
Series G
|
| Wire size |
(4) #4/0 AWG-500 kcmil
|
| Type |
Standard Cu/Al pressure terminals
|
PRODUCT DATASHEET
