Description
TA1FD350A - Siemens - 70-250A 2/3 Pole Lug Molded Case Circuit Breakers Accessory

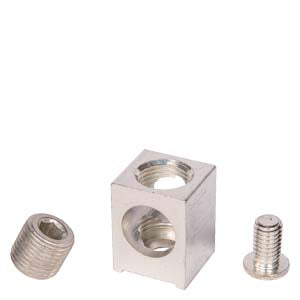

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER ACCESSORY. ALUMINUM BODY LUG FOR 2/3-POLE 70A - 250A FD FRAME BREAKER. WIRE RANGE: 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). SUITABLE FOR LINE AND LOAD SIDES. SINGLE LUG.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:TA1FD350A |
| MFN | TA1FD350A |
| UPC | 783643173408 |
| Commodity Code | 8536904000 |
Pricing related
| Price Group | NK0 |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 21 Day/Days |
| Packaging dimensions (L x W x H) | Not available |
| Net weight | 0.190 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 07/31/2008 |
| SCIP Number | not available |
Siemens specific
| Product Group | 3741 |
| Catalog ID | LV10.1 |
| Group Code | P360 |
| Country of origin | Mexico |
| Returnable Status | Yes |
PRODUCT DATASHEET
