Description
TA250KB - Eaton Cutler Hammer - 250A Accessory Terminal Molded Case Circuit Breakers

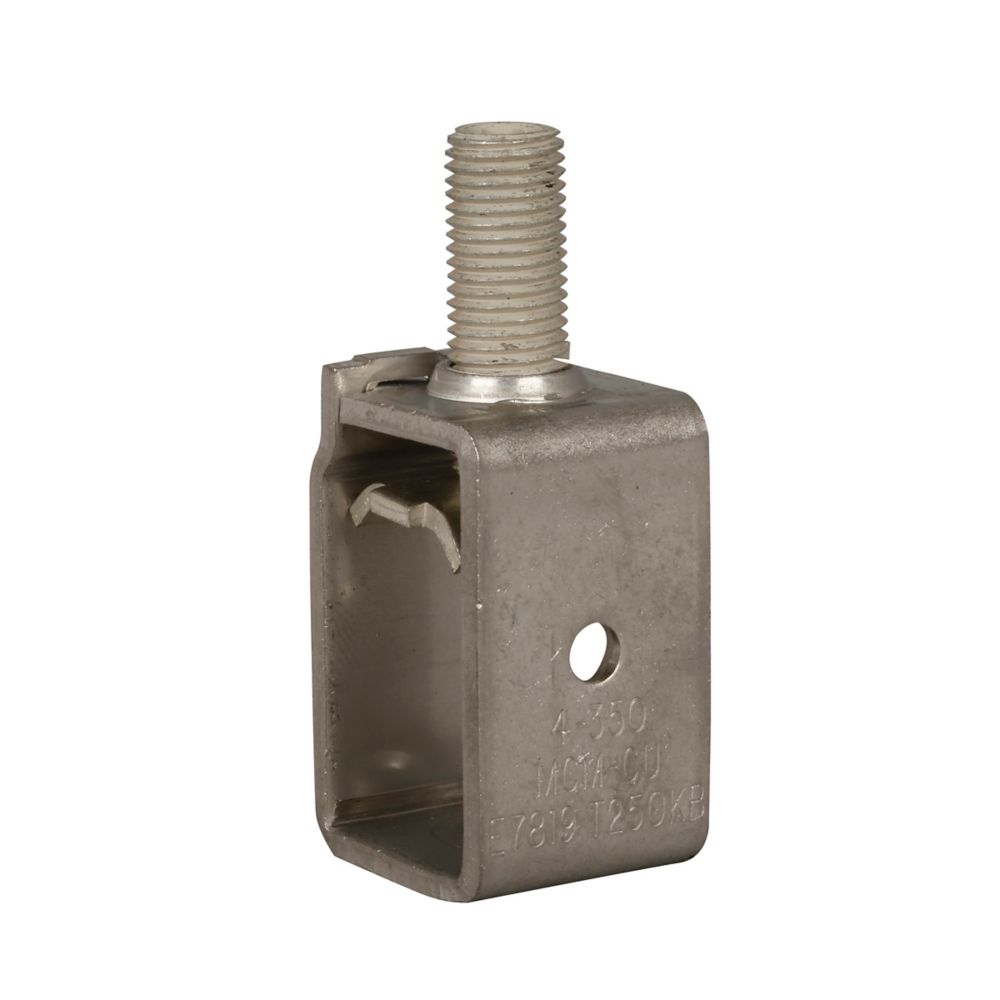

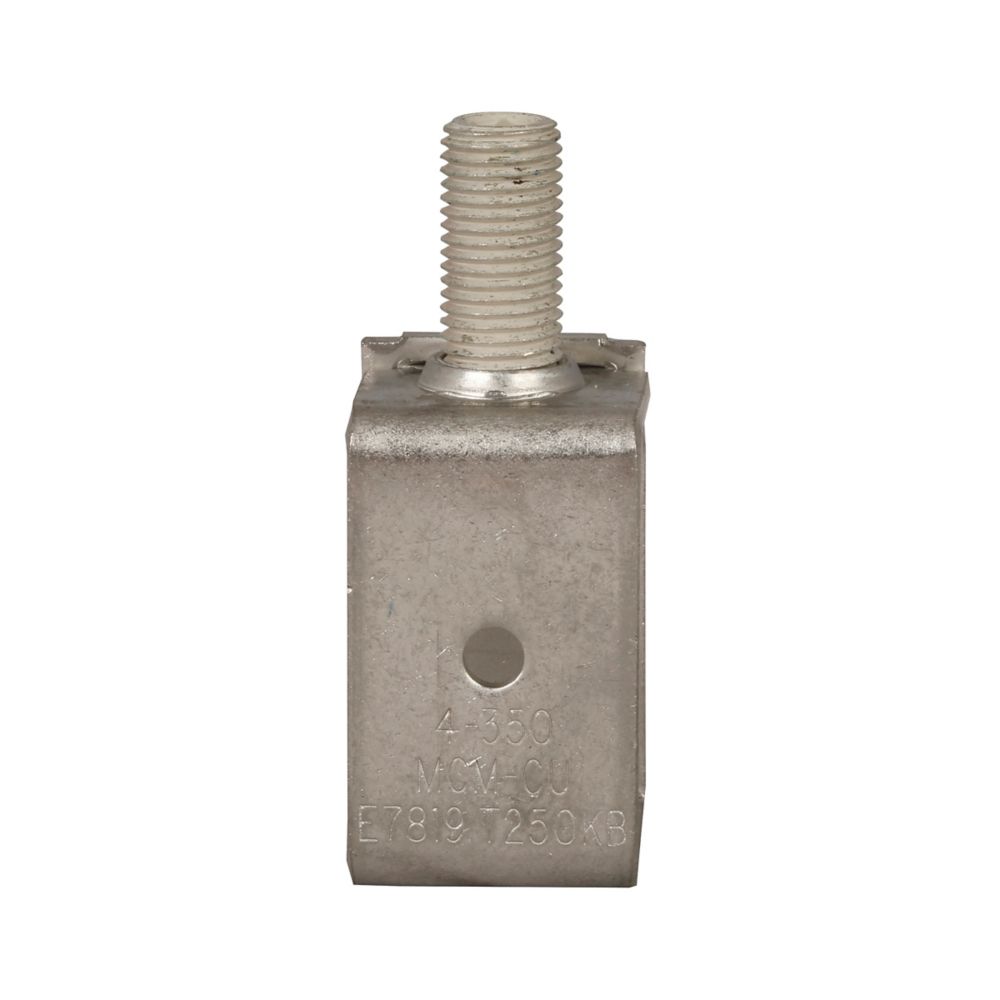

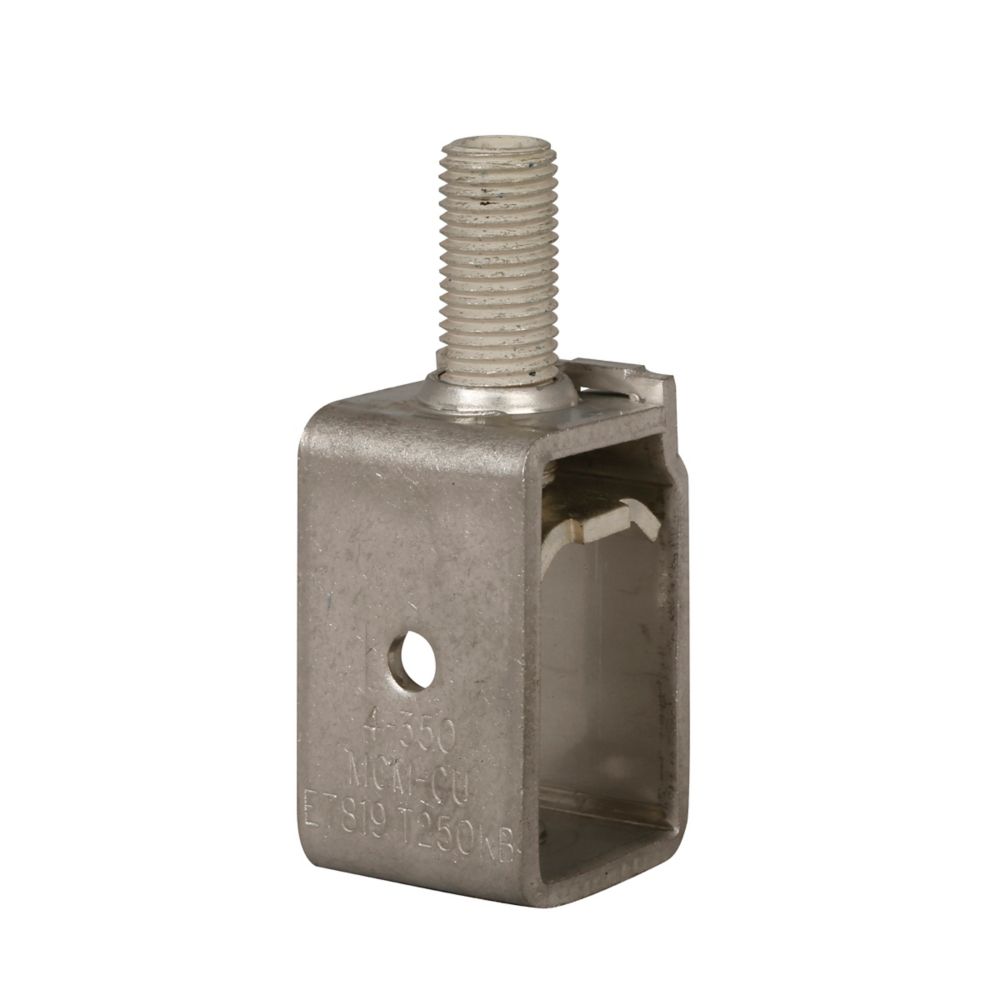

The Eaton TA250KB is a line/load lug terminal kit designed for J-frame, Series C molded-case circuit breakers, rated up to 250 A. It includes a single aluminum pressure-type lug that accommodates Copper conductors ranging from #4 AWG to 350 kcmil, delivering secure termination in both line and load connections. Compact and lightweight at 2″ depth × 1″ width × 0.9″ height (approx. 0.07 lb), it’s UL-listed and perfect for high-current applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory terminal
|
| Catalog Number |
TA250KB
|
| UPC |
786679511961
|
| Product Length/Depth |
2 in
|
| Product Height |
0.9 in
|
| Product Width |
1 in
|
| Product Weight |
0.07 lb
|
| Compliances |
Contact Manufacturer
|
| Certifications |
UL Listed
|
| Global Catalog |
TA250KB
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
250 A
|
| Frame size |
Frame J-K
|
| Series |
Series C
|
| Terminals |
Line and load
|
| Wire size |
#4 AWG-350 kcmil Cu
|
| Type |
Optional Cu pressure terminals
|
PRODUCT DATASHEET
