Description

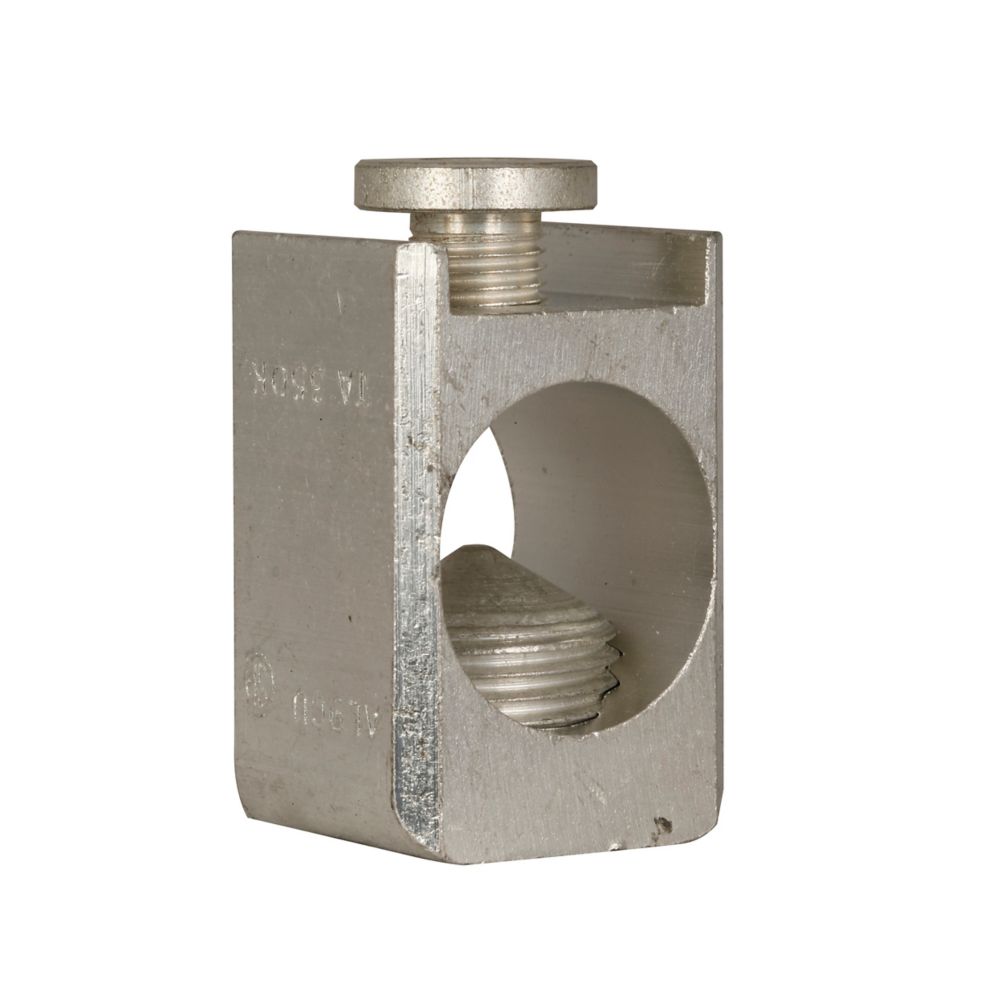

TA300K - Eaton Cutler Hammer - 225A Accessory Terminal Molded Case Circuit Breakers
The Eaton TA300K is a single lug terminal designed for K-Frame (Series C) circuit breakers, rated up to 225 A. It supports one conductor sized between #3 AWG and 350 kcmil in either copper or aluminum, using pressure-type line/load connections. At a compact size of approximately 1.4″ × 1.5″ × 2.3″ and light weight (~0.1 lb), it’s a UL-approved, space-saving option for panelboard terminations.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory terminal
|
| Catalog Number |
TA300K
|
| UPC |
786679422458
|
| Product Length/Depth |
2.3 in
|
| Product Height |
1.4 in
|
| Product Width |
1.5 in
|
| Product Weight |
0.1 lb
|
| Certifications |
UL Listed
|
| Global Catalog |
TA300K
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
225 A
|
| Frame size |
Frame J-K
|
| Series |
Series C
|
| Terminals |
Pressure type line and load
|
| Wire size |
#3 AWG-350 kcmil Cu/Al
|
| Type |
Terminal
|
