Description

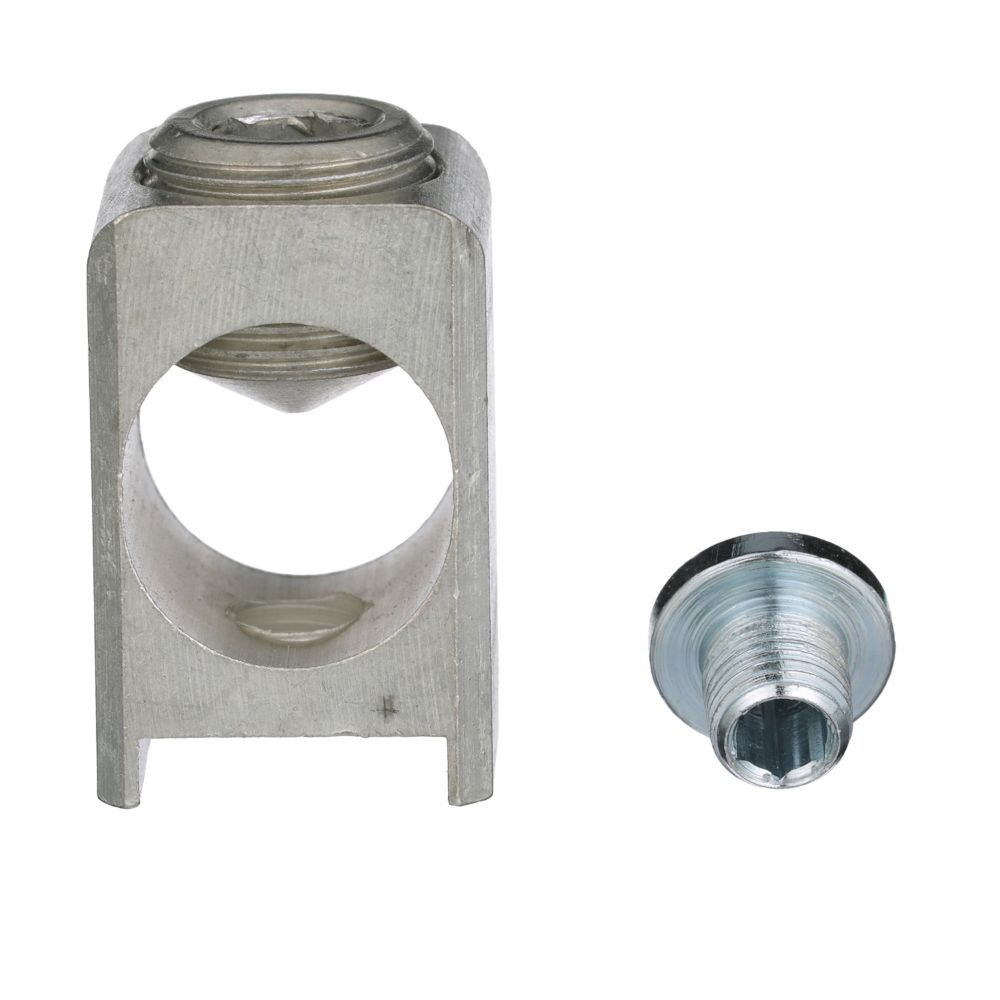

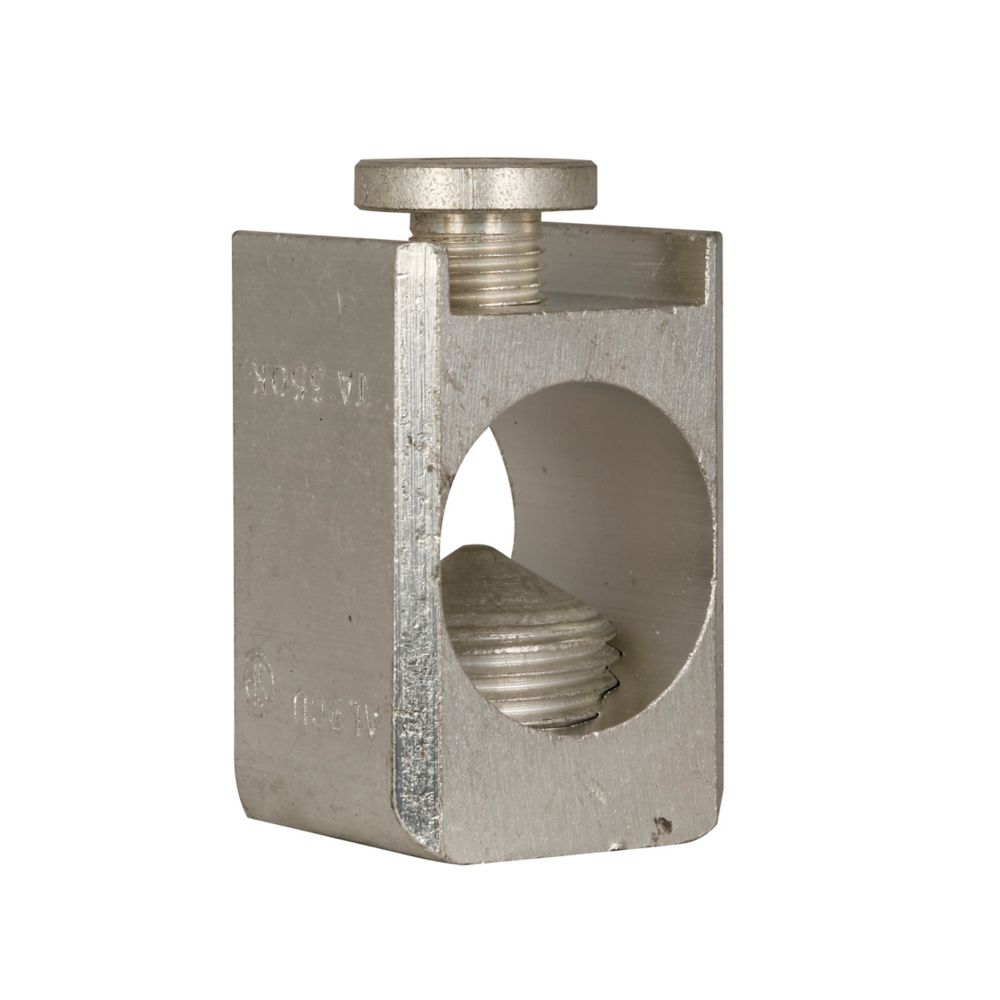

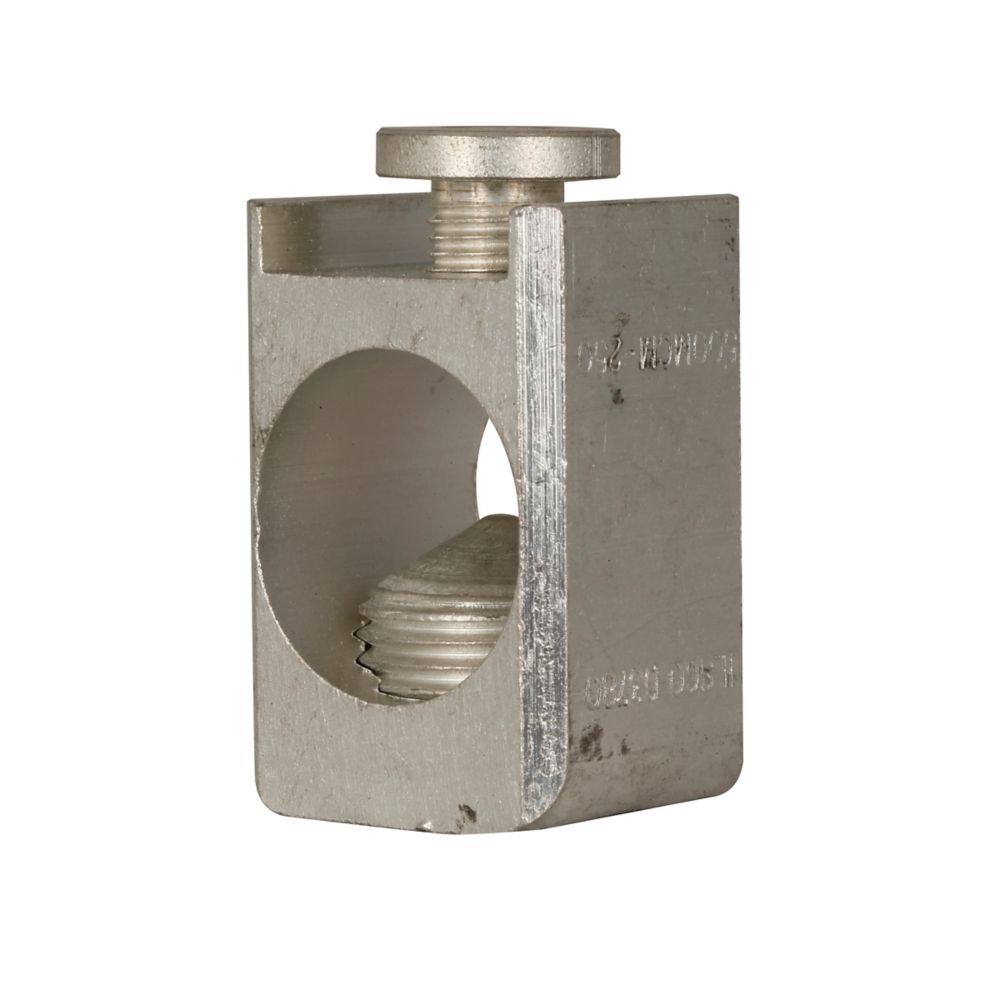

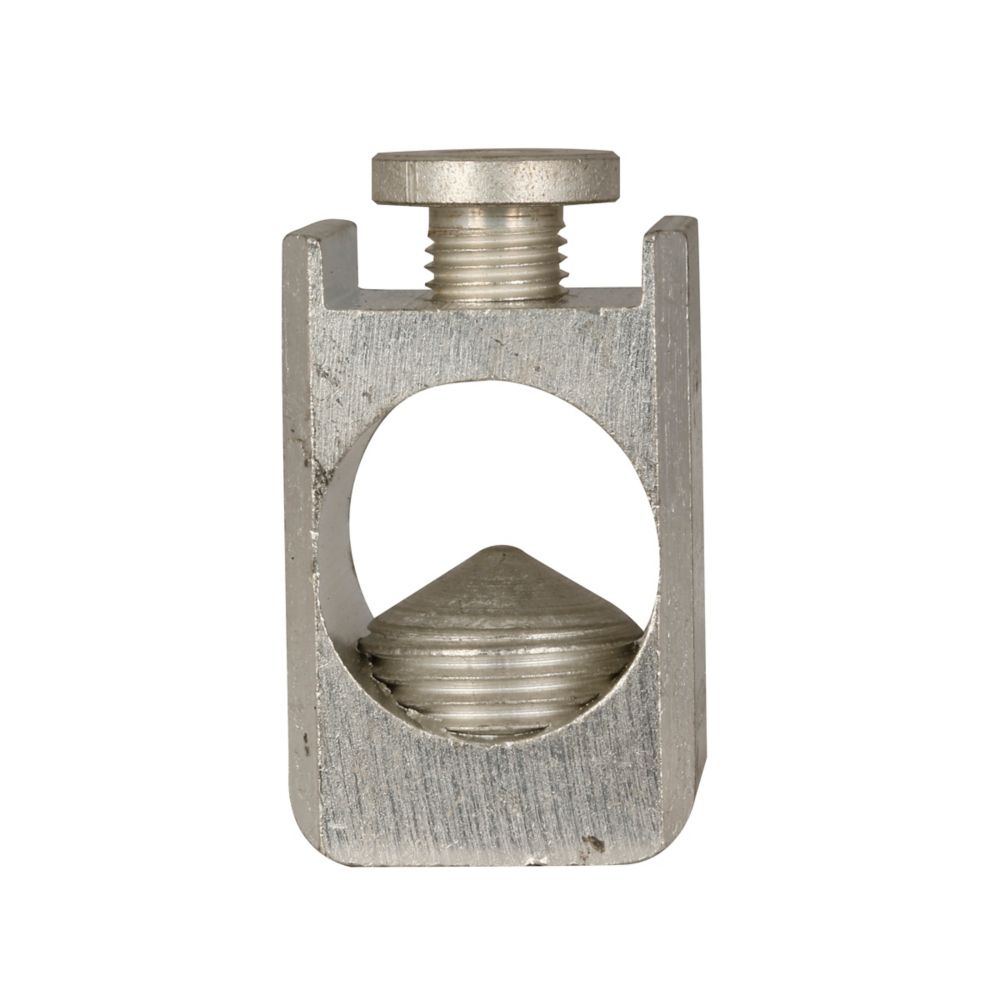

TA350K - Eaton Cutler Hammer - 400A Accessory Terminal Molded Case Circuit Breakers
The Eaton TA350K is a lug terminal kit for J-frame, Series C molded-case breakers, rated at 400 A. It accommodates 250–500 kcmil Cu/Al conductors via pressure-type line/load terminals and is compact at 2.2 × 1.5 × 1.4 in, weighing 0.1 lb—perfect for high-capacity terminations in tight panel spaces. UL-listed for safe and reliable installations.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory terminal
|
| Catalog Number |
TA350K
|
| UPC |
786679422465
|
| Product Length/Depth |
2.2 in
|
| Product Height |
1.4 in
|
| Product Width |
1.5 in
|
| Product Weight |
0.1 lb
|
| Compliances |
Contact Manufacturer
|
| Certifications |
UL Listed
|
| Global Catalog |
TA350K
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
400 A
|
| Frame size |
Frame J-K
|
| Series |
Series C
|
| Terminals |
Pressure type line and load
|
| Wire size |
250-500 kcmil Cu/Al
|
| Type |
Terminal
|
PRODUCT DATASHEET
