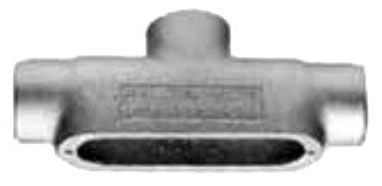

TB50M - Appleton - 1/2 Inch TB Conduit Body, Epoxy Coated Iron
Roll over image to zoom in Click on image to zoom
TB50M - Appleton - 1/2 Inch TB Conduit Body, Epoxy Coated Iron

TB50M - Appleton - 1/2 Inch TB Conduit Body, Epoxy Coated Iron

AppletonSKU: APPTB50M
Price:
$17.43
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Specifications

Access Opening Back
Configuration TB
Hub Location Tee
Number of Hubs 3
Hub Size 1/2 Inch
Size 5.38 Inch Length x 1.31 Inch Width
Installation Threaded
Material Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Cover Screw)
Form Type Form 35
Approval UL 514A/B, CSA C22.2
Used On IMC/Rigid Conduit
Brand Name Form 35™
Additional Information Capacity 4.3 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1
Product Datasheet
TB50M
