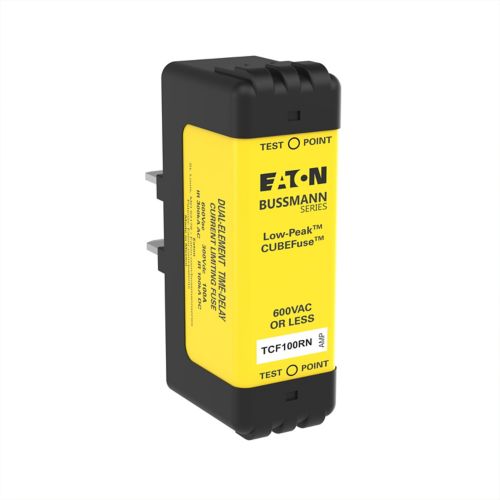

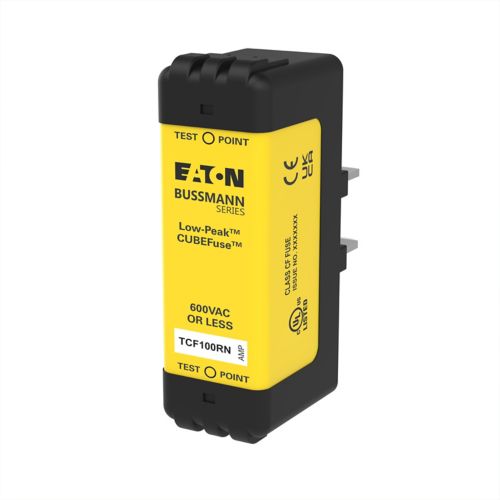

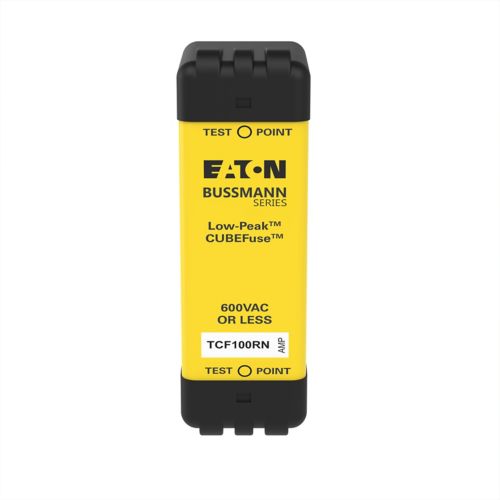

TCF100RN - Eaton Bussmann Series - 100A TCF Fuse
Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 100 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
GENERAL SPECIFICATIONS
| Product Name |
Eaton Bussmann series TCF fuse |
| Catalog Number |
TCF100RN |
| UPC |
051712236195 |
| Product Length/Depth |
3.01 in |
| Product Height |
2.125 in |
| Product Width |
1 in |
| Product Weight |
0.284 lb |
| Warranty |
Not Applicable |
| Compliances |
CE Marked RoHS Compliant |
| Certifications |
UL Listed CSA Certified |
| Product Type |
Fuse |
ELECTRICAL RATING
| Amperage Rating |
100 A |
| Frequency rating - max |
60 Hz |
| Frequency rating - min |
50 Hz |
| Interrupt rating |
300 kAIC at 600 Vac 100 kAIC at 300 Vdc |
| Response time |
10 sec at 500% |
| Voltage rating |
600 Vac, 300 Vdc |
PHYSICAL DETAILS
| Color |
Black |
| Fuse type |
Class CF Time delay |
| Material |
Glass filled PES |
| Number of elements |
Dual |
| Packaging type |
Standard |
GENERAL INFORMATION
| Class |
Class CF |
| Connection |
Blade end |
| Fuse indicator |
Non-indicating |
| Mounting method |
Chassis 35 mm DIN rail |
| Special features |
Finger safe |
| Used with |
TCFH100N, CCP2-3-100CF |
