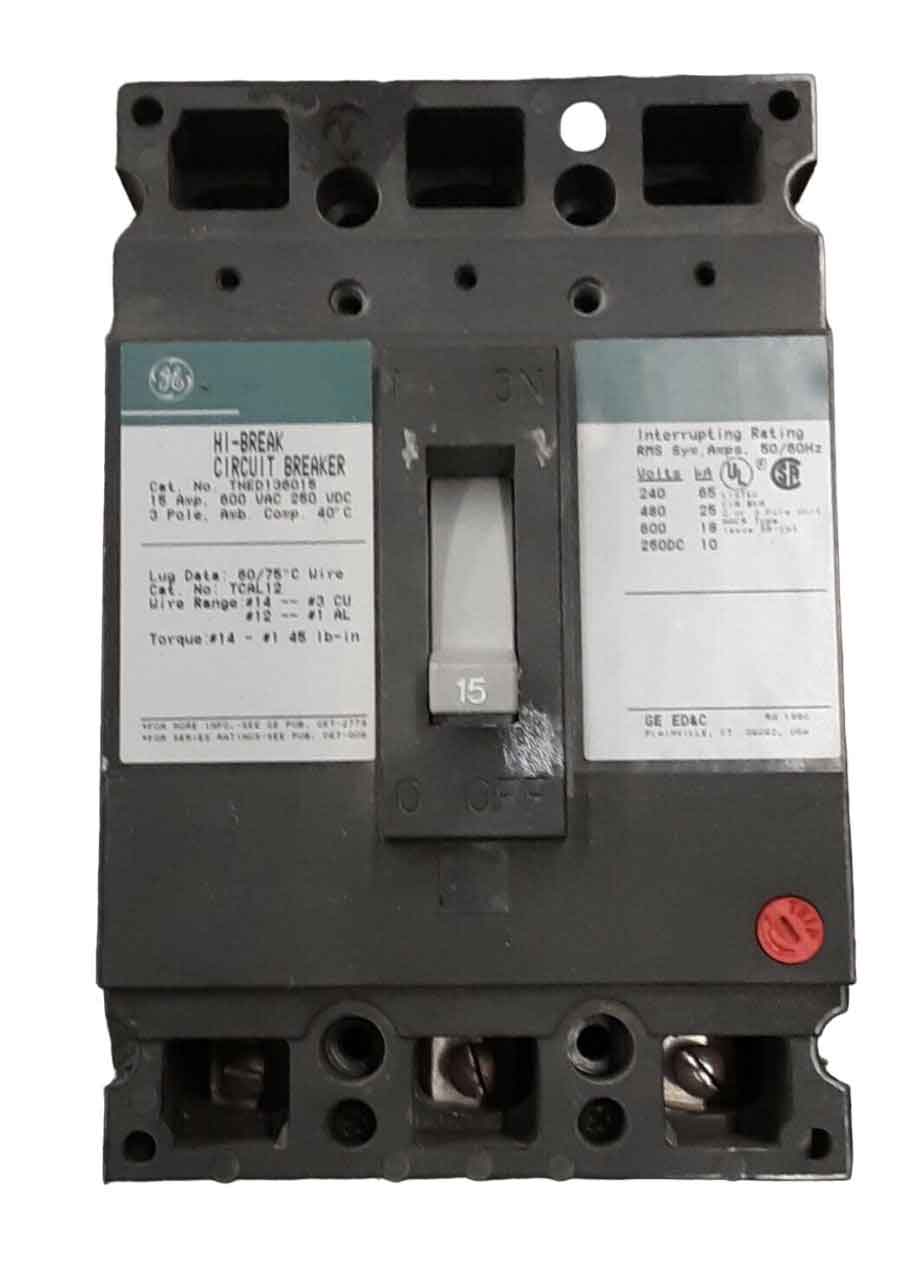

THED136015WL - General Electric - 15 Amp 3 Pole 600 V Circuit Breaker
The THED136015WL is a General Electric (GE) circuit breaker. It's a 3-pole, 15 amp, 600-volt molded case circuit breaker with a 25kA at 480V interrupting capacity. This specific model is from GE's E150 line and features a thermal-magnetic trip unit. The "WL" suffix often indicates a Feed-Thru design, meaning it has line and load side lug terminals, making it suitable for various applications
TECHNICAL SPECIFICATIONS
| Brand | General Electric |
| Series | THED |
| Amperage | 15 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating | 25kAIC at 480V |
| Frame Type | TED |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | THED136015WL-R |
| Upc | 783164062755 |
| Gtin | 783164062755 |
