Description

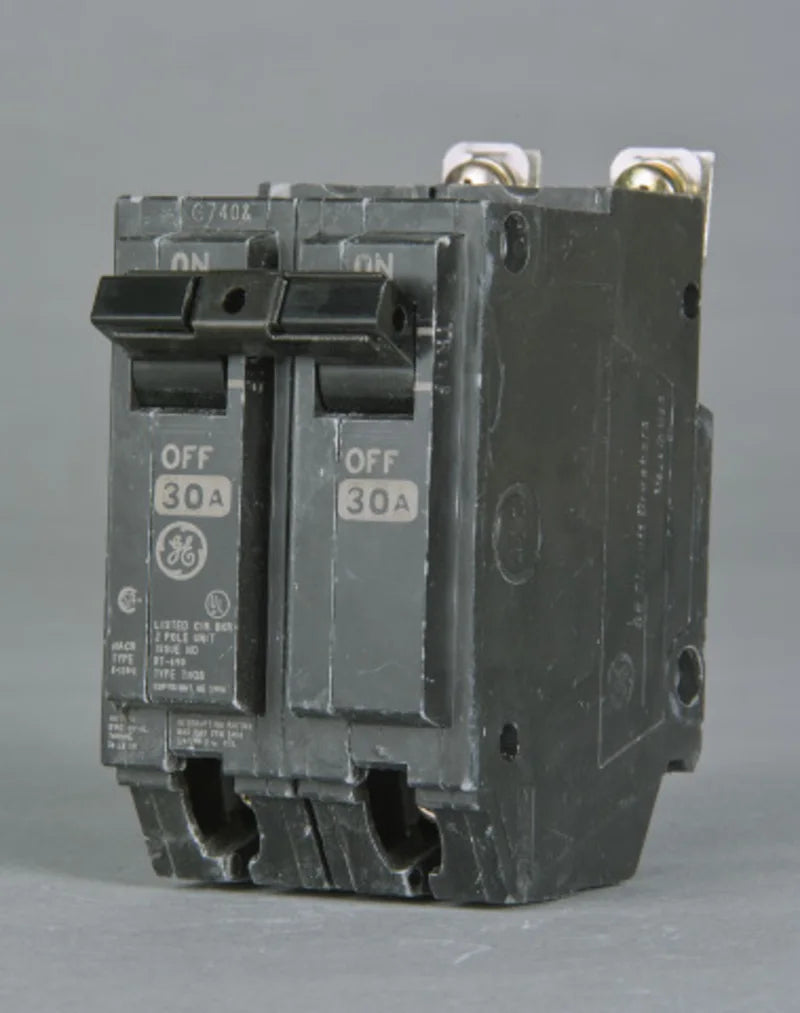

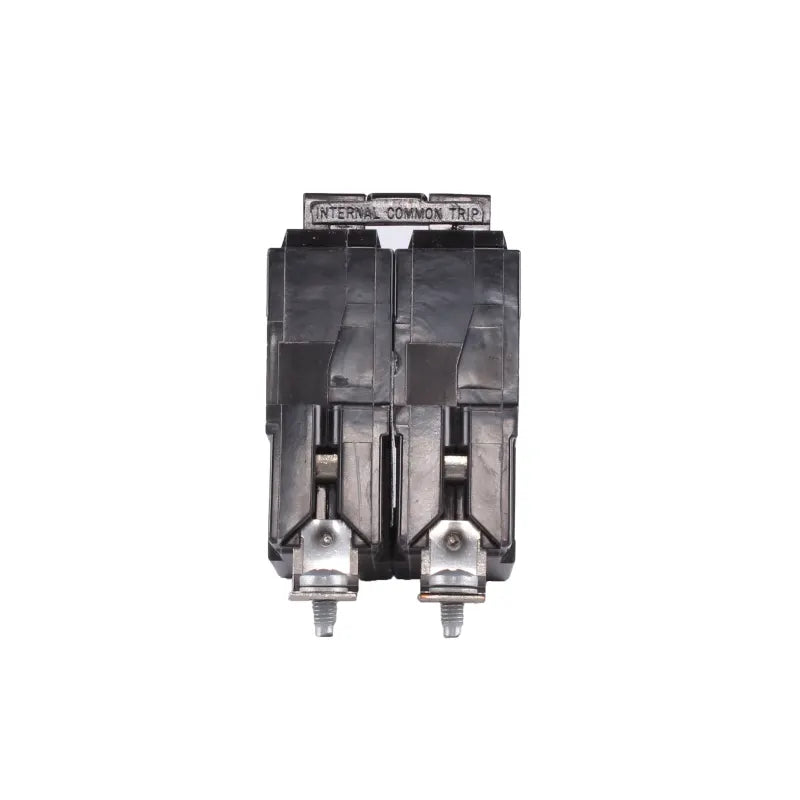

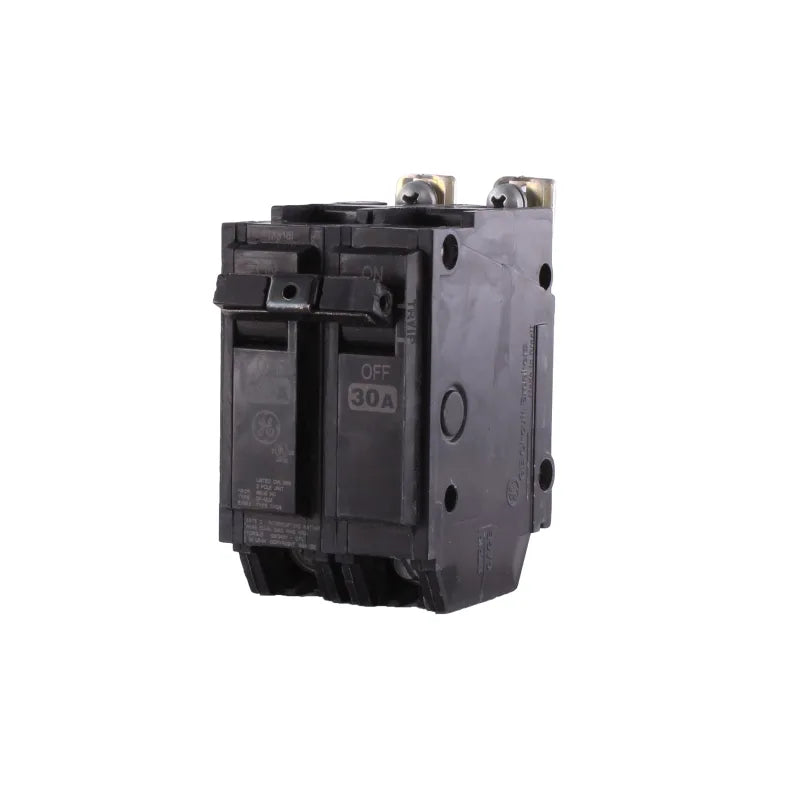

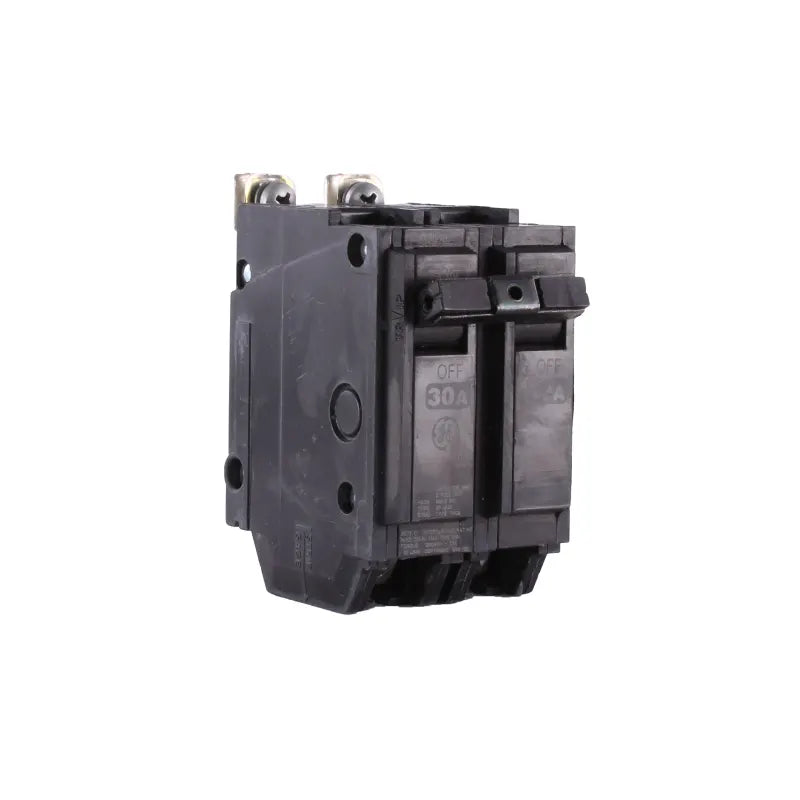

THQB2130 - General Electric - 30 Amp 2 Pole 240 V Circuit Breaker
30 Amp Double Pole Bolt-On Breakerbrbr-Bolt to the bus connections of Load Centers and Lighting Panelsbr/-UL listed HACR (heating, air conditioning and refrigeration).br/-Internal Common TripbrbrQ line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications.
TECHNICAL SPECIFICATIONS
| Type | Type THQB Molded Case |
| Voltage Rating | 120/240 VAC |
| Amperage Rating | 30 A |
| Interrupt Rating | 10 kA |
| Trip Type | Common/LI/Thermal Magnetic |
| Number of Poles | 2 |
| Phase | 1 |
| Wire Size | 14 to 8 AWG, 12 to 8 AWG |
| Mounting Type | Bolted-On |
| Temperature Rating | 40 deg C |
| Dimensions | 3.28 in H x 2 in W x 2.38 in D |
