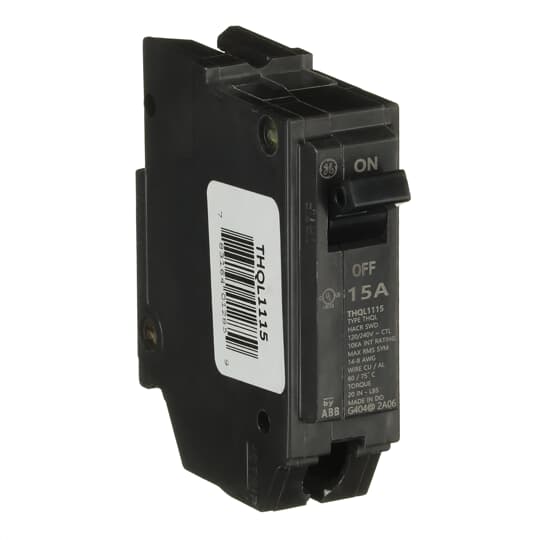

THQL1115 - General Electric - 15 Amp 1 Pole 120 V Circuit Breaker
The ABB THQL1115 is a compact, plug-in, single-pole (15 A) circuit breaker in the Q-Line family, offering reliable overload and short-circuit protection via a thermal-magnetic LI trip mechanism. It supports both 120 VAC and 120/240 VAC systems and boasts a robust 10 kAIC interrupting rating, ensuring safe operation under high-fault conditions. Blade and box lug terminals accommodate 14–8 AWG copper or 12–8 AWG aluminum conductors, while the HACR and SWD designations meet demanding application requirements like HVAC systems and switch duty. Built to UL and GSA standards, its quick-make/quick-break switching and clear trip indication contribute to user safety and operational convenience. Ideal for residential and light commercial panels, it's a reliable choice for efficient breaker performance in constrained spaces.
TECHNICAL SPECIFICATIONS
Descriptors
|
Category |
Q-Line Miniature Circuit Breakers |
|
Product Line |
Q-Line (Plug-In) |
|
GO Schedule |
R5 |
Specifications
|
Trip Style |
Non-Interchangeable |
|
Frame Type |
Q-Line |
|
Amperage |
15 |
|
System Voltage |
120 Vac |
|
Poles |
1 |
|
Trip Function |
LI |
|
Continuous Current Rated |
Standard |
|
120 Vac Interrupting Rating |
10 KAIC |
|
120/240 Vac Interrupting Rating |
10 KAIC |
|
Suitable for Reverse Feed |
Yes |
|
Long Time |
Fixed |
|
Instantaneous |
Fixed |
|
Protective Relays |
No |
|
Current Metering |
No |
|
Special Markings |
HACR |
|
GSA Compliance |
Yes |
Classifications
|
UL File # |
E11592 |
