Description

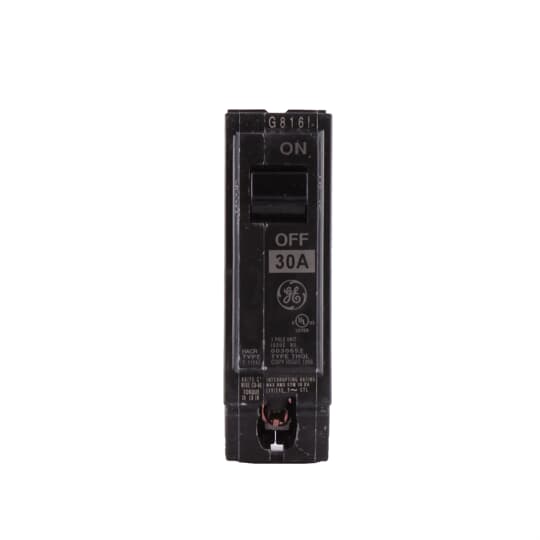

THQL1130 - General Electric - 30 Amp 1 Pole 120 V Circuit Breaker
ABB THQL1130 - A compact, single-pole (1 P) 30 A Q-Line thermal-magnetic circuit breaker. It’s designed for 120/240 VAC residential and light commercial applications, features a 10 kA interrupting rating, plug-in mount compatible with standard load centers, and includes quick-make/quick-break switching, tin-plated stabs, and easy-to-spot trip indication. Rated for copper wire (14–8 AWG) and aluminum (12–8 AWG), it’s UL-listed, HACR-marked, suitable for reverse feed, and GSA/ANSI/NEMA compliant.
TECHNICAL SPECIFICATIONS
Descriptors
|
Category |
Q-Line Miniature Circuit Breakers |
|
Product Line |
Q-Line (Plug-In) |
|
GO Schedule |
R5 |
Specifications
|
Trip Style |
Non-Interchangeable |
|
Frame Type |
Q-Line |
|
Amperage |
30 |
|
System Voltage |
120 Vac |
|
Poles |
1 |
|
Trip Function |
LI |
|
Continuous Current Rated |
Standard |
|
120 Vac Interrupting Rating |
10 KAIC |
|
120/240 Vac Interrupting Rating |
10 KAIC |
|
Suitable for Reverse Feed |
Yes |
|
Long Time |
Fixed |
|
Instantaneous |
Fixed |
|
Protective Relays |
No |
|
Current Metering |
No |
|
Special Markings |
HACR |
|
GSA Compliance |
Yes |
Classifications
|
UL File # |
E11592 |
