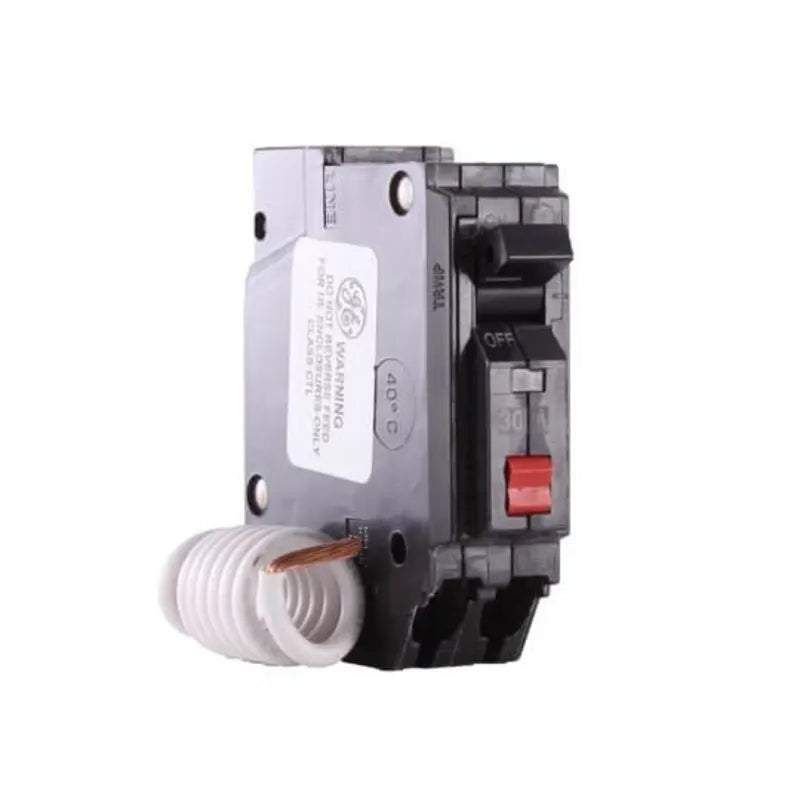

THQL1130GFT - General Electric - 30 Amp 1 Pole 120 V Circuit Breaker
Ground fault circuit interrupter (GFCI) breakers provide protection of receptacles located in the outdoors, in bathrooms, garages and spa areas. This applies to not only to new construction, but also to existing homes. When an electrical outlet is replaced in a location that requires ground-fault protection, the new outlet must be GFCI approved according to the NEC. All Q Line circuit breakers are one inch wide per pole, compact devices that feature: Quick-make / Quick-break mechanisms, common trip bars, and easy-to-spot trip indications to ensure safety and reliability as well as meets 2020 NEC standards. The THQL1130GFT breaker features ground fault interrupting technology, 1 pole, an ampere rating of 30 A, an interrupting rating of 10kAIC, and a voltage rating of 120/240V.
TECHNICAL SPECIFICATIONS
| Type | Type THQL Model 3 Self-Test |
| Voltage Rating | 120 VAC |
| Amperage Rating | 30 A |
| Interrupt Rating | 10 kA |
| Frame | Q-Line |
| Trip Type | Fixed Thermal Magnetic/Non-Interchangeable/LIG |
| Trip Range | 5 mA |
| Number of Poles | 1 |
| Phase | 1 |
| Wire Size | 14 to 8 AWG Cu, 12 to 8 AWG Al |
| Mounting Type | Plug-In |
| Dimensions | 3-9/32 in H x 1 in W x 2-3/8 in D |
