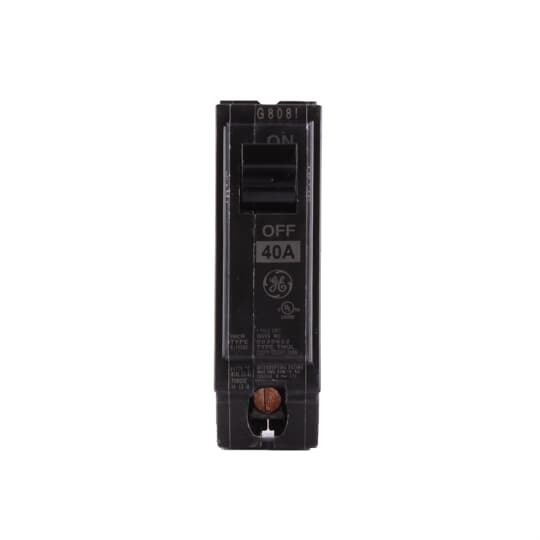

THQL1140 - General Electric - 40 Amp 1 Pole 120 V Circuit Breaker
Description:THQL 1 POLE 120/240V 10K IC 40 AMP
UPC:783164012880
ABB THQL1140 - A single-pole, 40 A thermal-magnetic circuit breaker in the compact Q-Line frame. Rated for both 120 VAC and 120/240 VAC systems, it delivers a solid 10 kA interrupting capacity. Designed for plug-in installation, this breaker features a 1-inch form factor per pole, quick-make/quick-break switching, common trip bar, and clear trip indication for reliable, user-friendly operation. Compatible with copper and aluminum wiring and HACR-rated for HVAC applications.
TECHNICAL SPECIFICATIONS
Descriptors
Category |
Q-Line Miniature Circuit Breakers |
Product Line |
Q-Line (Plug-In) |
GO Schedule |
R5 |
Specifications
Trip Style |
Non-Interchangeable |
Frame Type |
Q-Line |
Amperage |
40 |
System Voltage |
120 Vac |
Poles |
1 |
Trip Function |
LI |
Continuous Current Rated |
Standard |
120 Vac Interrupting Rating |
10 KAIC |
120/240 Vac Interrupting Rating |
10 KAIC |
Suitable for Reverse Feed |
Yes |
Long Time |
Fixed |
Instantaneous |
Fixed |
Protective Relays |
No |
Current Metering |
No |
Special Markings |
HACR |
GSA Compliance |
Yes |
Classifications
UL File # |
E11592 |
