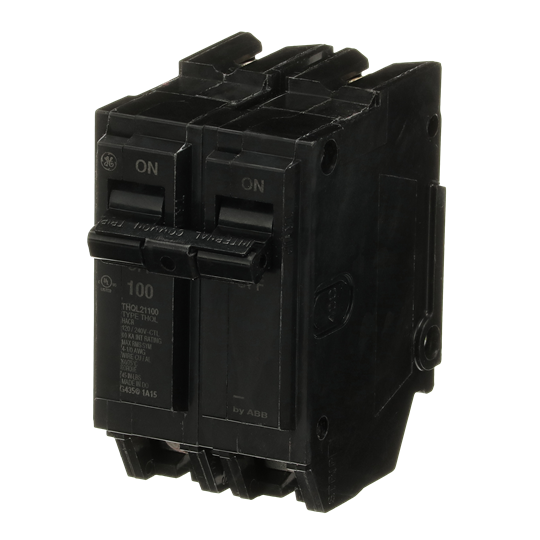

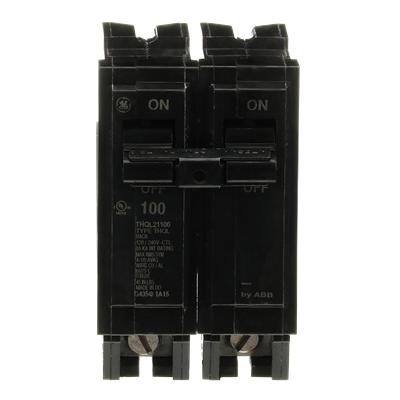

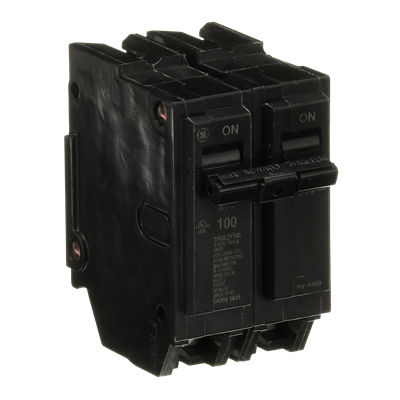

THQL21100 - General Electric - 100 Amp 2 Pole 240 V Circuit Breaker
Description:THQL CIRCUIT BREAKER 2 POLE
UPC:783164099232
ABB THQL21100 - A compact, 2-pole, 100 A thermal-magnetic (LI) circuit breaker designed for 120/240 VAC systems. It offers a 10 kA interrupting capacity, plug-in Q-Line mounting, reverse-feed capability, and HACR marking for HVAC usage, with GSA compliance.
TECHNICAL SPECIFICATIONS
Descriptors
Category |
Q-Line Miniature Circuit Breakers |
Product Line |
Q-Line (Plug-In) |
GO Schedule |
R5 |
Specifications
Trip Style |
Non-Interchangeable |
Frame Type |
Q-Line |
Amperage |
100 |
System Voltage |
120 Vac |
Poles |
2 |
Trip Function |
LI |
Continuous Current Rated |
Standard |
120 Vac Interrupting Rating |
10 KAIC |
120/240 Vac Interrupting Rating |
10 KAIC |
Suitable for Reverse Feed |
Yes |
Long Time |
Fixed |
Instantaneous |
Fixed |
Protective Relays |
No |
Current Metering |
No |
Special Markings |
HACR |
GSA Compliance |
Yes |
Classifications
UL File # |
E11592 |
