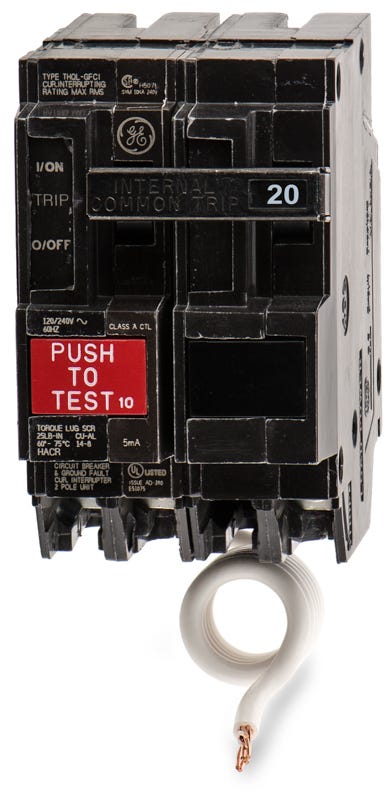

THQL2120GF1 - General Electric - 20 Amp 2-Pole 120/240V THQL GFCI Circuit Breaker 10kAIC Plug-In
THQL2120GF1 is a General Electric 20 Amp, 2-pole, 120/240 Volt THQL series ground fault circuit breaker designed for residential and commercial use.This plug-in type circuit breaker features thermal magnetic trip functions with ground fault protection, a 10,000 Amp interrupt rating, and is UL listed and CSA approved. It fits GE Q-Line load centers and provides reliable corrosion-resistant connections with tin-plated copper stabs.
TECHNICAL SPECIFICATIONS
| Amperage | 20 Amp |
| Voltage | 120/240 Volt AC |
| Poles | 2 |
| Frame Type | THQL |
| Interrupt Rating | 10,000 Amps |
| Trip Unit | Thermal Magnetic with Ground Fault |
| Mounting Type | Plug-In |
| Trip Sensitivity | 5 mA Ground Fault |
| Phase | Single Phase |
| Certifications | UL Listed, CSA Approved |
| Dimensions | Approximately 3" H x 2" W x 3" D |
| Part Number | THQL2120GF1 |
| Manufacturer | General Electric |
| Category | Circuit Breaker |
| Item Subcategory | Molded Case |
| Voltage | 240 |
| Amperage | 20 |
| Phase | 1 |
| Poles | 2 |
| AIC rating | 10kA@120V |
| Connection | Plug-In |
| Functions | LI - Long-Time and Instantaneous Trip |
| Protection | Thermal Magnetic |
| UPC | 783164485349 |
| Weight | 5.19 |
