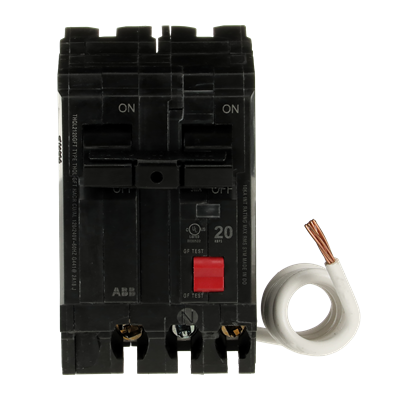

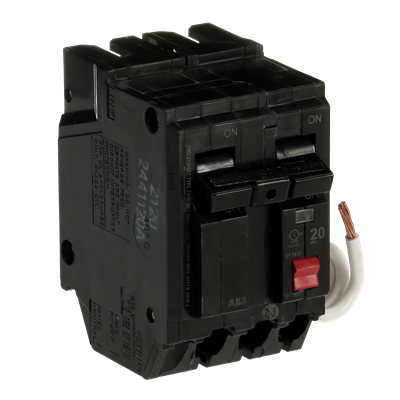

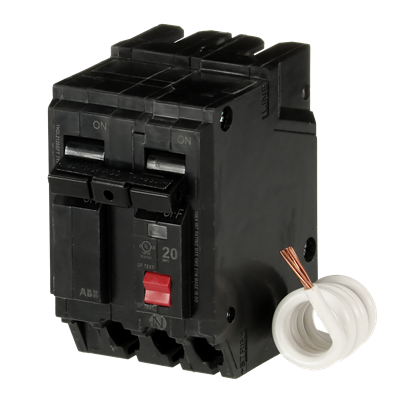

THQL2120GFT - General Electric - 20 Amp 2 Pole 240 Volt Ground Fault Circuit Breaker Q-Line Series
Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms,common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications.
TECHNICAL SPECIFICATIONS
General Information
| Global Commercial Alias |
THQL2120GFT |
| Extended Product Type |
THQL2120GFT |
| Product ID |
1TQQ021020X2000 |
| EAN |
783164485349 |
| Catalog Description |
THQL 2P 120V 20A GFT |
Material Compliance
| Conflict Minerals Reporting Template (CMRT) |
Conflict Minerals Reporting Template |
| WEEE Category |
Product Not in WEEE Scope |
Dimensions
| Product Net Width |
2 in |
| Product Net Height |
2.92 in |
| Product Net Depth / Length |
3.28 in |
| Product Net Weight |
11.49 oz |
Ordering
| Package Level 1 Units |
box 1 piece |
| Package Level 1 Gross Weight |
12.59 oz |
External Classifications and Standards
| ETIM 9 |
EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 |
EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| UNSPSC |
39121601 |
| eClass |
V11.0 : 27370409 |
| IDEA Granular Category Code (IGCC) |
4835 >> 2 Pole Ground Fault Gfci Plug-In Circuit Breakers |
PRODUCT DATASHEET
THQL2120GFT
