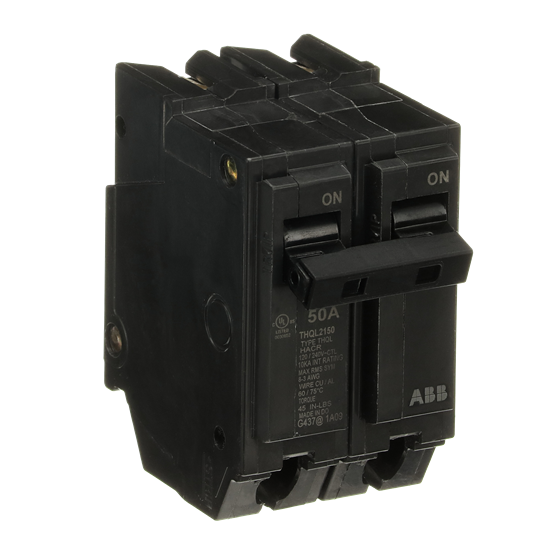

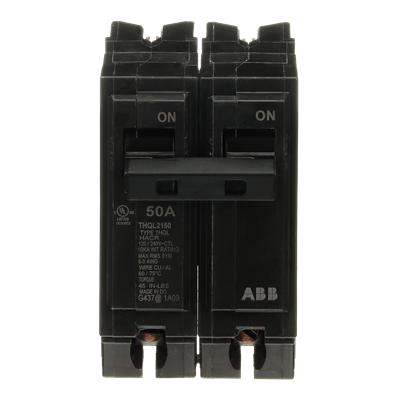

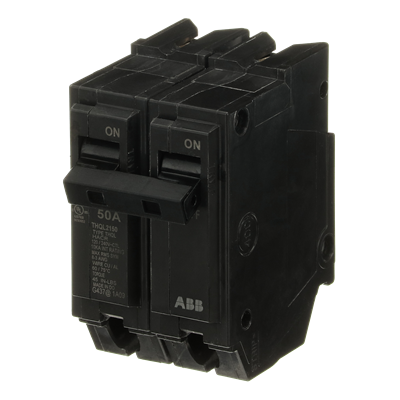

THQL2150 - General Electric - 50 Amp 2 Pole 240 V Circuit Breaker
Description:THQL 2 POLE 120/240V 10K IC 50AMP
UPC:783164012941
This 2-pole, 50 A Q-Line circuit breaker operates at 120/240 V with a 10 kA interrupting rating. It supports plug-in installation, reverse-feed capability, and is HACR-rated-built for safe HVAC and general-purpose applications.
TECHNICAL SPECIFICATIONS
Descriptors
Category |
Q-Line Miniature Circuit Breakers |
Product Line |
Q-Line (Plug-In) |
GO Schedule |
R5 |
Specifications
Trip Style |
Non-Interchangeable |
Frame Type |
Q-Line |
Amperage |
50 |
System Voltage |
120 Vac |
Poles |
2 |
Trip Function |
LI |
Continuous Current Rated |
Standard |
120 Vac Interrupting Rating |
10 KAIC |
120/240 Vac Interrupting Rating |
10 KAIC |
Suitable for Reverse Feed |
Yes |
Long Time |
Fixed |
Instantaneous |
Fixed |
Protective Relays |
No |
Current Metering |
No |
Special Markings |
HACR |
GSA Compliance |
No |
Classifications
UL File # |
E11592 |
