Description

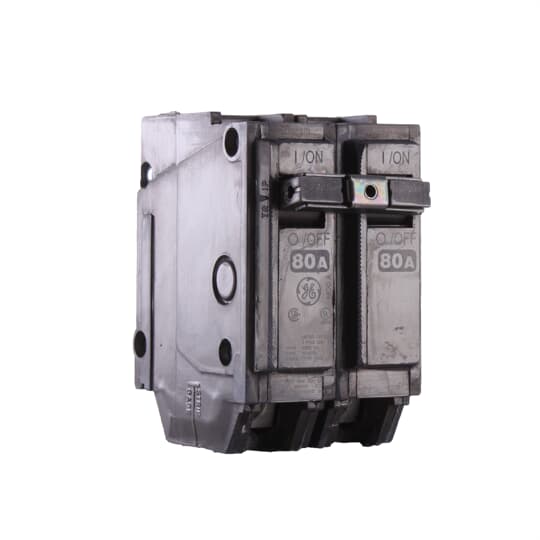

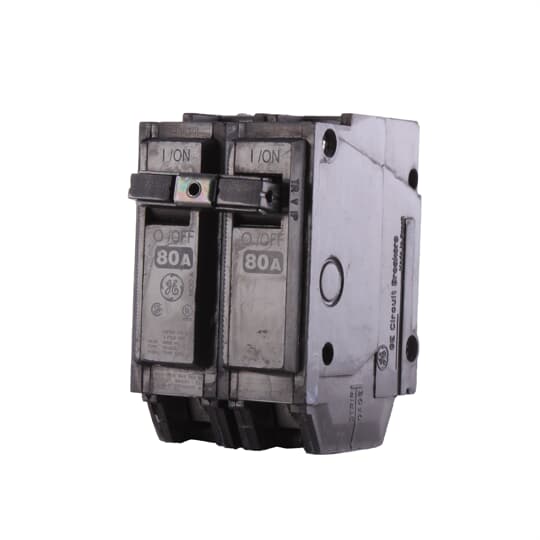

THQL2180 - General Electric - 80 Amp 2 Pole 240 V Circuit Breaker
Description: THQL 2 POLE 120/240V 10K IC 80 AMP
UPC: 783164099218
A 2-pole, 80 A thermal-magnetic Q-Line molded-case breaker for 120/240 V. Built for plug-in load centers, it delivers ample protection for heavy branch circuits in a compact form.
TECHNICAL SPECIFICATIONS
Descriptors
|
Category |
Q-Line Miniature Circuit Breakers |
|
Product Line |
Q-Line (Plug-In) |
|
GO Schedule |
R5 |
Specifications
|
Trip Style |
Non-Interchangeable |
|
Frame Type |
Q-Line |
|
Amperage |
80 |
|
System Voltage |
120 Vac |
|
Poles |
2 |
|
Trip Function |
LI |
|
Continuous Current Rated |
Standard |
|
120 Vac Interrupting Rating |
10 KAIC |
|
120/240 Vac Interrupting Rating |
10 KAIC |
|
Suitable for Reverse Feed |
Yes |
|
Long Time |
Fixed |
|
Instantaneous |
Fixed |
|
Protective Relays |
No |
|
Current Metering |
No |
|
Special Markings |
HACR |
|
GSA Compliance |
Yes |
Classifications
|
UL File # |
E11592 |
