Description

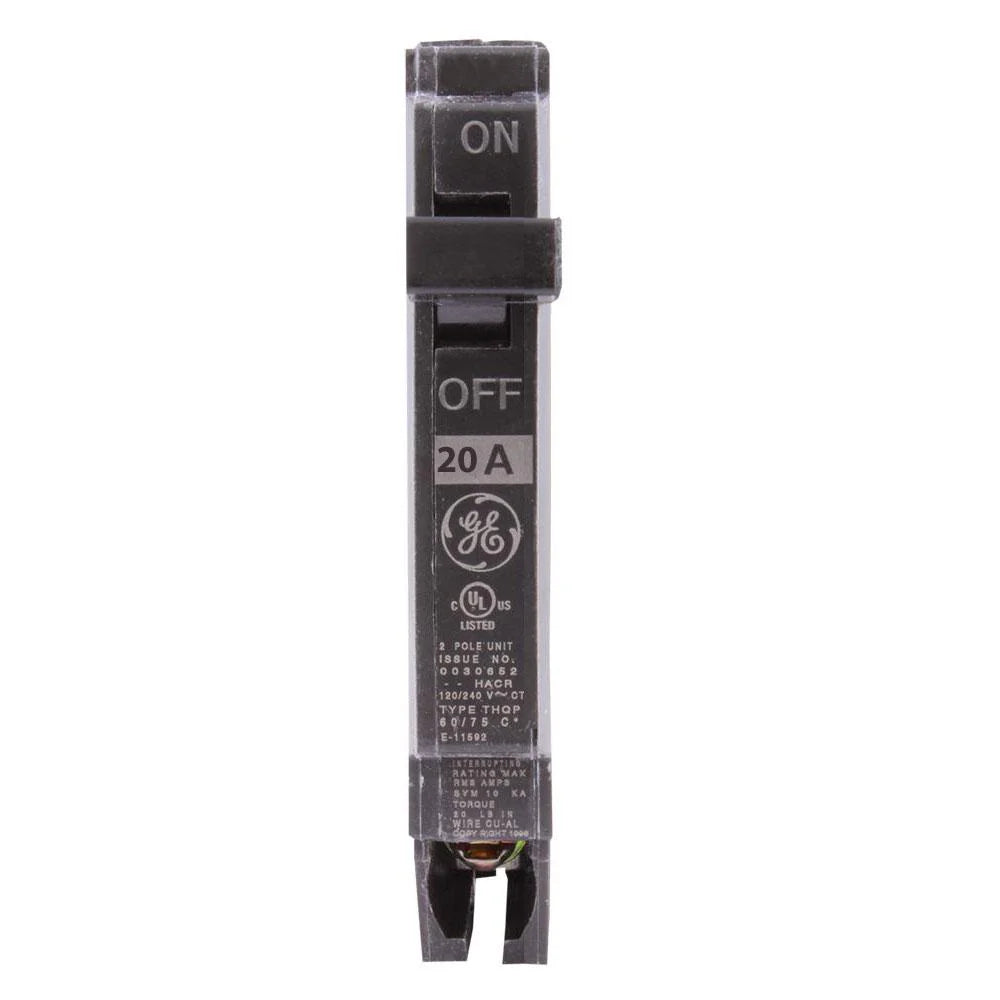

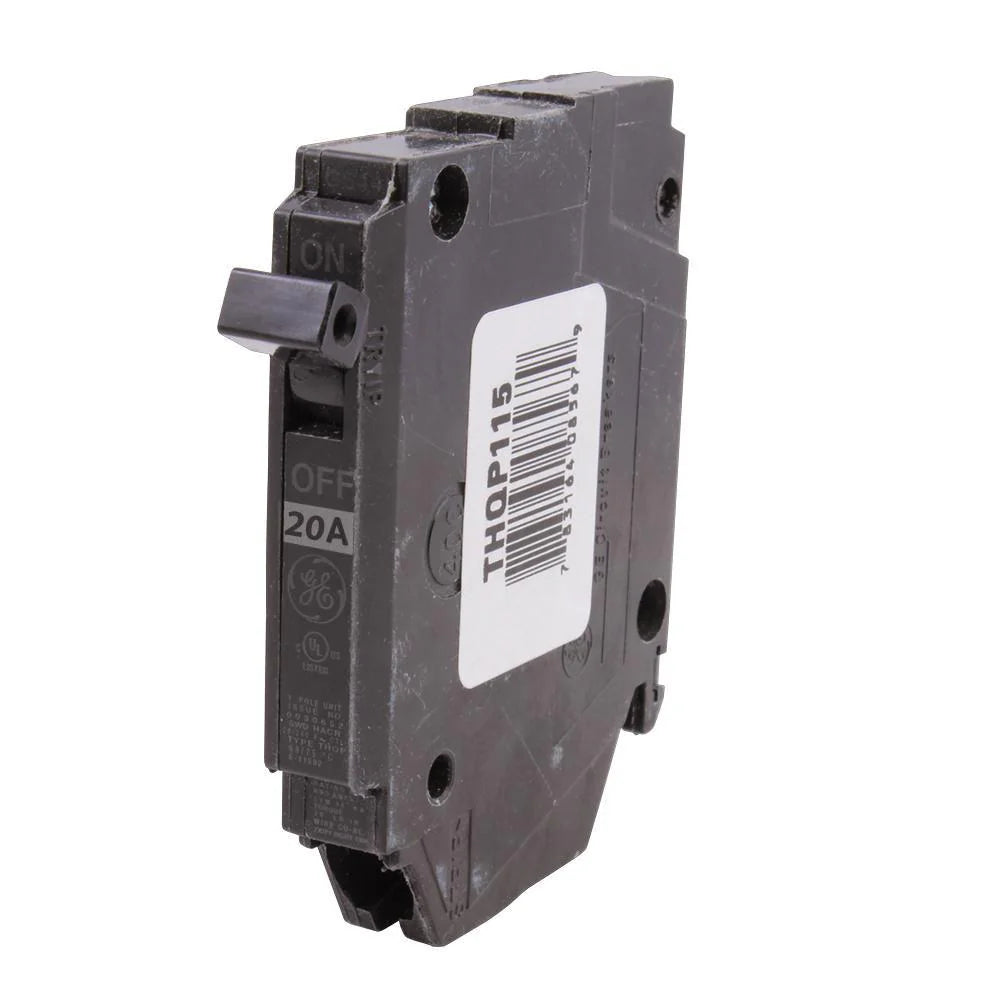

THQP120 - General Electric - 20 Amp 1 Pole 240 V Circuit Breaker
The General Electric THQP120 is a Molded Case Circuit Breaker. This type THQP circuit breaker is a member of The Q-Line family. The THQP120 is a 1 pole, 240 Volt, 20 amp rated circuit breaker, with an AIC rating of 10kA@120V. The THQP120 is manufactured by Emery Jensen Distribution LLC. The THQP120 uses a Plug-In connection. Includes Thermal Magnetic protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
TECHNICAL SPECIFICATIONS
| Product Number | 6108 |
| Manufacture Name | General Electric Company |
| Categories | Plug-In Circuit Breakers |
| UPC Code | 78316408568 |
| Category | Plug-In Circuit Breakers |
| Approval | UL |
| Current Rating | 20 Amp |
| CUSTOMER Description | THQP120 GE 1P20A THIN PLUG-IN CIRC |
| Frame Type | Q-Line |
| Interrupting Rating | 10 Kiloamp at 120/240 Volt AC |
| Invoice Description | 1P 20A 120V PLUG-IN CB |
| Manufacturer Name | GEE |
| Maximum AC Voltage Rating | 240 Volt |
| Number Of Poles | 1 |
| Product Name | Circuit Breaker |
| Size | 1/2 Inch Width |
| Terminal Type | Plug-In |
| Type | Thermal Magnetic |
| UPC | 783164085686 |
