Description

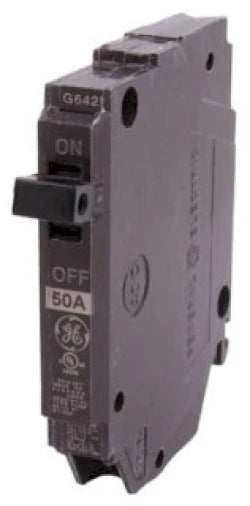

THQP150 - General Electric - 50 Amp 1 Pole 240 V Circuit Breaker
The GE THQP150 is a Molded Case Circuit Breaker. This type THQP circuit breaker is a member of The Q-Line family. The THQP150 is a 1 pole, 240 Volt, 50 amp rated circuit breaker, with an AIC rating of 10kA@120V. The THQP150 is manufactured by General Electric. The THQP150 uses a Plug-In connection. Includes Thermal Magnetic protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
TECHNICAL SPECIFICATIONS
| Product Number | 53643 |
| Manufacture Name | General Electric Company |
| Categories | Electrical & DataCom |
| UPC Code | 78316413447 |
| Marketing Information | Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. |
| Approval | UL |
| Current Rating | 50 Amp |
| CUSTOMER Description | GE THQP150 1P 50A 120V PLUG-IN CB |
| Frame Type | Q-Line |
| Interrupting Rating | 10 Kiloamp at 120/240 Volt AC |
| Invoice Description | 1P 50A 120V PLUG-IN CB |
| Manufacturer Name | GEE |
| Maximum AC Voltage Rating | 240 Volt |
| Number Of Poles | 1 |
| Product Name | Non-Interchangeable Circuit Breaker |
| Size | 1/2 Inch Width |
| Terminal Type | Plug-In |
| Type | Thermal Magnetic |
| UPC | 783164134476 |
