Description

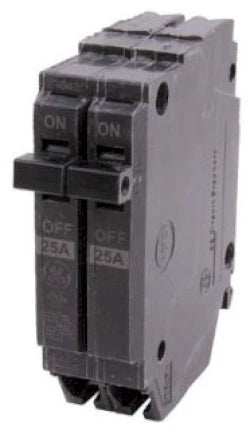

THQP225 - General Electric - 25 Amp 2 Pole 120 V Circuit Breaker
The General Electric THQP225 is a Molded Case Circuit Breaker. This type THQP circuit breaker is a member of The Q-Line family. The THQP225 is a 2 pole, 120 Volt, 25 amp rated circuit breaker, with an AIC rating of 10kA@120V. The THQP225 is manufactured by General Electric. The THQP225 uses a Plug-In connection. Includes Thermal Magnetic protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
TECHNICAL SPECIFICATIONS
| Product Number | 50917 |
| Manufacture Name | General Electric Company |
| Categories | Electrical & DataCom |
| UPC Code | 78316408566 |
| Approval | UL |
| Current Rating | 25 Amp |
| Brand Name | BuyLog |
| CUSTOMER Description | GE THQP225 2P 25A 120/240 PLG-IN CB |
| Frame Type | Q-Line |
| Interrupting Rating | 10 Kiloamp at 120/240 Volt AC |
| Invoice Description | 2P 25A 120/240 PLG-IN CB |
| Manufacturer Name | GEE |
| Maximum AC Voltage Rating | 240 Volt |
| Number Of Poles | 2 |
| Product Name | Feeder Molded Case Circuit Breaker |
| Size | 1/2 Inch Width |
| Terminal Type | Plug-In |
| Type | Thermal Magnetic |
| UPC | 783164085662 |
PRODUCT DATASHEET
