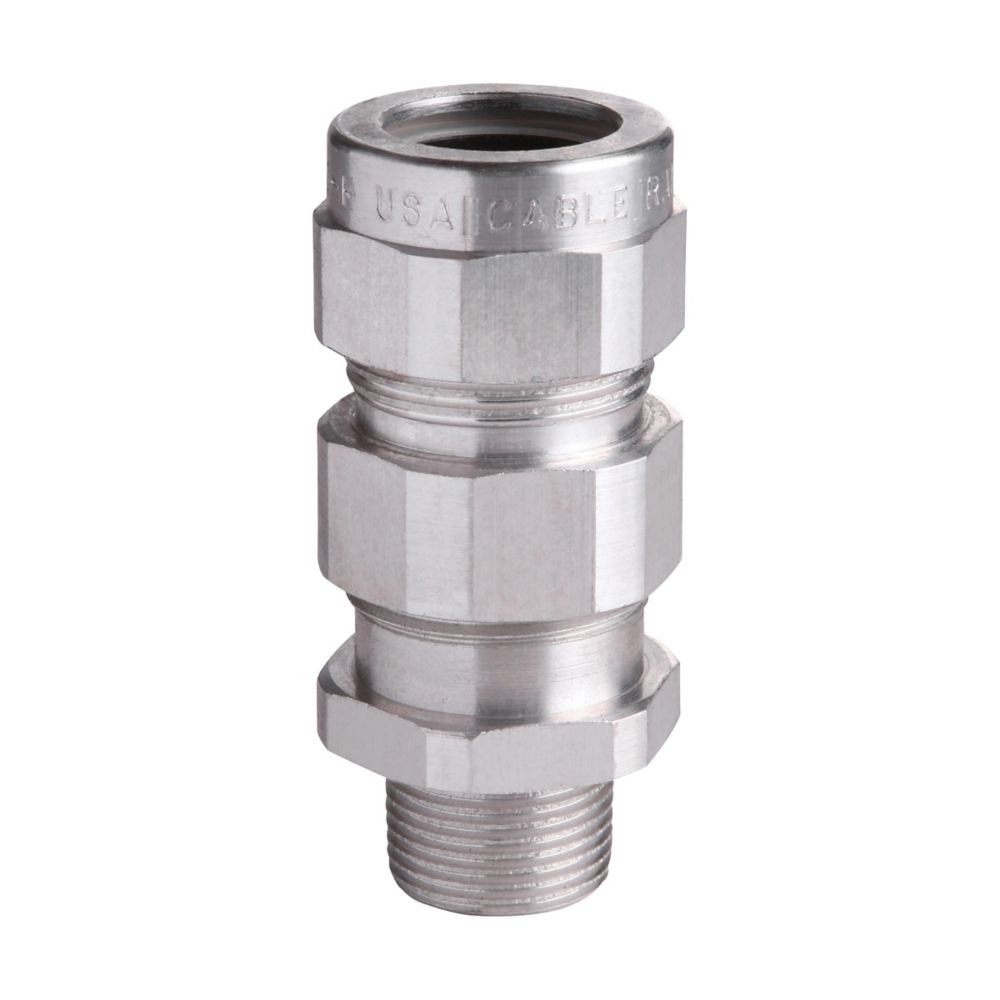

TMC10402 - Eaton Crouse-Hinds Series - 4" Npt General Purpose TMC Cable Gland
The Eaton Crouse-Hinds series TMC10402 is a premium armored cable gland designed for general-purpose applications. Suitable for metal-clad, TECK corrugated or interlocked steel, and aluminum cables, it features a 4" NPT trade size with cable openings of 3.5 to 4.02 inches. Constructed from durable aluminum, it ensures reliable protection and performance.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series TMC cable gland |
| Catalog Number |
TMC10402 |
| UPC |
782274414645 |
| Product Length/Depth |
7.13 in |
| Product Height |
5.88 in |
| Product Width |
5.88 in |
| Product Weight |
5.9 lb |
PRODUCT SPECIFICATIONS
| Protection type |
General purpose |
| Cable type |
Metal-clad, TECK corrugated or interlocked steel, or aluminum |
| Gland type |
Armoured |
| Material |
Aluminum |
| Thread Size |
4" |
| Thread type |
NPT |
| Armor (min/max) |
3.50-4.02" |
| Outer sheath (min/max) |
3.58-4.28" |
PRODUCT DATASHEET
