Description

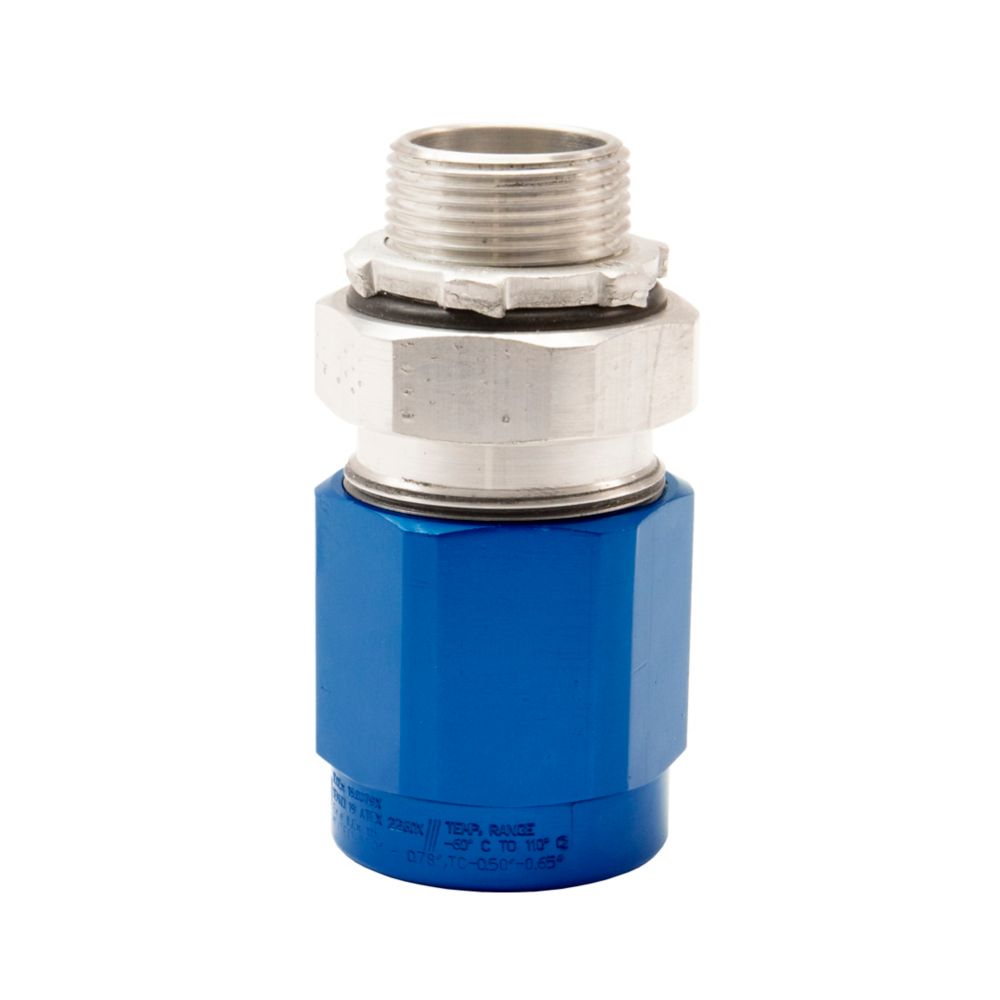

TMC30500 - Eaton Crouse-Hinds Series - 1/2" TMC3 Cable Gland
Eaton Crouse-Hinds series TMC3 cable gland, 0.452" - 0.660" armor min./max., Armoured and non-armoured, Aluminum, 0.50-0.78" outer sheath min./max., Industrial protection, 1/2" NPT
GENERAL SPECIFICATIONS
| Product Name | Eaton Crouse-Hinds series TMC3 cable gland |
| Catalog Number | TMC3-050-0 |
| UPC | 662276887978 |
| Product Length/Depth | 3.3 in |
| Product Height | 1.38 in |
| Product Width | 1.38 in |
| Product Weight | 0.25 lb |
| Product Type | Cable gland |
PRODUCT SPECIFICATIONS
| Protection type | Industrial |
| Gland type | Armoured and non-armoured |
| Cable type | MC MC-HL TECK TC TC-ER TC-ER-HL ITC ITC-ER ITC-HL PLTC PLTC-ER ACIC |
| Material | Aluminum |
| Thread Size | 1/2" |
| Thread type | NPT |
| Armor (min/max) | 0.452" - 0.660" |
| Cable range (min/max) | 0.55" - 0.78" |
| Outer sheath (min/max) | 0.50-0.78" |
