Description

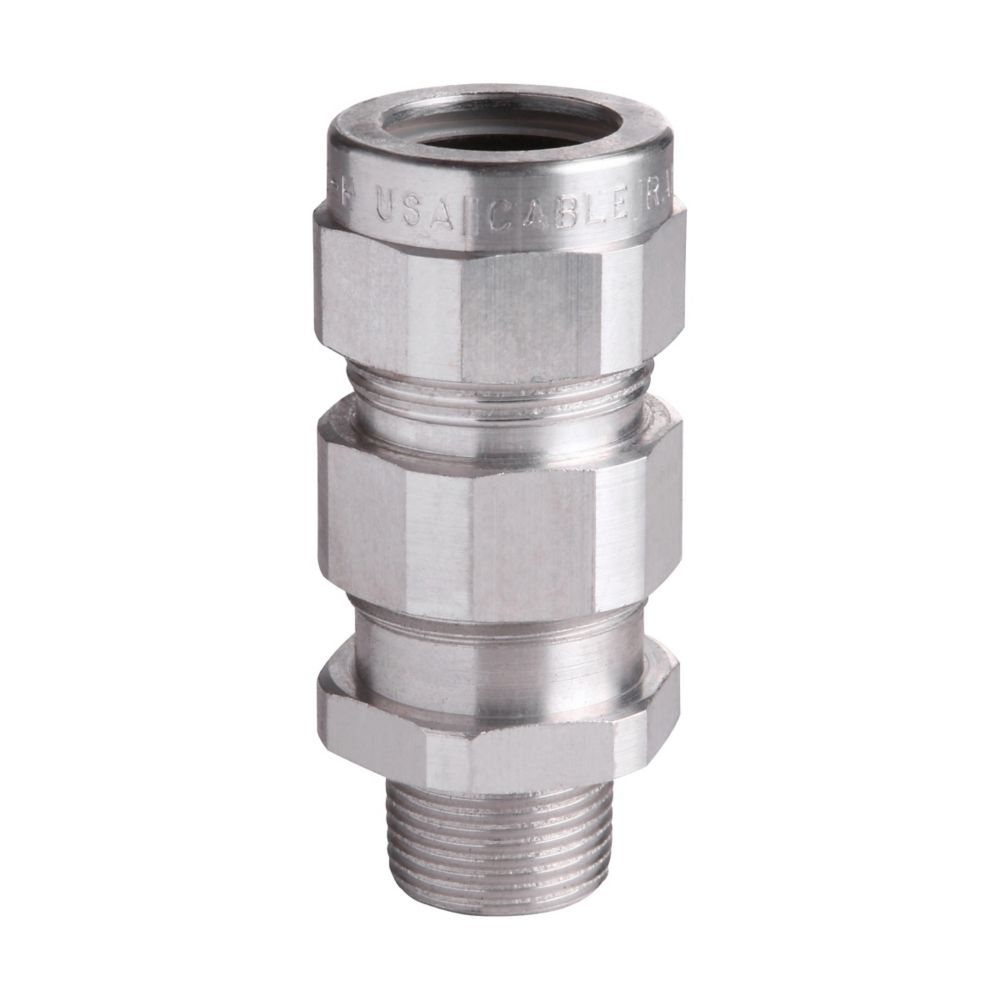

TMC7247 - Eaton Crouse-Hinds Series - 2-1/2" TMC Cable Gland
Eaton Crouse-Hinds series TMC cable gland, Metal-clad, TECK corrugated or interlocked steel, or aluminum, Armoured, Aluminum, Outer sheath: 1.99-2.72", General purpose, 2-1/2" NPT, Armor range: 1.93-2.47"
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series TMC cable gland
|
| Catalog Number |
TMC7247
|
| UPC |
782274414614
|
| Product Length/Depth |
6.19 in
|
| Product Height |
4 in
|
| Product Width |
4 in
|
| Product Weight |
3 lb
|
| Product Type |
Cable gland
|
PRODUCT SPECIFICATIONS
| Protection type |
General purpose
|
| Cable type |
Metal-clad, TECK corrugated or interlocked steel, or aluminum
|
| Gland type |
Armoured
|
| Material |
Aluminum
|
| Thread Size |
2-1/2"
|
| Thread type |
NPT
|
| Armor (min/max) |
1.93-2.47"
|
| Outer sheath (min/max) |
1.99-2.72"
|
