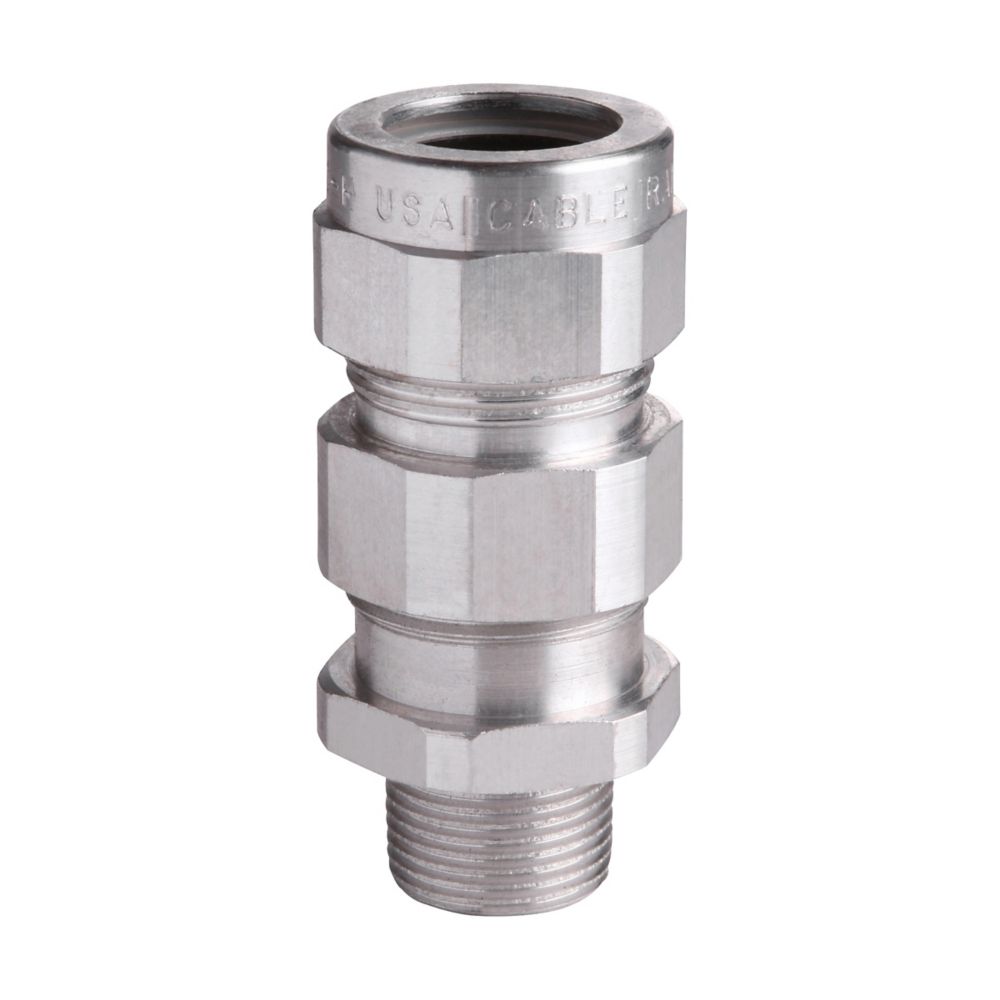

TMC8302 - Eaton Crouse-Hinds Series - 3" TMC Cable Gland
Eaton Crouse-Hinds series TMC cable gland, Metal-clad, TECK corrugated or interlocked steel, or aluminum, Armoured, Aluminum, Outer sheath: 2.52-3.28", General purpose, 3" NPT, Armor range: 2.45-3.02"
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series TMC cable gland |
| Catalog Number |
TMC8302 |
| UPC |
782274414621 |
| Product Length/Depth |
6.32 in |
| Product Height |
4.88 in |
| Product Width |
4.88 in |
| Product Weight |
4.4 lb |
| Product Type |
Cable gland |
PRODUCT SPECIFICATIONS
| Protection type |
General purpose |
| Cable type |
Metal-clad, TECK corrugated or interlocked steel, or aluminum |
| Gland type |
Armoured |
| Material |
Aluminum |
| Thread Size |
3" |
| Thread type |
NPT |
| Armor (min/max) |
2.45-3.02" |
| Outer sheath (min/max) |
2.52-3.28" |
